Name: SJK-7U 8MHz SMD3225 Quartz Crystal Unit High Precision And Stability Appication For Indusrtial Control
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK 7U SMD3225 8MHz Quartz Crystal
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK 7U SMD3225 8MHz Quartz Crystal
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

SJK-7U SMD3225 Quartz Crystal

Overtone Order:

Fundamental

Nomainal Frequency:

8MHz

Frequency Tolerance:

+/-10ppm

Load Capacitance:

12pF

Drive Level:

100uW

Equivalent Series Resistance:

150Ω Max

Operating Temperature:

-40°C To +85°C

Storage Temperature Range:

-55°C To +125°C

Size:

3.2*2.5*0.7mm

Aging:

+/-3ppm/year

Green Product:

RoHS Compliant /Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

8MHz SMD3225 Quartz Crystal Unit

High Precision SMD3225 Quartz Crystal Unit

Product Description

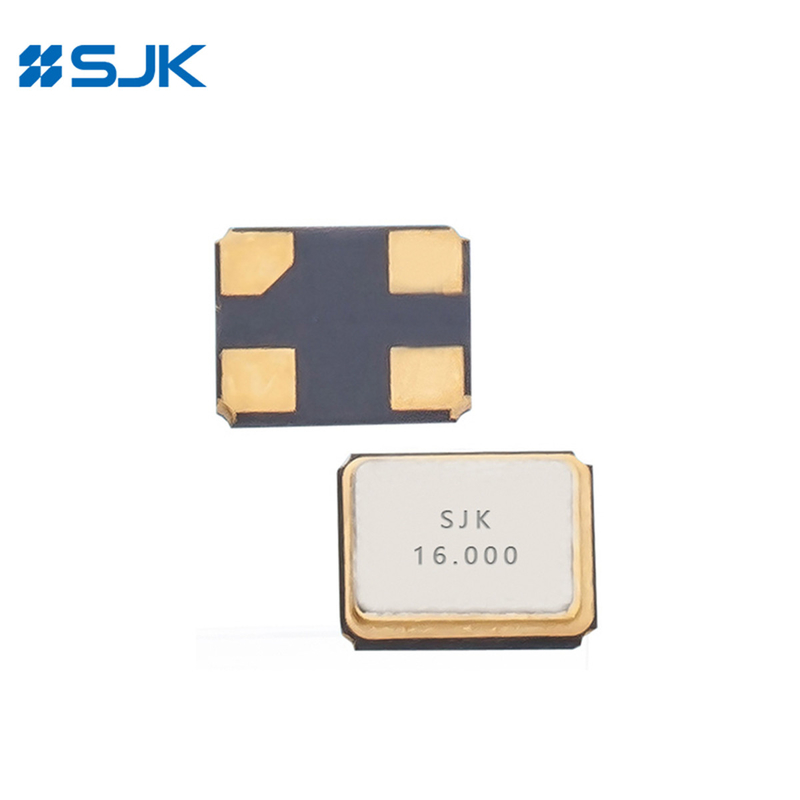

SJK-7U 8MHz SMD3225 Quartz Crystal Unit High Precision and Stability appication for indusrtial control

Features:

Reliable seam sealed ceramic package.
Wide operating temperature range.
Superior performance and stringent reliability in harsh environment.
Application: MCU, Industrial Control, Factory Automation, IoT, ABS and sensor modules, etc.
Compact size.
RoHS Compliant / Pb Free.

Specifications:

Item	SJK-7U SMD3225 8MHz Quartz Crystal
Nominal Frequency	8MHz
Overtone Order	AT/Fundamental
Frequency Tolerance (@25ºC)	±10ppm
Load Capacitance	12pF
Drive Level	100μW Typical
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +125°C
Frequency Stability Over Operating Temperature Characteristics	±30ppm
Equivalent Series Resistance(ESR)	150Ω max.
Shunt Capacitance	2pF max.
Aging @25°C 1st year (Max)	±3ppm/year
Package Size(L×W×H)(mm)	3.2×2.5×0.7

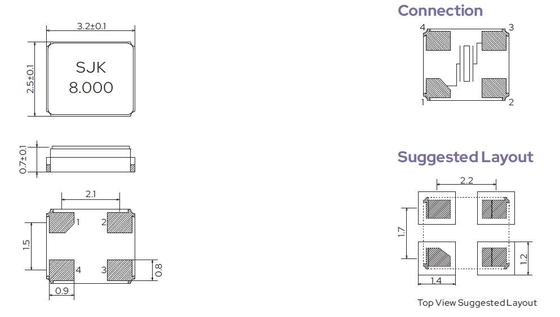

Dimensions and Soldering Plattern:

SJK-7U 8MHz SMD3225 Quartz Crystal Unit High Precision And Stability Appication For Indusrtial Control 0
