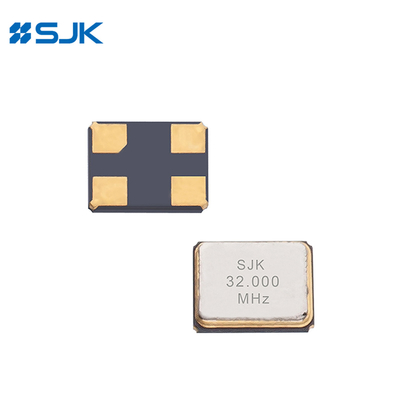

Type		7X Series SMD TCXO / VC-TCXO
Output Type		Clipped Sine wave
Output Load		10kΩ//10pF
Supply Voltage		1.8~3.3V
Frequency Range		10~52MHz
Supply Current		2.0mA Max.
Output Level		0.8Vp-p Min.
Frequency Stability	Tolerance	±2.0ppm Max. (After 2 reflows)
	vs Temperature	±0.5ppm
	vs Supply Voltage	±0.2ppm Max. (Vcc±5%)	±0.2ppm Max. (Vcc±5%)
	vs Load	±0.2ppm Max. (Load variation±10%)
	vs Aging	±1ppm Max./Year
Auto Frequency Control (AFC) Range		±7ppm~±16ppm (1.4±1V)
Start-up Time		2ms Max.
Operating Temperature		-30~+85℃
Phase Noise @19.2MHz	100Hz	-115dBc/Hz
	1kHz	-135dBc/Hz
	10kHz	-148dBc/Hz
Packing Unit		3000pcs./Reel

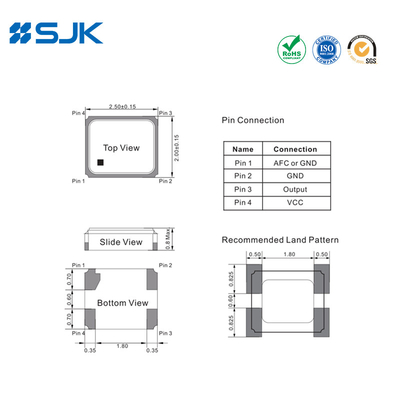

Dimensions [mm]
