Name: SJK 1610 SMD 32.768KHz Crystal Resonator 12.5pF 20ppm for Shunt Capacitance 1.3pF Typ
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7K
Price: 0.25 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7K
MOQ:	3000 pieces
Price:	$0.25 - $0.32/pieces

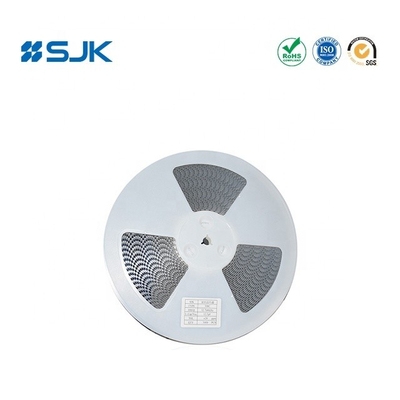

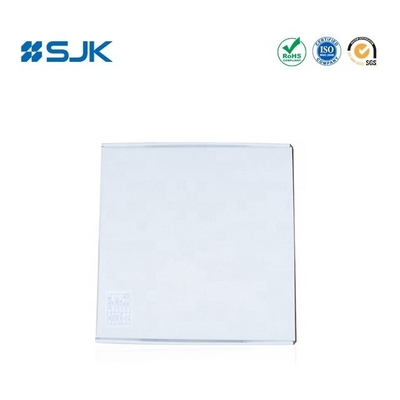

Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Tuning Fork Crystal

Supplier Type:

Original Manufacturer, OEM

Package Type:

SMD

Frequency Range:

32.768KHz

Frequency:

32.768KHz

Frequency Stability:

±20ppm Or Specify

Frequency Tolerance:

±20ppm Or Specify

Operating Temperature:

-20°C ~70°C

Build-in Load Capacitance:

12.5pFor Specify

Shunt Capacitance:

1.3pF Typ

Drive Level:

0.5uW Max

Load Capacitance:

12.5pFor Specify

Aging (at 25℃):

±3ppm At First Year

Storage Temperature Range:

-55℃ ~125℃

Package:

3000pcs

Size:

1.6*1.0*0.5mm

Turnover Temperature:

±25℃±5℃

Description:

Tuning Fork Crystal Resonator

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

12.5pF SMD 32.768KHz Crystal Resonator

20ppm SMD 32.768KHz Crystal Resonator

1.3pF SMD 32.768KHz Crystal Resonator

Product Description

Product info

32.768kHz SMD 1610 Crystal

Frequency Range: 32.768kHz
Overtone: Fundamental
Size: 1.6×1.0×0.5 mm
Application: Small communication device, Clock and more.

Features:

2 pads surface mount package

1610 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.5mm.

High reliable environmental performance.

Automatic mounting and reflow soldering.

Application for small communication device, Clock, Wireless communication, Telecommunication, Wave clock, RFID products and more.

RoHS Compliant /Pb-Free

Specifications

Dimensions[mm]

SJK 1610 SMD 32.768KHz Crystal Resonator 12.5pF 20ppm for Shunt Capacitance 1.3pF Typ 1
