Name: SJK SMD 380C 6LC Tuning Fork Crystal Frequency 32.768khz for Automotive Applications
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD 380C 6LC
Price: 0.18 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD 380C 6LC
MOQ:	3000 pieces
Price:	$0.18 - $0.22/pieces
Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

SMD

Supplier Type:

Original Manufacturer

Package Type:

SMD

Frequency Range:

32.768khz

Frequency:

32.768khz

Frequency Stability:

±20ppm

Operating Temperature:

-20°C ~ 70°C

Output Frequency Range::

32.768KHz

Operable Temperature Range::

-40°C~+85°C

APPLICATIONS::

Consumer Electronics Etc.

Supply Ability:

1000000 Piece/Pieces per Month

Highlight:

Automotive Applications Tuning Fork Crystal

32.768khz Tuning Fork Crystal

SJK Tuning Fork Crystal

Product Description

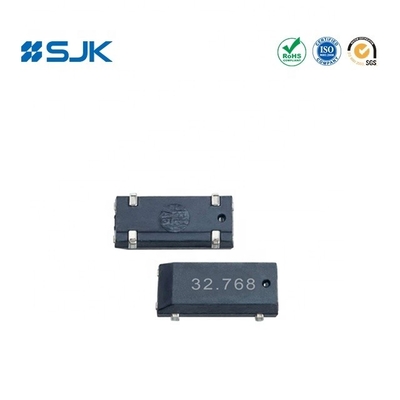

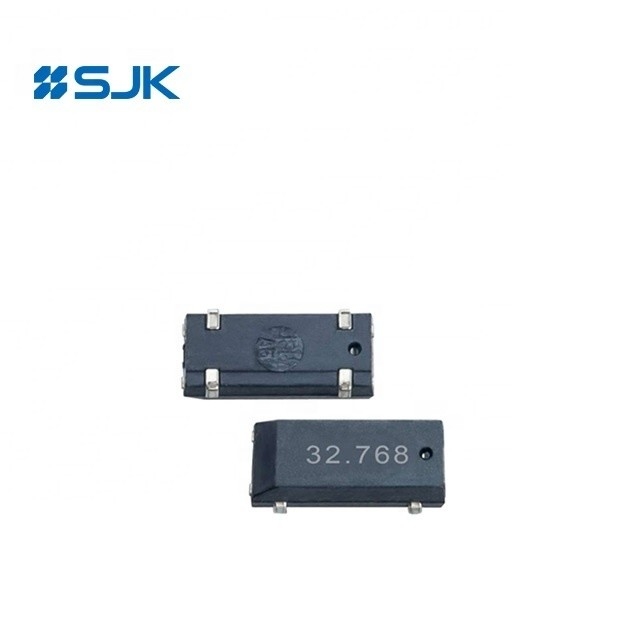

SJK SMD 380C 6LC Tuning Fork Crystal Frequency 32.768khz for Automotive Applications 0

308C 32.768 kHz SMD Crystal

Model: 6LC Series (308C 32.768kHz SMD Crystal Unit) Frequency range: 32.768kHz Frequency tolerance: ±20ppm Size: 3.8×8.0×2.4mm Load capacitance: 12.5pF, or specify Applications: Smart meters, IoT,Consumer products, PC, etc

Specifications and Dimensions

Features of 6LC Series 308C 32.768kHz SMD Crystal Unit:

Plastic molded 32.768 kHz SMD crystal unit of heat resistance

High precision and tight reliability

Small size with 3.8×8.0×2.4 mm

High reliable environmental performance

Automatic mounting and reflow soldering

Application for Smart communication device, Clock, microcomputer, etc

RoHS Compliant

Electronic Specifications of 6LC Series 308C 32.768kHz SMD Crystal Unit:

Item/Type	6LC Series (308C 32.768kHz SMD Crystal Unit)
Frequency Range	32.768kHz
Frequency Tolerance	±20ppm, or specify
Load Capacitance	6.0~12.5pF, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Drive Level	1.0μW Max.
Turnover Temperature	±25℃±5℃
Parabolic Coefficient	(-0.034±0.005)×10^-6/℃
Shunt Capacitance	1.5pF Typ.
Aging (at25℃)	±3ppm/Year Max.
Packing Unit	3000pcs.

Dimensions [mm]

REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.

SJK SMD 380C 6LC Tuning Fork Crystal Frequency 32.768khz for Automotive Applications 2

SJK SMD 380C 6LC Tuning Fork Crystal Frequency 32.768khz for Automotive Applications 9
