Name: SMD 1610 xtal Tuning Fork crystal-Series 7K Frequency Tolerance or specify Best Choice
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD 1610 7K 32.768kHz
Price: 0.25 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD 1610 7K 32.768kHz
MOQ:	3000 pieces
Price:	$0.25 - $0.32/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

Tuning Fork Crystal

Operating Temperature Range (°C):

-20~+70℃,-40~+85℃

Dimension:

1610

Package Type:

SMD

Frequency Tolerance:

±20ppm,or Specify

Load Capacitance:

12.5pF,other Spec

Frequency Range:

32.768kHz

Frequency:

32.768kHz

Frequency Stability:

±20ppm

Mounting Type:

Surface Mount

Application Level:

Industrial & Consumer

Description:

SJK

Highlight:

Best Choice Tuning Fork Crystal

SMD 1610 Tuning Fork Crystal

Product Description

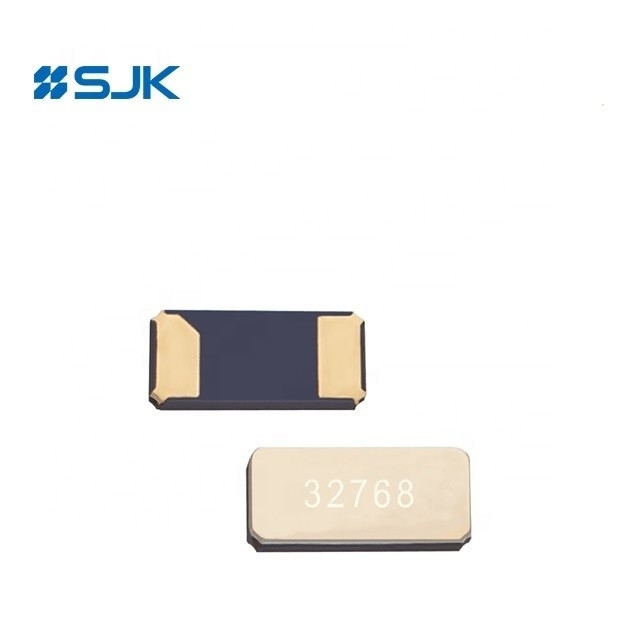

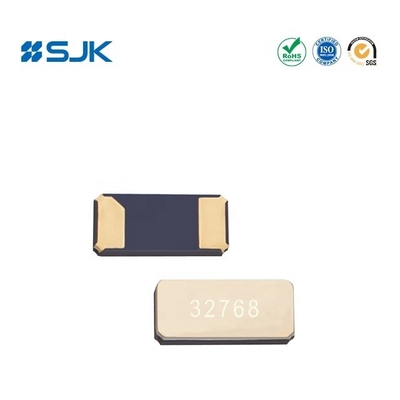

SMD 1610 xtal Tuning Fork crystal-Series 7K Frequency Tolerance or specify Best Choice 0

7K 32.768 kHz SMD Crystal

Frequency Range: 32.768 kHz

Overtone: Fundamental Size: 1.6×1.0×0.5 mm

Application: Small communication device, Clock and more.

Specifications and Dimensions

Features:

· 2 pads surface mount package

· 1610 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.5mm.

· High reliable environmental performance.

· Automatic mounting and reflow soldering.

· Application for small communication device, Clock, Wireless communication, Telecommunication, Wave clock, RFID products and more.

· RoHS Compliant /Pb-Free

· Electrical Specifications:

Item /Type	7K (1610 SMD 32.768kHz Crystal Unit)
Frequency Range	32.768kHz
Frequency Tolerance	±20ppm, or specify
Load Capacitance	12.5pF, or specify
Operating Temperature	-20~+70℃, -40~+85℃
Storage Temperature	-55~+125℃
Turnover Temperature	±25℃±5℃
Parabolic Coeffcient	(0.03±0.01)*10^-6/℃²
Drive Level	0.5μW Max.
Shunt Capacitance	1.3pF Typ.
Aging (at 25℃)	±3ppm at first year
Series Resistance	90KΩ Max.

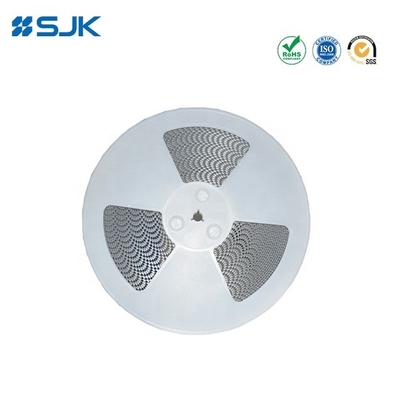

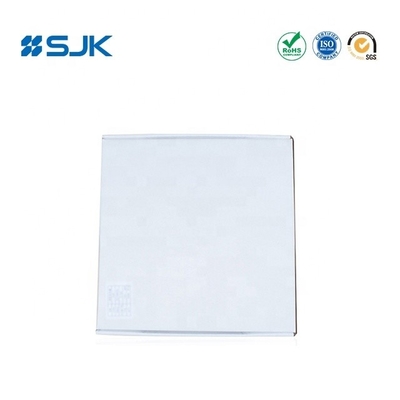

Packing Unit	3000pcs. /Reel

Dimensions [Units: mm]

REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.

SMD 1610 xtal Tuning Fork crystal-Series 7K Frequency Tolerance or specify Best Choice 2

SMD 1610 xtal Tuning Fork crystal-Series 7K Frequency Tolerance or specify Best Choice 3
