Name: SJK 7015SMD 32.768KHz Tuning Fork Crystal 0.8pF Typ Shunt Capacitance 20ppm MC-146 Cross
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7M
Price: 0.10 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7M
MOQ:	3000 pieces
Price:	$0.095 - $0.12/pieces

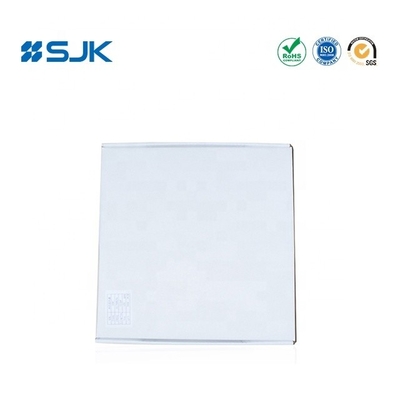

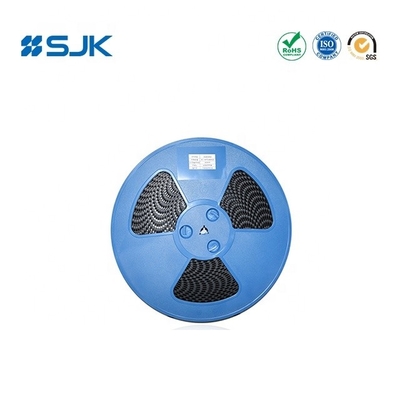

Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

SMD

Supplier Type:

Original Manufacturer, OEM

Package Type:

SMD

Frequency Range:

32.768KHz

Cross Reference:

MC-146

Frequency:

32.768KHz

Frequency Stability:

±20ppm Or Specify

Frequency Tolerance:

±20ppm Or Specify

Operating Temperature:

-40°C ~ 85°C

Build-in Load Capacitance:

12.5pFor Specify

Impedance:

60KOhms

Shunt Capacitance:

0.8pF Typ

Drive Level:

1.0uW Max

Load Capacitance:

12.5pFor Specify

Aging (at 25℃):

±3ppm At First Year

Storage Temperature Range:

-55℃ ~125℃

Package:

3000pcs

Size:

7.0*1.5*1.5mm

Turnover Temperature:

±25℃±5℃

Description:

Tuning Fork Crystal Resonator

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

0.8pF Tuning Fork Crystal

20ppm Tuning Fork Crystal

Product Description

Product info

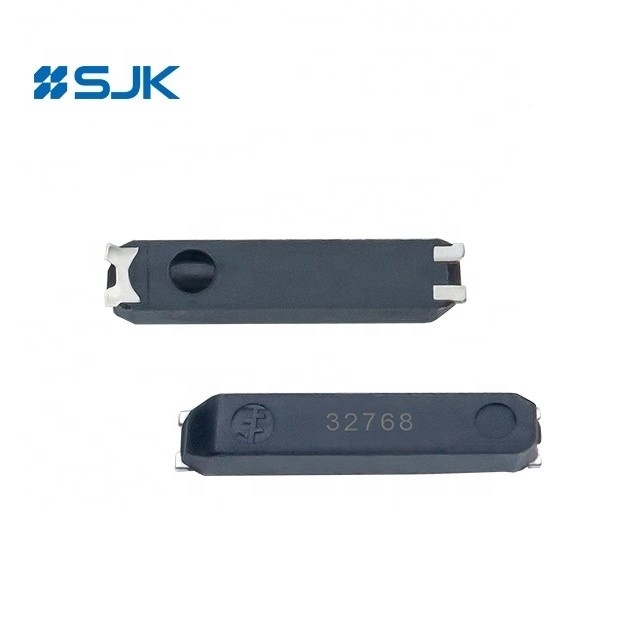

MC-146 32.768kHz SMD Crystal

Frequency range: 32.768kHz
Load capacitance: 12.5pF
Overtone: Fundametal
Size: 7.0×1.5×1.4 mm
Application: PC, Gaming equipment, Radio communications, Small communication device, Smart grid, PDA, etc.

Features:

Plastic molded SMD tuning fork crystal of heat-resistance.

High precision and tight frequency stabiity.

Ultra thin type with height 1.4mm Max.

High reilable environmental performance.

Automatic mounting and reflow soldering.

Applications: PC, Gaming equipment, Radio communications, Smart grid, Small communication device, etc.

RoHS Compliant.

Specifications

Dimensions[mm]

SJK 7015SMD 32.768KHz Tuning Fork Crystal 0.8pF Typ Shunt Capacitance 20ppm MC-146 Cross 1

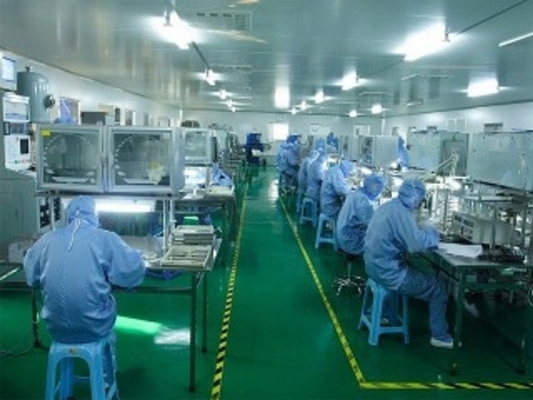

SJK Company Info
