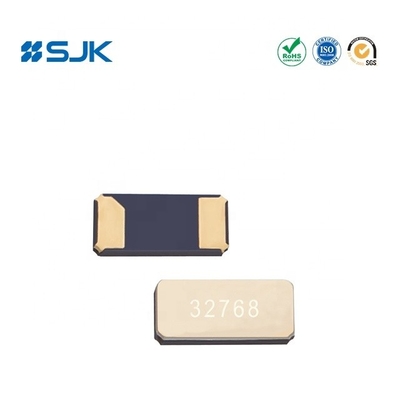

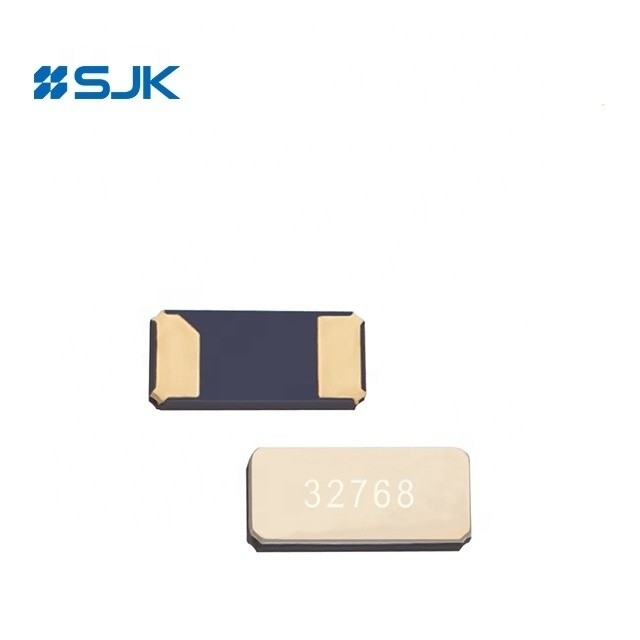

Name: FC-135 SMD 3215 32.768KHz 12.5pF 20ppm -40~+85 crystal Resonator for time control
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7L32768KDY2400A6
Price: 0.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7L32768KDY2400A6
MOQ:	3000 pieces
Price:	$0.05 - $0.12/pieces

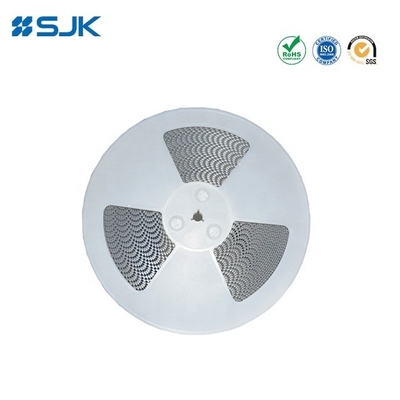

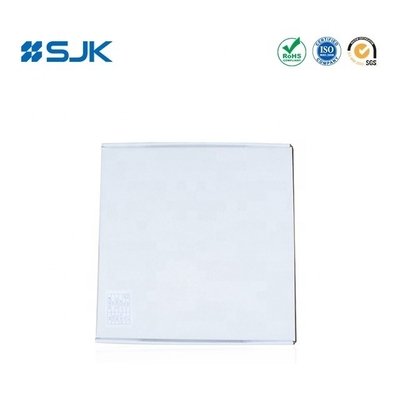

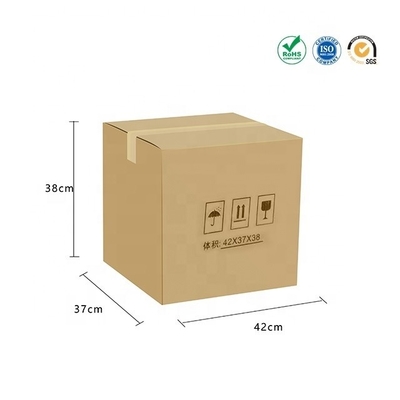

Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

RoHS, Reach, SGS

Document:

SJK-7L-3215 TUNING FORK CRY...AL.pdf

Type:

KHz Crystal

Supplier Type:

Original Manufacturer, OEM

Package Type:

SMD

Frequency Range:

32.768KHz

Frequency:

32.768KHz

Frequency Stability:

±20ppm Or Specify

Frequency Tolerance:

±20ppm Or Specify

Operating Temperature:

-40°C ~ 85°C

Build-in Load Capacitance:

12.5pFor Specify

Impedance:

70KΩ

Shunt Capacitance:

1.0pF Typ

Drive Level:

1.0uW Max

Load Capacitance:

12.5pFor Specify

Aging (at 25℃):

±3ppm At First Year

Storage Temperature Range:

-55℃ ~125℃

Package:

3000pcs

Size:

3.2*1.5*0.75mm

Turnover Temperature:

±25℃±5℃

Description:

Tuning Fork Crystal Resonator

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

32.768KHz SMD Tuning Fork Crystal

Industrial SMD Tuning Fork Crystal

20ppm SMD Tuning Fork Crystal

Product Description

Product info

32.768kHz SMD 3215 Crystal

Frequency range: 32.768kHz
Load capacitance: 12.5pF, or specify
Overtone: Fundamental
Size: 3.2×1.5×0.75 mm
Application: Mobile communications, Wave clock, Digital applications, Small communication device

Features:

2 pads surface mount package.

3215 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of .75mm.

High precision andhigh reliability.

High reliable environmental performance.

Automatic mounting and reflow soldering.

Applicaiton for mobile communications, wave clock, automotive applications, small communication device, etc.

RoHS Compliant /Pb-Free

Specifications

FC-135 SMD 3215 32.768KHz 12.5pF 20ppm -40~+85 crystal Resonator for time control 0

Dimensions[mm]

FC-135 SMD 3215 32.768KHz 12.5pF 20ppm -40~+85 crystal Resonator for time control 1

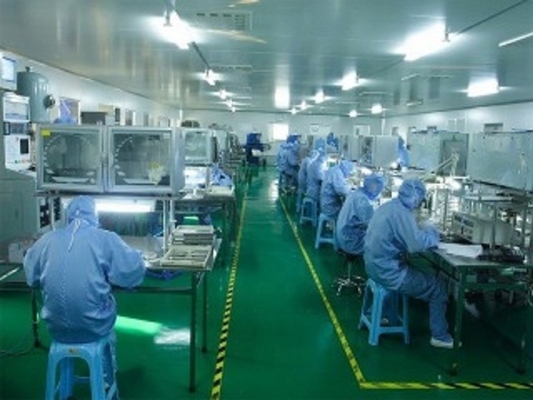

SJK Company Info

FC-135 SMD 3215 32.768KHz 12.5pF 20ppm -40~+85 crystal Resonator for time control 2

FC-135 SMD 3215 32.768KHz 12.5pF 20ppm -40~+85 crystal Resonator for time control 3

FC-135 SMD 3215 32.768KHz 12.5pF 20ppm -40~+85 crystal Resonator for time control 4

FAQ

FC-135 SMD 3215 32.768KHz 12.5pF 20ppm -40~+85 crystal Resonator for time control 11

Contact us Today

Sales: Rita Lee
Web: www.q-crystal.com
Mob:-+86 8300706104

Wechat: xzdy-6688
