Name: Stable 7M 32.768KHZ SJK SMD 7015 Tuning Fork Crystal-Series Load Capacitance Cl 12.5pF
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD 7015 7M 32.768KHZ
Price: 0.10 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD 7015 7M 32.768KHZ
MOQ:	1000 pieces
Price:	$0.095 - $0.12/pieces

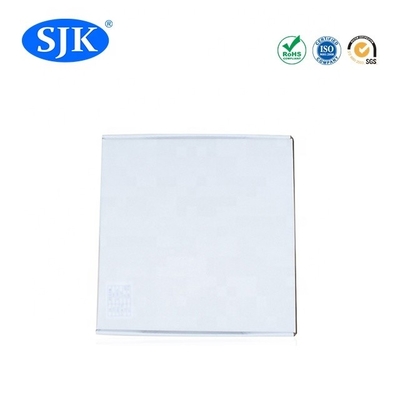

Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

Tuning Fork Crystal

Supplier Type:

Original Manufacturer

Package Type:

SMD

Frequency:

32.768KHZ

Frequency Stability:

±20ppm

Frequency Tolerance:

±20ppm

Operating Temperature:

-20°C ~ 70°C

Output Frequency Range::

32.768KHz

Frequency Tolerance::

+/-20ppm (at 25°C)

Load Capacitance(Cl)::

12.5pF

APPLICATIONS::

Consumer Electronics Etc.

Supply Ability:

1000000 Piece/Pieces per Month

Highlight:

7M Tuning Fork Crystal

SJK SMD Tuning Fork Crystal

32.768KHZ Tuning Fork Crystal

Product Description

Stable 7M 32.768KHZ SJK SMD 7015 Tuning Fork Crystal-Series Load Capacitance Cl 12.5pF 0

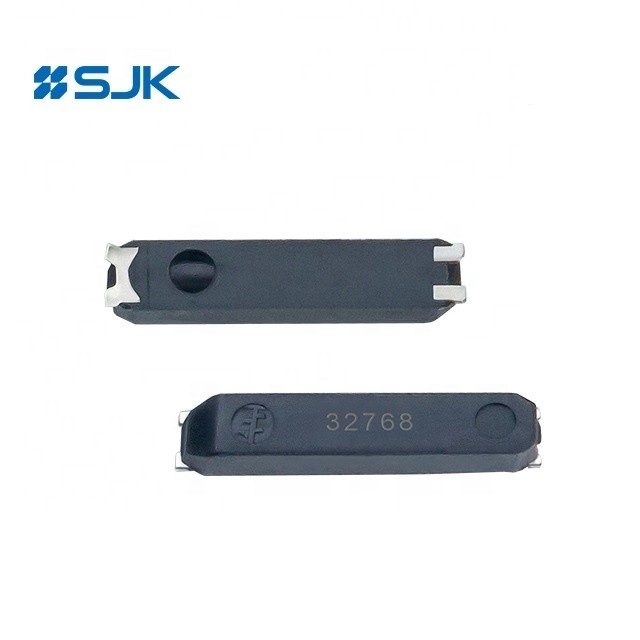

7M 32.768kHz SMD Crystal

Frequency range: 32.768kHz

Load capacitance: 12.5pF

Overtone: Fundamental Size: 7.0×1.5×1.4 mm

Application: PC, Gaming equipment, Radio communications, Small communication device, Smart grid, PDA, etc.

Specifications and Dimensions

Features:

Plastic molded SMD tuning fork crystal of heat-resistance.

High precision and tight frequency stability.

Ultra-thin type with height 1.4mm Max.

High reliable environmental performance.

Automatic mounting and reflow soldering.

Applications: PC, Gaming equipment, Radio communications, Smart grid, Small communication device, etc.

RoHS Compliant.

Specifications:

Item /Type	7M (32.768kHz SMD Crystal Resonator)
Frequency Range	32.768kHz
Load Capacitance	12.5pF, or specify
Drivel Level	1.0μW Max.
Frequency Tolerance	±20ppm, or specify
Series Resistance	65KΩ Max.
Turnover Temperature	±25℃±5℃
Parabolic Coefficient	(-0.035±0.05)*10^-6/℃²
Operating Temperature	-20~+70℃, -40~+85℃
Storage Temperature	-55~+125℃
Shunt Capacitance	0.8pF Typ.
Aging (at 25℃)	±3ppm at first year

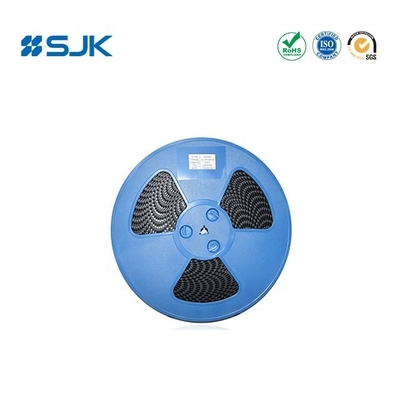

Packing Unit	3000pcs. /Reel

Dimensions[mm]:

Stable 7M 32.768KHZ SJK SMD 7015 Tuning Fork Crystal-Series Load Capacitance Cl 12.5pF 1

REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.

Stable 7M 32.768KHZ SJK SMD 7015 Tuning Fork Crystal-Series Load Capacitance Cl 12.5pF 2

Stable 7M 32.768KHZ SJK SMD 7015 Tuning Fork Crystal-Series Load Capacitance Cl 12.5pF 3
