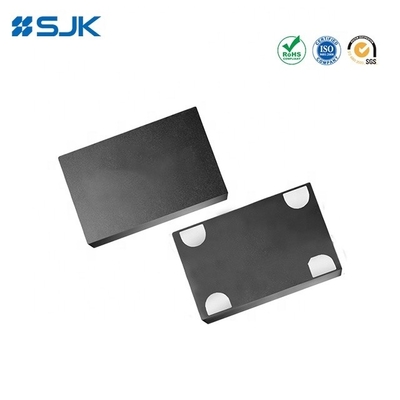

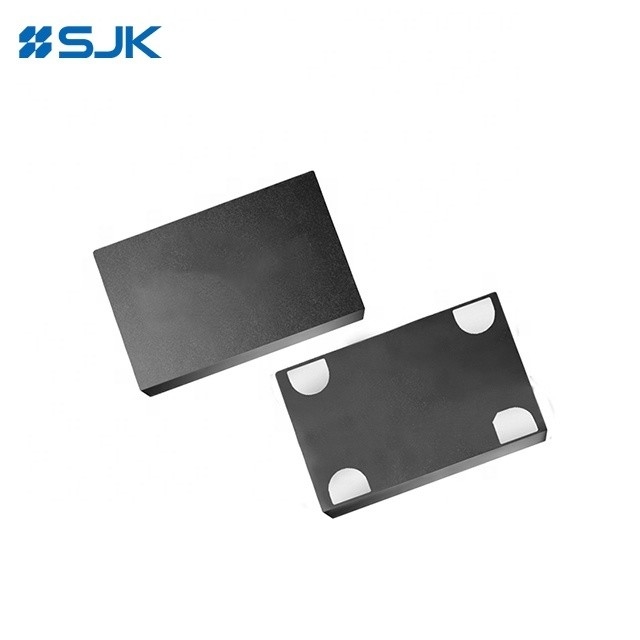

Name: 50MHz Frequency MEMS Oscillator 7*5*1mm Size for Optimal Performance
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-MEMES 8008-7050 SIZE 50MHz
Price: 0.60 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-MEMES 8008-7050 SIZE 50MHz
MOQ:	1000 pieces
Price:	$0.60 - $0.75/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Features:

MEMS

Specification:

50MHz

Application:

Consumer

Series:

SJK8008 Series

Size / Dimension:

7*5*1mm

Description:

MEMS Oscillator

Item /Type:

SJK8008 Series MHz MEMS Oscillators

Output:

LVCMOS

Frequency Range:

50MHz

Supply Voltage:

1.8V~3.3V

Frequency Stability:

±20ppm~±50ppm, Or Specify

Current Consumption:

4.5mA Max.

Standby Current:

4.3mA Max.

OE Disable Current:

4.2mA Max.

Operating Temperature:

-40~+85℃

Duty Cycle:

45~55%

Highlight:

751mm MEMS Oscillator

Optimal Performance MEMS Oscillator

50MHz MEMS Oscillator

Product Description

Item /Type	SJK8008 Series MHz MEMS Oscillators
Output	LVCMOS
Frequency range	50MHz
Supply voltage	1.8V~3.3V
Frequency stability	±20ppm~±50ppm, or specify
Current consumption	4.5mA Max.
Standby current	4.3mA Max.
OE Disable Current	4.2mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)	10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)	30%Vcc /70%Vcc
Start-up Time	5ms Max.
RMS Period Jitter	3pS Max.
RMS Phase Jitter (12KHz~20MHz)	2pS Max.
Storage Temperature	-60~+150℃

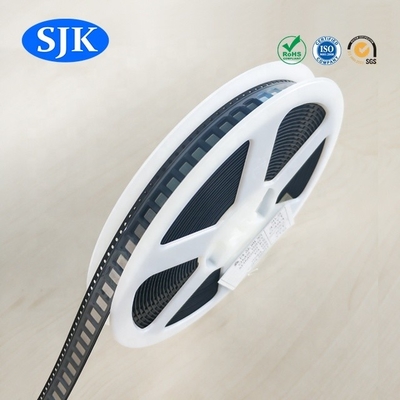

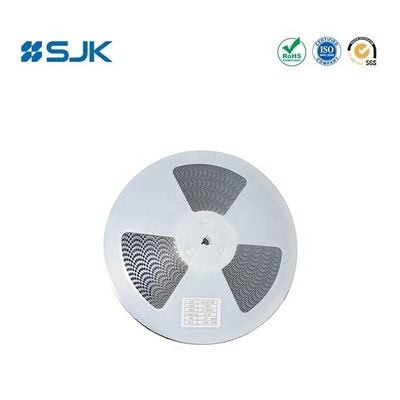

Package	^{5032, 7050: 1000pcs./Reel}
Package	^{2016, 2520, 3225 : 3000pcs./Reel}
