Name: LVCMOS 2520 4pin 125.000000mhz Crystal 2.5x2.0mm MEMS Programmable Oscillator SJK8009
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD 2520 MEMS 8009 125.000000MHz
Price: 0.35 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD 2520 MEMS 8009 125.000000MHz
MOQ:	3000 pieces
Price:	$0.35 - $0.55/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Features:

Programmable Oscillator

Specification:

125.000000MHz

Application:

Industrial

Series:

8009

Size / Dimension:

2.5x2.0,mm

Description:

MEMS Programmable Oscillator

Highlight:

125.000000mhz MEMS Programmable Oscillator

Product Description

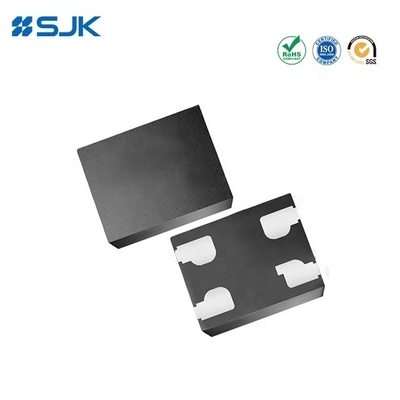

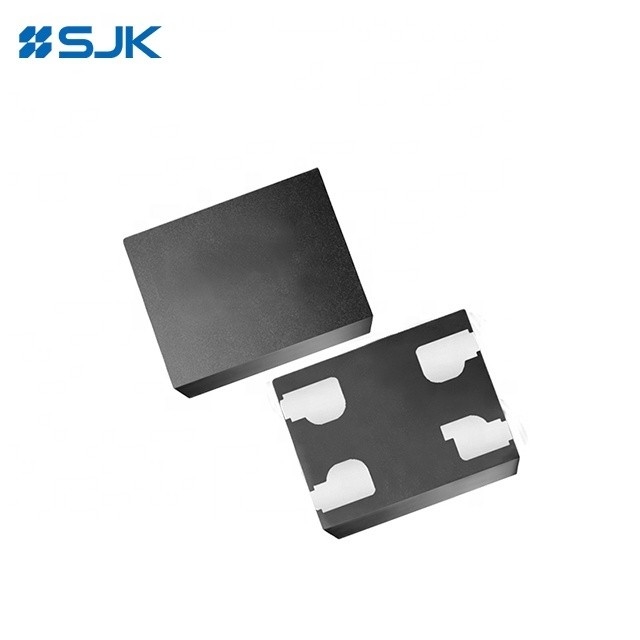

LVCMOS 2520 4pin 125.000000mhz Crystal 2.5x2.0mm MEMS Programmable Oscillator SJK8009 0

SJK8009 Programmable Oscillator

Model: SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Frequency range: 110~137MHz Output type: LVCMOS/HCMOS Supply voltage: 1.8V~3.3V Frequency stability: ±20ppm Size: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 mm Applications: Ethernet, USB, Medical electronics, Data center, Audio & Video, etc

Specifications and Dimensions

Features of SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Frequency range from 110MHz to 137MHz

Excellent frequency stability as low as ±20ppm

Low power consumption of 4.9mA at 1.8V

Standby mode for longer battery life

Fast startup time of 5ms

LVCMOS/HCMOS output type

Size with 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm×mm

Automatic mounting and reflow soldering

Applications: DSC, Ethernet, USB, SATA, IP Cam, Medical electronics, Audio & Video, Data center, etc

RoHS Compliant /Pb Free

Electronical Specifications of SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Item/Type	SJK8009
Output Type	LVCMOS/HCMOS
Frequency Range	110~137MHz
Supply Voltage	1.8V~3.3V
Frequency Stability	±20ppm~±50ppm, or specify
Current Consumption	7.5mA Max.
Standby Current	4.3mA Max.
OE Disable Current	4.2mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)	10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)	30%Vcc /70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	122ns Max.
Resume Time	5ms Max.
RMS Period Jitter	4pS Max.
Peak to Peak Period Jitter	30pS Max.
RMS Phase Jitter (12KHz~20MHz)	2pS Max.
Storage Temperature	-60~+150℃
Packing Unit	2016 /2520 /3225: 3000pcs./reel 5032 /7050: 1000pcs./reel

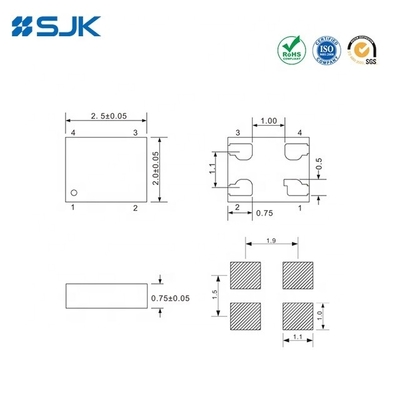

Pin Functions & Dimensions:

REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
