Name: SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD 5032 MEMS 8009 106.25 mhz
Price: 0.35 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD 5032 MEMS 8009 106.25 mhz
MOQ:	3000 pieces
Price:	$0.35 - $0.50/pieces
Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

China

Supplier Type:

Original Manufacturer

Voltage - Supply:

1.8V, 2.5V ~ 3.3V

Base Resonator:

MEMS

Application Level:

Industrial

Type:

MEMS Programmable Oscillator

Package Type:

SMD

Frequency Range:

106.25 Mhz

Nominal Frequency:

106.25 Mhz

Frequency Tolerance:

±20ppm~±50ppm, Or Specify

Operating Temperature:

-40~+85℃

Dimensions:

2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 Mm

Frequency Stability:

±20ppm

Frequency:

106.25 Mhz

Supply Ability:

1000000 Piece/Pieces per Month

Highlight:

106.25 Mhz MEMS Programmable Oscillator

15pf MEMS Programmable Oscillator

SJK8009 MEMS Programmable Oscillator

Product Description

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 0

SJK8009 Programmable Oscillator

Model: SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Frequency range: 110~137MHz Output type: LVCMOS/HCMOS Supply voltage: 1.8V~3.3V Frequency stability: ±20ppm Size: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 mm Applications: Ethernet, USB, Medical electronics, Data center, Audio & Video, etc

Specifications and Dimensions

Features of SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Frequency range from 110MHz to 137MHz

Excellent frequency stability as low as ±20ppm

Low power consumption of 4.9mA at 1.8V

Standby mode for longer battery life

Fast startup time of 5ms

LVCMOS/HCMOS output type

Size with 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm×mm

Automatic mounting and reflow soldering

Applications: DSC, Ethernet, USB, SATA, IP Cam, Medical electronics, Audio & Video, Data center, etc

RoHS Compliant /Pb Free

Electronical Specifications of SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Item/Type	SJK8009
Output Type	LVCMOS/HCMOS
Frequency Range	110~137MHz
Supply Voltage	1.8V~3.3V
Frequency Stability	±20ppm~±50ppm, or specify
Current Consumption	7.5mA Max.
Standby Current	4.3mA Max.
OE Disable Current	4.2mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)	10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)	30%Vcc /70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	122ns Max.
Resume Time	5ms Max.
RMS Period Jitter	4pS Max.
Peak to Peak Period Jitter	30pS Max.
RMS Phase Jitter (12KHz~20MHz)	2pS Max.
Storage Temperature	-60~+150℃
Packing Unit	2016 /2520 /3225: 3000pcs./reel 5032 /7050: 1000pcs./reel

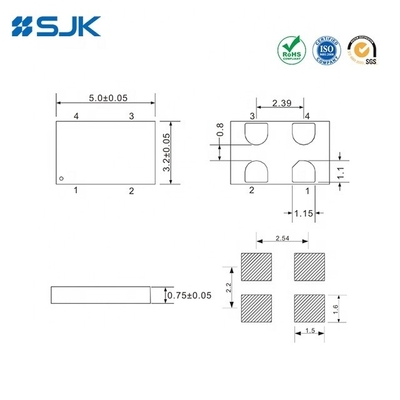

Pin Functions & Dimensions:

REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 3

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 4

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 10

Tags:

3225 MEMS Oscillator

20ppm MEMS Oscillator

7050 CMOS MEMS Oscillator

SJK8209 2520 MEMS Oscillator With High Frequency 80 To 220 MHz ±10 To ±50 Ppm For Telecom, Networking

Get Best Price

video

SJK8208 5032 1 To 80MHz, ±10 To ±50 Ppm Oscillator Oscillator For Industrial, Telecom, Storage, Networt

Get Best Price

video

SJK8009 7050 Low Power MEMS Oscillator With 115 To 137MHz SOT23-5 Package -40~+125℃

Get Best Price

video

SJK8009 5032 Low Power MEMS Oscillator With 115 To 137MHz SOT23-5 Package -40~+125℃

Get Best Price

video

SJK8009 3225 Low Power Oscillator With 115 To 137MHz SOT23-5 Package -40~+125℃

Get Best Price

video

SJK8009 2520 Size Low Power High Frequency Oscillator With 115 To 137MHz -40~+125℃

Get Best Price

video

115 To 137MHz Low Power High-Frequency Oscillator With LVCMOS/HCMOS SOT23-5 Package -40~+125℃

Get Best Price

video

High Temperature Oscillator Support 1 To 110 MHz, ±20ppm XO-SE Type 1.8V -40~+125℃

Get Best Price

Products Details

Home > Products >

MEMS Oscillator-Low Power

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original

All Category

Crystal Resonator

Series 6A, HC-49/U Crystal Unit

Series 6B, HC-49S/SS Crystal Unit

Series 6C, HC-49SMD/49SSMD Crystal Unit

Series 6P HC-M49SMD Crystal Unit

Series 6D, UM-1 Crystal Unit

Series 6Z, Cylinder Type Crystal Unit

Series 7S, SMD 1210 Seam Crystal Unit

Series 7Y, SMD 1612 Seam Crystal Unit

Series 7F, SMD 2016 Seam Crystal Unit

Series 7E, SMD 2520 Seam Crystal Unit

Series 7U, SMD 3225 Seam Crystal Unit

Series 7I, SMD 5032 Seam Crystal Unit

Series 6G, SMD 6035 Seam Crystal Unit

Series 6F, SMD 7050 Seam Crystal Unit

Series 7Z, SMD 2520 Glass Crystal Unit

Series 7V, SMD 3225 Glass Crystal Unit

Series 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Glass Crystal Unit

32.768KHz Tuning Fork Crystal

Series 7K, SMD 1610 Tuning Fork Crystal

Series 7R, SMD 2012 Tuning Fork Crystal

Series 7L, SMD 3215 Tuning Fork Crystal

Series 7M, SMD 7015 Tuning Fork Crystal

Series 6LC, SMD 8038 Tuning Fork Crystal

Series 6LB, SMD 206B Tuning Fork Crystal

Series 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Series 6K8, Through-Hole 3*8mm Tuning Fork Crystal

Crystal Oscillator

Series 8N, SMD 1612 Crystal Oscillator

Series 1N, SMD 2016 Crystal Oscillator

Series 2N, SMD 2520 Crystal Oscillator

Series 3N, SMD 3225 Crystal Oscillator

Series 7N, SMD 5032 Crystal Oscillator

Series 6N, SMD 7050 Crystal Oscillator

Series 9N, SMD 1490 Crystal Oscillator

Series 6MF, Thru-Hole Full Size Crystal Oscillator

Series 6MH, Thru-Hole Half Size Crystal Oscillator

Differential Oscillator

Series 3J, SMD 3225 LVPECL Output Oscillator

Series 3D, SMD 3225 LVDS Output Oscillator

Series 3H, SMD 3225 HCSL Output Oscillator

Series 5J, SMD 5032 LVPECL Output Oscillator

Series 5D, SMD 5032 LVDS Output Oscillator

Series 5H, SMD 5032 HCSL Output Oscillator

Series 7J, SMD 7050 LVPECL Output Oscillator

Series 7B, SMD 7050 LVDS Output Oscillator

Series 7H, SMD 7050 HCSL Output Oscillator

Series 9J, SMD 1490 LVPECL Output Oscillator

Series 9D, SMD 1490 LVDS Output Oscillator

OCXO

Series 1X, SMD 9*7 Size OCXO

Series 9X, SMD 1495 Size OCXO

Series 5X, SMD 252211 Size OCXO

Series 2X, Thru-hole OCXO

Series 3X, Thru-hole 20*20 OCXO

Series 9M, Thru-hole 252512 OCXO

Series 6X,Thru-hole 362712 Size OCXO

TCXO/VC-TCXO

Series 7X, SMD 2016 TCXO / VC-TCXO

Series 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sine Wave

Series 7T, SMD 3225 TCXO / VC-TCXO CMOS

Series 5T, SMD 5032 TCXO / VC-TCXO

Series 8T, SMD 7050 TCXO / VC-TCXO

Series 9T, SMD 1490 TCXO / VC-TCXO

Series 6T, Thru-hole TCXO / VC-TCXO

Series 1T SMD 1612 TCXO/VC-TCXO

Series 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Series 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Series 3S, SMD 3225 CMOS Output VCXO

Series 3P, SMD 3225 LVPECL Output VCXO

Series 5S, SMD 5032 CMOS Output VCXO

Series 5P, SMD 5032 LVPECL Output VCXO

Series 5V, SMD 5032 LVDS Output VCXO

Series 6S, SMD 7050 CMOS Output VCXO

Series 7P, SMD 7050 LVPECL Output VCXO

Series 6V, SMD 7050 LVDS Output VCXO

Series 9S, SMD 1490 CMOS Output VCXO

Series 9P, SMD 1490 LVPECL Output VCXO

Series 9V, SMD 1490 LVDS Output VCXO

Series 6RF, Thru-Hole Full-Size VCXO

Series 6RH, Thru-Hole Half-Size VCXO

RTC 32.768KHz Oscillator

Series 2E, SMD 2016 RTC Oscillator

Series 2D, SMD 2520 RTC Oscillator

Series 3C, SMD 3225 RTC Oscillator

Series 5B, SMD 5032 RTC Oscillator

Series 7A, SMD 7050 RTC Oscillator

MCF (Monolithic Crystal Filter )

HC-49T Crystal Filter

UM-1 Crystal Filter

UM-5 Crystal Filter

CF 2-Pole crystal Filter

CF 3-Pole crystal Filter

CF 4-Pole crystal Filter

Ceramic Resonator

Series ZTA, DIP & SMD Type Ceramic Resonator

Series ZTT, DIP & SMD Type Ceramic Resonator

Series ZTB, DIP & SMD Type Ceramic Resonator

Ceramic Filter

Series LT10.7, DIP & SMD Type Ceramic Filter

Series LT/LTS, DIP & SMD Type Ceramic Filter

Series LT455...W, DIP Type Ceramic Filter

Series LT455...U, DIP Type Ceramic Filter

Series LT450...W, DIP Type Ceramic Filter

Series LT450...U, DIP Type Ceramic Filter

Series XT, DIP Type Ceramic Trap

Saw Resonator

F-11, DIP Saw Resonator (4 Pin)

D-11, DIP Saw Resonator (3 Pin)

TO-39, DIP Saw Resonator ( 3 Pin )

Series 6AW, SMD 3225 Saw Resonator

HC-49SMD Saw Resonator

SMD QCC4A SAW Resonator (5.0*3.5)

SMD DCC6C SAW Resonatorr (3*3)

SMD DCC6 SAW Resonator (3.8*3.8)

SMD QCC8C SAW Resonator (5.0*5.0)

SMD 2016 SAW Resonator（2 Pin）

SMD 1814 SAW Resonator

SMD 6026 SAW Resonator

Saw Filter

Series 5AW, SMD 2520 SAW Filter

TO-39, DIP SAW Filter (3 Pin)

SMD DCC6C SAW Filter (3*3)

SMD DCC6 SAW Filter (3.8*3.8)

SMD QCC8B SAW Filter (3.8*3.8)

SMD QCC8C SAW Filter (5.0*5.0)

SMD QCC8D SAW Filter (3*3)

QCC12 SAW Filter（13.3*6.5）

MEMS Oscillator-Low Power

SJK8008-2016 MEMS Oscillator

SJK8008-2520 MEMS Oscillator

SJK8008-3225 MEMS Oscillator

SJK8008-5032 MEMS Oscillator

SJK8008-7050 MEMS Oscillator

SJK8009-2016 MEMS Oscillator

SJK8009-2520 MEMS Oscillator

SJK8009-3225 MEMS Oscillator

SJK8009-5032 MEMS Oscillator

SJK8009-7050 MEMS Oscillator

SJK8208-5032 MEMS Oscillator

SJK8209-2520 MEMS Oscillator

SJK9005-2520 MEMS Oscillator

SJK8918-High Temperature Oscillator （-40~+125℃）

SJK8009-115 to 137 MHz, Low Power Oscillator

Differential MEMS Oscillator

SJK9121-3225 MEMS LVPECL Output Oscillator

SJK9121-3225 MEMS LVDS Output Oscillator

SJK9365-3225 MEMS HCSL Output Oscillator

SJK9121-5032 MEMS LVPECL Output Oscillator

SJK9121-5032 MEMS LVDS Output Oscillator

SJK9365-5032 MEMS HCSL Output Oscillator

SJK9121-7050 MEMS LVPECL Output Oscillator

SJK9121-7050 MEMS LVDS Output Oscillator

SJK9365-7050 MEMS HCSL Output Oscillator

SJK9366-1 to 220 MHz, Low Jitter Differential XO,LVDS, LVPECL & LVDS

SJK9121-1 to 220 MHz, ±10 to ±50 ppm Differential XO LVDS & LVPECL

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original

Brand Name:	SJK
Model Number:	SMD 5032 MEMS 8009 106.25 mhz
MOQ:	3000 pieces
Price:	$0.35 - $0.50/pieces
Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SJK

Model Number:

SMD 5032 MEMS 8009 106.25 mhz

Supplier Type:

Original Manufacturer

Voltage - Supply:

1.8V, 2.5V ~ 3.3V

Base Resonator:

MEMS

Application Level:

Industrial

Type:

MEMS Programmable Oscillator

Package Type:

SMD

Frequency Range:

106.25 Mhz

Nominal Frequency:

106.25 Mhz

Frequency Tolerance:

±20ppm~±50ppm, Or Specify

Operating Temperature:

-40~+85℃

Dimensions:

2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 Mm

Frequency Stability:

±20ppm

Frequency:

106.25 Mhz

Minimum Order Quantity:

3000 pieces

Price:

$0.35 - $0.50/pieces

Packaging Details:

Bulk pack for DIP products, Tape and Real for SMD product

Supply Ability:

1000000 Piece/Pieces per Month

Highlight:

106.25 Mhz MEMS Programmable Oscillator

15pf MEMS Programmable Oscillator

SJK8009 MEMS Programmable Oscillator

Product Description

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 0

SJK8009 Programmable Oscillator

Model: SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Specifications and Dimensions

Features of SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Frequency range from 110MHz to 137MHz

Excellent frequency stability as low as ±20ppm

Low power consumption of 4.9mA at 1.8V

Standby mode for longer battery life

Fast startup time of 5ms

LVCMOS/HCMOS output type

Size with 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm×mm

Automatic mounting and reflow soldering

Applications: DSC, Ethernet, USB, SATA, IP Cam, Medical electronics, Audio & Video, Data center, etc

RoHS Compliant /Pb Free

Electronical Specifications of SJK8009 Series Low Power MHz MEMS Programmable Oscillator

Item/Type	SJK8009
Output Type	LVCMOS/HCMOS
Frequency Range	110~137MHz
Supply Voltage	1.8V~3.3V
Frequency Stability	±20ppm~±50ppm, or specify
Current Consumption	7.5mA Max.
Standby Current	4.3mA Max.
OE Disable Current	4.2mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)	10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)	30%Vcc /70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	122ns Max.
Resume Time	5ms Max.
RMS Period Jitter	4pS Max.
Peak to Peak Period Jitter	30pS Max.
RMS Phase Jitter (12KHz~20MHz)	2pS Max.
Storage Temperature	-60~+150℃
Packing Unit	2016 /2520 /3225: 3000pcs./reel 5032 /7050: 1000pcs./reel

Pin Functions & Dimensions:

REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.

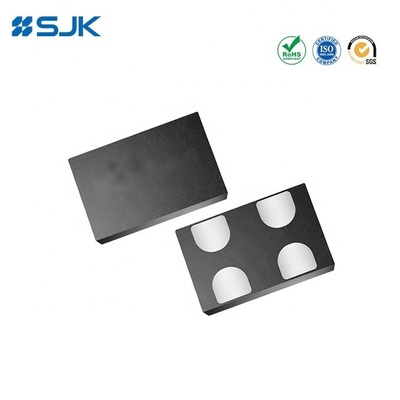

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 3

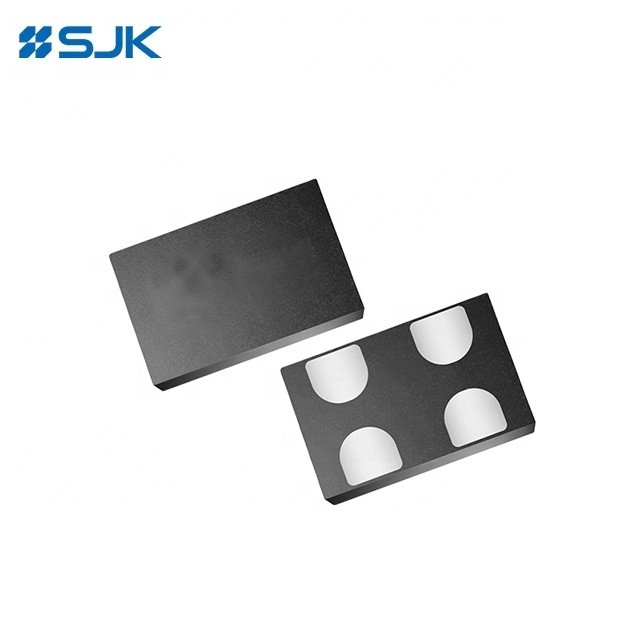

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 4

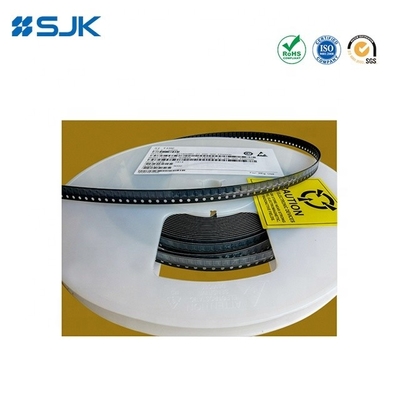

SMD 5032 MEMS Programmable Oscillator 15pf 106.25 Mhz LVCMOS 20ppm SJK8009 Original 10

Tags:

Crystal Resonator

Series 6A, HC-49/U Crystal Unit

Series 6B, HC-49S/SS Crystal Unit

Series 6C, HC-49SMD/49SSMD Crystal Unit

Series 6P HC-M49SMD Crystal Unit

Series 6D, UM-1 Crystal Unit

Series 6Z, Cylinder Type Crystal Unit

Series 7S, SMD 1210 Seam Crystal Unit

Series 7Y, SMD 1612 Seam Crystal Unit

Series 7F, SMD 2016 Seam Crystal Unit

Series 7E, SMD 2520 Seam Crystal Unit

Series 7U, SMD 3225 Seam Crystal Unit

Series 7I, SMD 5032 Seam Crystal Unit

Series 6G, SMD 6035 Seam Crystal Unit

Series 6F, SMD 7050 Seam Crystal Unit

Series 7Z, SMD 2520 Glass Crystal Unit

Series 7V, SMD 3225 Glass Crystal Unit

Series 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Glass Crystal Unit

32.768KHz Tuning Fork Crystal

Series 7K, SMD 1610 Tuning Fork Crystal

Series 7R, SMD 2012 Tuning Fork Crystal

Series 7L, SMD 3215 Tuning Fork Crystal

Series 7M, SMD 7015 Tuning Fork Crystal

Series 6LC, SMD 8038 Tuning Fork Crystal

Series 6LB, SMD 206B Tuning Fork Crystal

Series 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Series 6K8, Through-Hole 3*8mm Tuning Fork Crystal

Crystal Oscillator

Series 8N, SMD 1612 Crystal Oscillator

Series 1N, SMD 2016 Crystal Oscillator

Series 2N, SMD 2520 Crystal Oscillator

Series 3N, SMD 3225 Crystal Oscillator

Series 7N, SMD 5032 Crystal Oscillator

Series 6N, SMD 7050 Crystal Oscillator

Series 9N, SMD 1490 Crystal Oscillator

Series 6MF, Thru-Hole Full Size Crystal Oscillator

Series 6MH, Thru-Hole Half Size Crystal Oscillator

Differential Oscillator

Series 3J, SMD 3225 LVPECL Output Oscillator

Series 3D, SMD 3225 LVDS Output Oscillator

Series 3H, SMD 3225 HCSL Output Oscillator

Series 5J, SMD 5032 LVPECL Output Oscillator

Series 5D, SMD 5032 LVDS Output Oscillator

Series 5H, SMD 5032 HCSL Output Oscillator

Series 7J, SMD 7050 LVPECL Output Oscillator

Series 7B, SMD 7050 LVDS Output Oscillator

Series 7H, SMD 7050 HCSL Output Oscillator

Series 9J, SMD 1490 LVPECL Output Oscillator

Series 9D, SMD 1490 LVDS Output Oscillator

OCXO

Series 1X, SMD 9*7 Size OCXO

Series 9X, SMD 14*9*5 Size OCXO

Series 5X, SMD 25*22*11 Size OCXO

Series 2X, Thru-hole OCXO

Series 3X, Thru-hole 20*20 OCXO

Series 9M, Thru-hole 25*25*12 OCXO

Series 6X,Thru-hole 36*27*12 Size OCXO

TCXO/VC-TCXO

Series 7X, SMD 2016 TCXO / VC-TCXO

Series 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sine Wave

Series 7T, SMD 3225 TCXO / VC-TCXO CMOS

Series 5T, SMD 5032 TCXO / VC-TCXO

Series 8T, SMD 7050 TCXO / VC-TCXO

Series 9T, SMD 1490 TCXO / VC-TCXO

Series 6T, Thru-hole TCXO / VC-TCXO

Series 1T SMD 1612 TCXO/VC-TCXO

Series 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Series 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Series 3S, SMD 3225 CMOS Output VCXO

Series 3P, SMD 3225 LVPECL Output VCXO

Series 5S, SMD 5032 CMOS Output VCXO

Series 5P, SMD 5032 LVPECL Output VCXO

Series 5V, SMD 5032 LVDS Output VCXO

Series 6S, SMD 7050 CMOS Output VCXO

Series 7P, SMD 7050 LVPECL Output VCXO

Series 6V, SMD 7050 LVDS Output VCXO

Series 9S, SMD 1490 CMOS Output VCXO

Series 9P, SMD 1490 LVPECL Output VCXO

Series 9X, SMD 1495 Size OCXO

Series 5X, SMD 252211 Size OCXO

Series 9M, Thru-hole 252512 OCXO

Series 6X,Thru-hole 362712 Size OCXO
