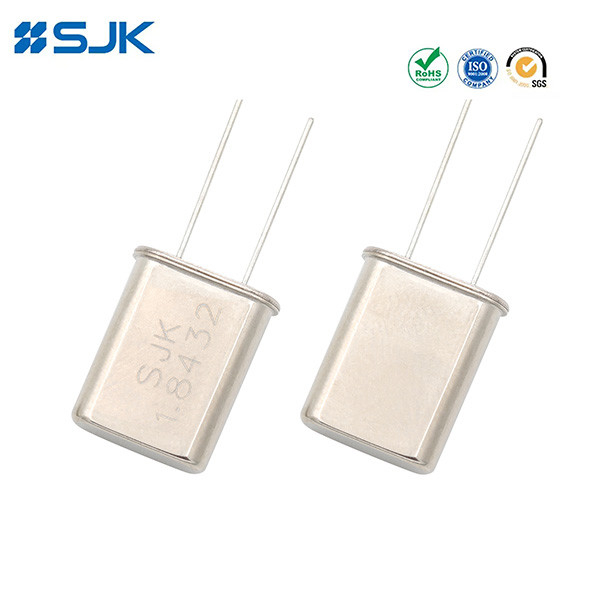

Name: 6A Series HC-49/U Crystal Unit 1MHz To 150MHz For High Frequency Applications
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: HC-49/U Crystal Unit
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	HC-49/U Crystal Unit
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

HC-49U Crystal Unit

Frequency Range:

1.8432MHz To 150MHz

Size:

10.7*4.5*13mm

Load Capacitance:

16pF, 18pF, 20pF, Or Specify

Operating Temperature:

-40~+85°C

Storage Temperature:

-55~+125°C

Supply Ability:

30K pcs per Month

Highlight:

1MHz Crystal Resonator

Crystal Resonator 150MHz

Crystal Units 20pF

Product Description

6A Series HC-49/U Crystal Unit 1MHz To 150MHz for High Frequency Applications and Tight Tolerance

Features:

Standard HC-49/U Metal Package
Wide frequency range from 1.8432MHz up to 150MHz
Tight tolerance and stability
High frequency pullability and lower equivalent series resistance
Low cost and highly mass production capability
Application for TV, STB, LCDM, Communications, Cable modem, etc
RoHS Compliant / Pb Free

Electronic Specifications:

Item	6A Series HC-49/U Crystal Unit
Frequency Range	1.8432MHz to 150MHz
Load Capacitance	16pF, 18pF, 20pF, 22pF, or specify
Drivel Level	100µW Typical, 500µW max.
Frequency Tolerance	±30ppm, or specify
Frequenc Stability Over Temperature	±50ppm, or specify
Operating Temperature	-20°C to +70°C, -40°C to +85°C, or specify
Storage Temperature	-40°C to +85°C or -55°C to +125°C
Package Size	10.74.513.2mm

Equivalent Series Resistance (ESR):

Fundamental		3rd Overtone		5th Overtone
1.843MHz~2.0MHz	500Ω max.	24.0MHz~64.0MHz	60Ω max.	64.0MHz~122.0MHz	80Ω max.
2.0MHz~2.4MHz	450Ω max.
2.4MHz~3.0MHz	350Ω max.
3.0MHz~4.0MHz	90Ω max.			7th Overtone
4.0MHz~5.0MHz	70Ω max.			122.0MHz~150.0MHz	120Ω max.
5.0MHz~8.0MHz	60Ω max.
8.0MHz~10.0MHz	30Ω max.
10.0MHz~50.0MHz	25Ω max.

Dimensions:

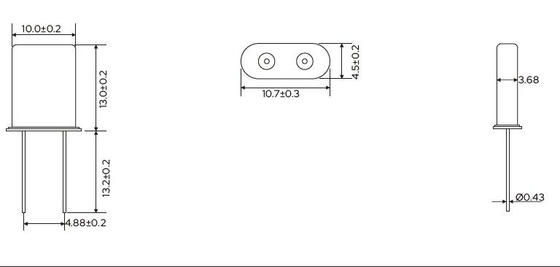

HC49/U-Crystal-Unit-Dimension
