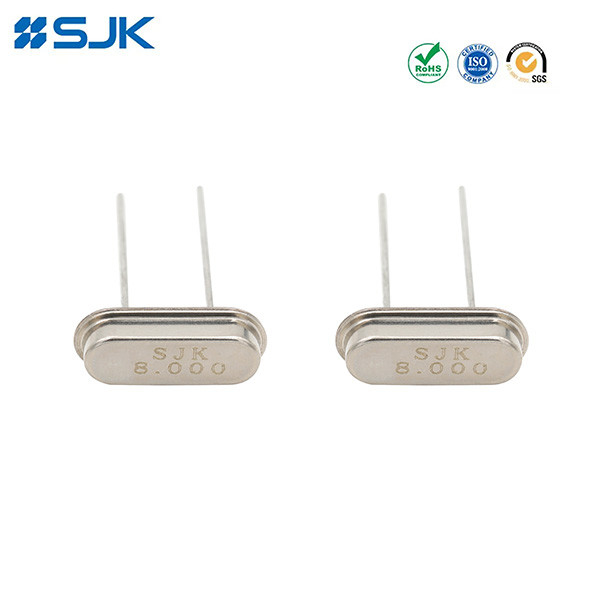

Name: 6B Series HC-49S/SS Crystal Unit 3.0MHz To 100.0MHz With Tight Tolerance And Stability For Security Systems
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: HC-49S Crystal Unit
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	HC-49S Crystal Unit
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

HC-49S Crystal Unit

Frequency Range:

3.0MHz To 100MHz

Package Size:

11.0*4.5*3.0mm

Load Capacitance:

16pF, 18pF, 20pF, Or Specify

Operating Temperature:

-40~+85°C

Frequency Tolerance:

10ppm, 20ppm, Or Specify

Supply Ability:

30K pcs per Month

Highlight:

3.0MHz Crystal Units

100.0MHz Crystal Units

16 mhz resonator for Security Systems

Product Description

6B Series HC-49S/SS Crystal Unit 3.0MHz To 100.0MHz with Tight Tolerance and Stability for Security Systems

Features:

Standard HC-49S Metal Package
Fundamental and 3rd Overtone Crystal Design
Frequency Range 3.0MHz To 100MHz
Package size with 11.0*4.5*3.0mm or 11.0*4.5*2.0mm available
Tight tolerance and stability
Low cost and highly mass production capability
Application for PC, Consumer electronics, Automotive electronics, Gaming equipment, Industrial control, Security, PC peripherals, Wireless communications, etc
RoHS Compliant / Pb Free

Electronic Specifications:

Item	6B Series HC-49S Crystal Unit
Frequency Range	3.0MHz to 100MHz
Load Capacitance	16pF, 18pF, 20pF, 22pF, or specify
Drivel Level	100µW Typical, 500µW max.
Frequency Tolerance	±10ppm, or specify
Frequenc Stability Over Temperature	±30ppm, or specify
Operating Temperature	-20°C to +70°C, -40°C to +85°C, or specify
Storage Temperature	-40°C to +85°C or -55°C to +125°C
Package Size	11.04.53.0/2.0mm

Equivalent Series Resistance (ESR):

Fundamental		3rd Overtone
3.0MHz~3.4MHz	300Ω max.	27.0~30.0MHz	150Ω max.
3.5MHz~6.0MHz	120Ω max.	30.0~50.0MHz	100Ω max.
6.0MHz~10.0MHz	60Ω max.	50.0~100.0MHz	80Ω max.
10.0~48.0MHz	40Ω max.

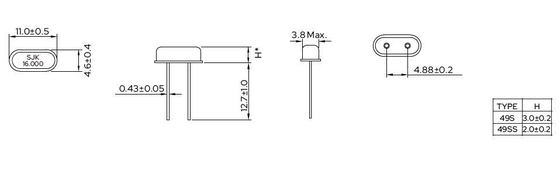

Dimensions:

HC49S-Crystal-Unit
