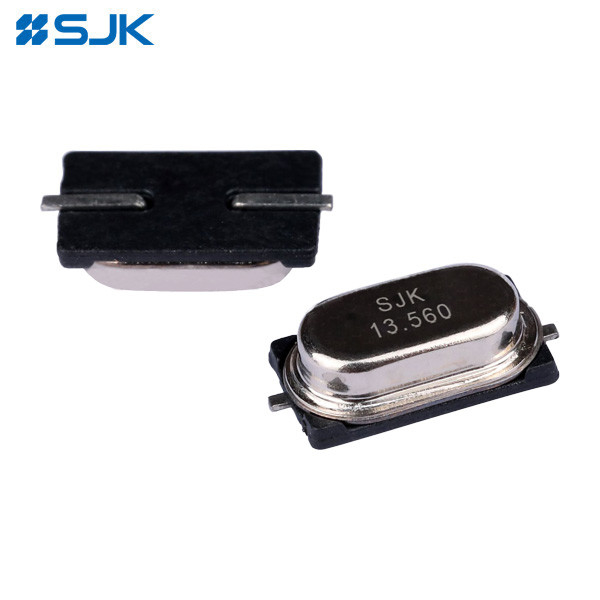

Name: 6P Series M49SMD Crystal Unit 7 X 4mm Size 6.7458MHz To 50MHz For Industrial Devices
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: M49SMD
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	M49SMD
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

6P Series M49SMD Crystal Unit

Frequency Range:

6.7458MHz To 50MHz

Overtone Order:

Fundamental

Package Size:

7.0*4.0*2.0mm

Load Capacitance:

9pF, 12pF, 20pF, Or Specify

Green Product:

RoHS Compliant, Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

M49SMD quartz crystal resonator

7 x 4mm quartz crystal resonator

6.7458MHz crystal quartz oscillator

Product Description

6P Series M49SMD Crystal Unit 7*4mm size 6.7458MHz To 50MHz High Environmental Performance for Industrial Devices

Features:

AT-cut crystal inside
Mini HC-49SMD package, size with 7.0*4.0*2.0mm
Frequency range from 6.7458MHz to 50MHz
High frequency stability
High reliable environmental performance
Allowing for high density surface mounting
RoHS Compliant, Pb-Free
Application for IoT device, Security, Network communication, Smart home, Smart wearable, Industrial devices, Consumer electronics, etc.

Electronic Specifications:

Item	6P Series M49SMD Crystal Unit
Frequency Range	6.7458MHz To 12MHz	12MHz To 16MHz	16MHz To 20MHz	20MHz To 50MHz
Overtone Order	Fundamental
Frequency Tolerance	±10ppm to ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm to ±30ppm, or specify
Load Capacitance	9pF, 12pF, 20pF, or specify
Series Resistance	100Ω max	60Ω max	50Ω max	40Ω max
Shunt Capacitance	3pF max.
Drive Level	10μW Typ.
Insulaton Resistance	500MΩ min 100VDC/+15VDC
Aging	±3ppm /Year max.
Package Size	7.04.02.0mm
Packing Unit	1000pcs/Reel

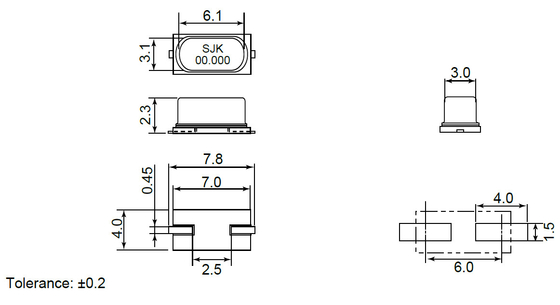

Dimensions:

6P Series M49SMD Crystal Unit 7 X 4mm Size 6.7458MHz To 50MHz For Industrial Devices 0
