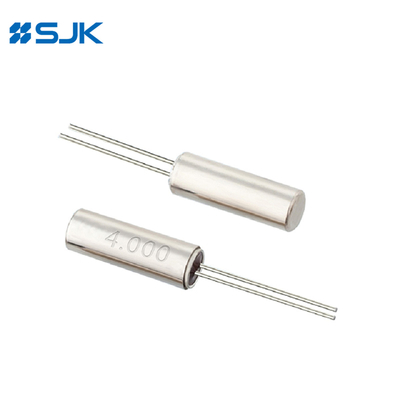

Name: Operating Temperature Range Of -20 - 70C -40 - 85C Series 6Z Cylinder Type Crystal Unit
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 2*6、3*8
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	26、38
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	3000pcs
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS,ROHS,REACH

Type:

6Z Cylindric Crystal

Frequency Range:

3.2MHz To 50MHz

Overtone Order:

Fundamental /3rd Overtone

Size:

2*6 ,3*8,

Packing Unit:

1000pcs.

Applications:

IoT, Security, PC And Peripherals, Microprocessor Systems, Instrumentation, Automotive Electronics, Etc.

Frequency Aging:

+/-5ppm Max

Shunt Capacitance:

1.0pF Max

Shock Resistance:

5000G Max

Drive Level Dependence:

+/-10ppm Max

Load Capacitance:

8pF To 32pF

Storage Temperature Range:

-55°C To +125°C

Operating Temperature Range:

-40°C To +85°C

Vibration Resistance:

10G Max

Aging:

+/-3ppm Max

Frequency Tolerance:

+/-10ppm

Supply Ability:

30Kpcs per Month

Highlight:

3.2MHz crystal ceramic resonator

50MHz crystal ceramic resonator

Crystal Units 1.0pF

Product Description

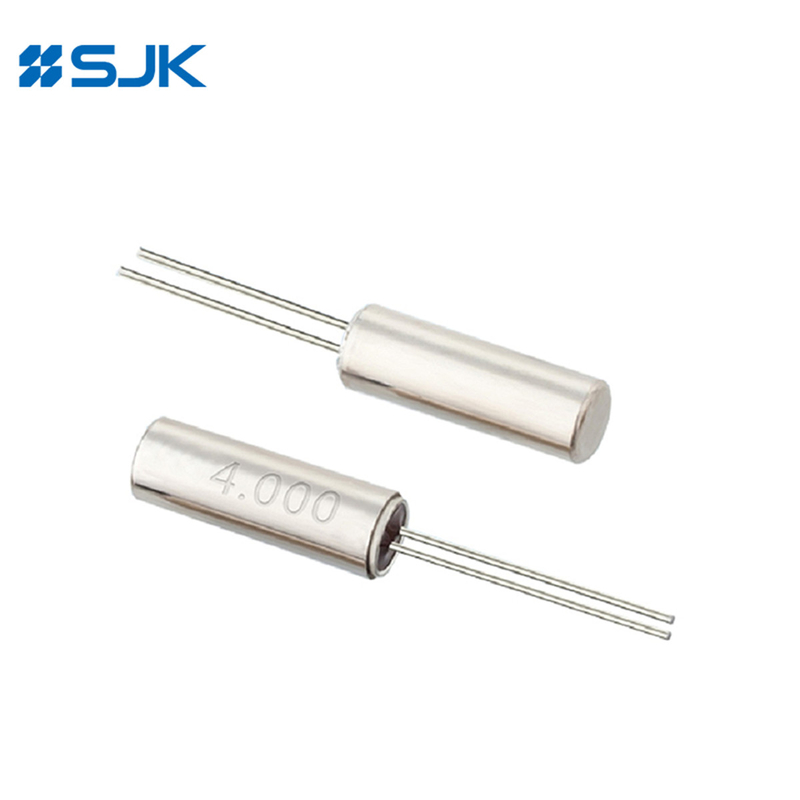

Operating Temperature Range of -20- 70C -40- 85C Series 6Z Cylinder Type Crystal Unit

Features

Wide frequency range from 3.579MHz to 50MHz

High shock tolerance

Small size

Reliable frequency stability

Low power consuming

Applications: IoT, Security, PC and Peripherals, Microprocessor Systems, Intrumentation, Automotive Electronics, etc

Specifications

Type	6Z Cylindric Crystal
Size	3×9mm / 3×10mm	2×6mm / 3×8mm
Frequency Range	3.579~4.0MHz	4.0~50MHz
Load Capacitance	12pF, 16pF, 20pF, or specify
Drive Level	10~+100μW
Frequency Tolerance	±10~±30ppm, or specify
Insulation Resistance	500MΩ AT DC200V
Series Resistance	40~180Ω (3.579~30MHz)	80Ω (30~50MHz)
Operating Temperature	-20~+70℃, -40~+85℃
Storage Temperature	-40~+85℃
Shunt Capacitance	5pF Typ.
Aging (at 25℃)	±3ppm /Year Max.
Packing Unit	1000pcs.

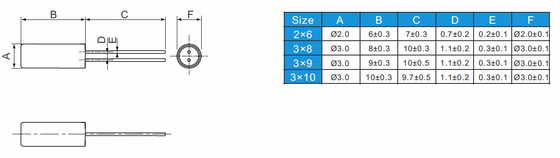

Dimensions [mm]

NOTE 1: Use tweezers if leads need to be bent.

NOTE 2: Soldering the cylinder body can deteriorate the crystal characteristics and should be avoided. Use rubber adhesive instead or leave without soldering.
