Name: Low Profile SMD1210 Crystal Unit For High Frequency Range Of 26MHz To 96MHz For Wireless Communication System Device
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD1210 Crystal Unit
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD1210 Crystal Unit
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

7S Series SMD1210 Crystal Unit

Frequency Range:

26MHz To 96MHz

Size:

1.2*1.0*0.3mm

Overtone Order:

Fundamental

Load Capacitance:

8pF, 10pF, 12pF, Or Specify

Green Product:

RoHS Compliant, Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

Low Profile quartz crystal resonator

SMD1210 quartz crystal resonator

crystal units glass 96MHz

Product Description

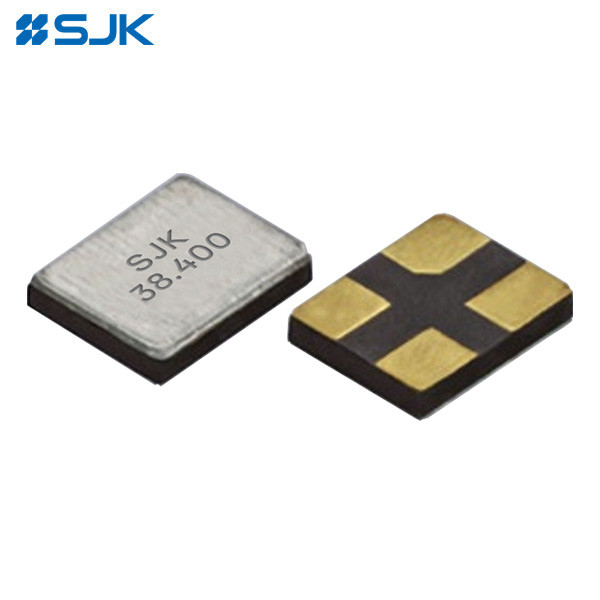

Low Profile SMD1210 Crystal Unit for High Frequency Range of 26MHz to 96MHz For Wireless Communication System Device

Features:

1210 size ultra miniature and lightweight SMD crystal units with low profile of 0.3mm
Excellent heat resistance, High precision and high reliability
Frequency range from 26MHz To 96MHz
High reliable environmental performance
Allowing for high density surface mounting.
RoHS and REACH Compliant , Pb-free
Applications for cell phone, Wireless communication, Wearable device, IoT device, AR/VR, Medical devices, Bluetooth module, etc.

Electronic Specifications:

Item	7S Series SMD1210 Crystal Unit
Frequency Range	26MHz~32MHz	32MHz~60MHz	60MHz~96MHz
Overtone Order	Fundamental
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Drive Level	10µW, 100µW, or specify
Load Capacitance	6~20pF, or specify
Series Resistance	150Ω max.	100Ω max.	60Ω max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Aging	±3ppm/Year max.
Package Size	1.21.00.33mm
Packing Unit	3000pcs/Reel

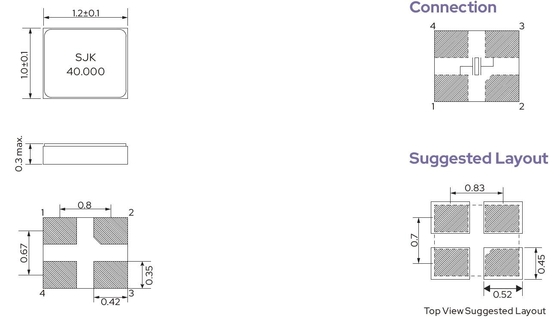

Dimensions:

Low Profile SMD1210 Crystal Unit For High Frequency Range Of 26MHz To 96MHz For Wireless Communication System Device 0
