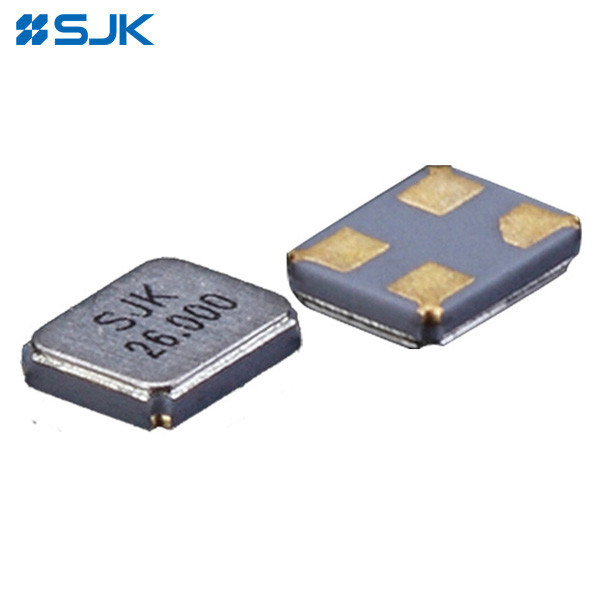

Name: Ultra Miniature 7Y Series SMD1612 Crystal Unit 24MHz - 80MHz For Communication Devices
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7Y25000M6Z3530A6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7Y25000M6Z3530A6
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Document:

7Y-1612.pdf

Type:

7Y Series SMD1612 Crystal Unit

Frequency Range:

24MHz To 80MHz

Size:

1.6*1.2*0.35mm

Overtone Order:

Fundamental

Load Capacitance:

8pF, 10pF, 12pF, Or Specify

Green Product:

RoHS Compliant, Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

Ultra Miniature quartz crystal resonator

SMD1612 quartz crystal resonator

crystals and resonators 80MHz

Product Description

Ultra Miniature 7Y Series SMD1612Crystal Unit 24MHz-80MHz High Precision And High Reliability For Communication devices

Features:

1612 size ultra miniature and lightweight SMD crystal units with low profile of 0.35mm
Excellent heat resistance, High precision and high reliability
Frequency range from 24MHz To 80MHz
High reliable environmental performance
Extremely good for reducing EMI effect
RoHS and REACH Compliant , Pb-free
Applications for wearable device, IoT device, Wireless communications, Smart phone, Bluetooth module, PC and peripherals, etc.

Electronic Specifications:

Item	7Y Series SMD1612 Crystal Unit
Frequency Range	24MHz~32MHz	32MHz~38MHz	38MHz~80MHz
Overtone Order	Fundamental
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Drive Level	100µW typ., 200µW max.
Load Capacitance	8pF, 10pF, 12pF, or specify
Series Resistance	150Ω max.	100Ω max.	80Ω max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Aging	±3ppm/Year max.
Package Size	1.61.20.35mm
Packing Unit	3000pcs/Reel

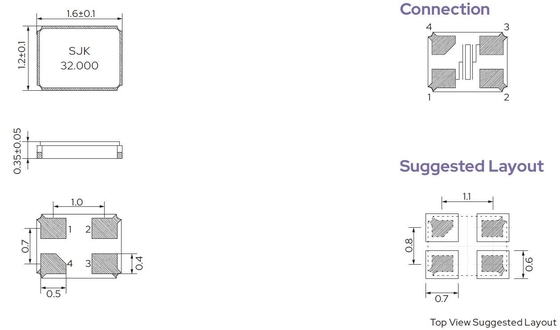

Dimensions:

SMD1612-Crystal-Unit-Dimension
