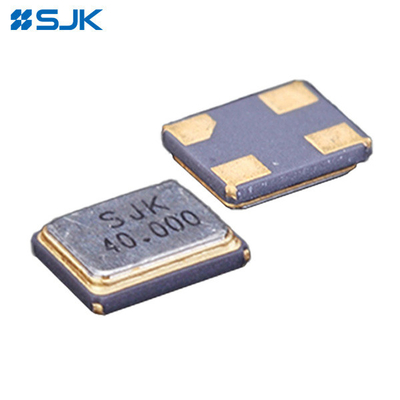

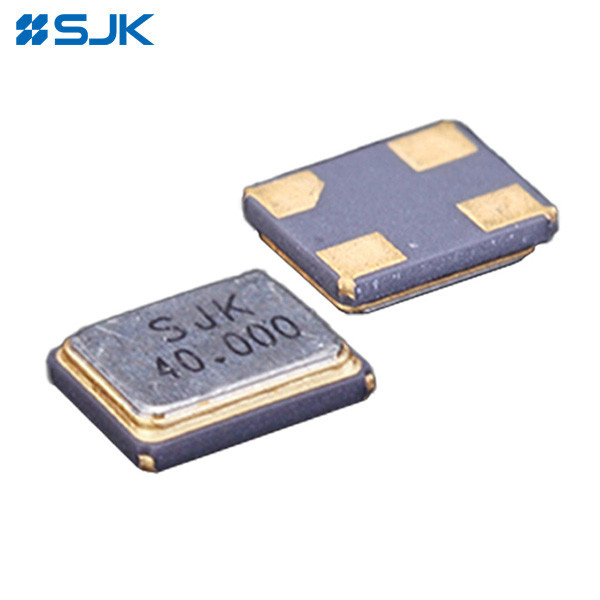

Name: 7E Series SMD2520 Crystal Unit 12MHz To 96MHz High Precision For Wireless Communications
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD2520 Crystal Unit
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD2520 Crystal Unit
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

7E Series SMD2520 Crystal Unit

Frequency Range:

12~96MHz

Size:

2.5*2.0*0.6mm

Overtone Order:

Fundamental

Load Capacitance:

8pF, 10pF, 12pF, Or Specify

Green Product:

RoHS Compliant /Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

SMD2520 Crystal Resonator

12MHz Crystal Resonator

96MHz crystal units limited

Product Description

7E Series SMD2520 Crystal Unit 12MHz To 96MHz High Precision And High Reliability for Wireless Communications

Features:

High precision and high frequency stability
Industry Standard Package:2.5 x 2.0 x 0.55 mm
Frequency range from 12MHz To 96MHz
Extremely good for reducing EMI effect
Provide clean and stable reference clock to a wide variety of ICs
RoHS and REACH Compliant , Pb-free
Applications for Wireless Communication, CPE, Router, Ethernet Switch, Gateway, Set-Top Box, Notebook, Tablet, Server,Industry control, etc.

Electronic Specifications:

Item	7E Series SMD2520 Crystal Unit
Frequency Range	12MHz~16MHz	16MHz~20MHz	20MHz~30MHz	30MHz~60MHz	60MHz~96MHz
Overtone Order	Fundamental
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Drive Level	100µW typ., 300µW max.
Load Capacitance	6~20pF, or specify
Series Resistance	180Ω max.	100Ω max.	80Ω max.	60Ω max.	50Ω max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Aging	±3ppm/Year max.
Package Size	2.52.00.55mm
Packing Unit	3000pcs/Reel

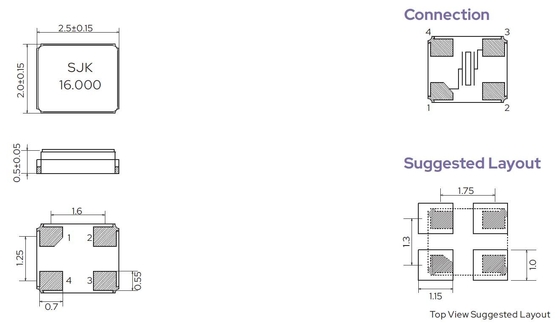

Dimensions:
