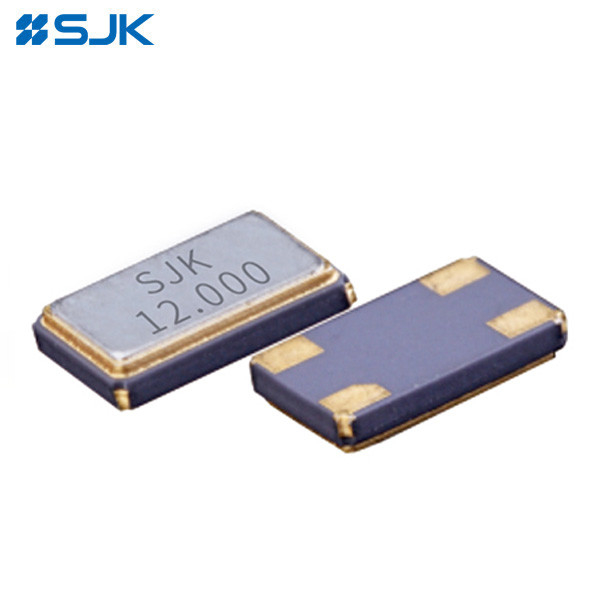

Name: 7I Series SMD5032 Seam Crystal Unit 8MHz To 125MHz High Stability And Reliability With Low Cast
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 7I Series SMD5032 Crystal Unit
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	7I Series SMD5032 Crystal Unit
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Item:

7I Series SMD5032 Crystal Unit

Frequency Range:

8MHz To 125MHz

Size:

5.0*3.2*0.9mm

Overtone Order:

Fundamental /3rd Overtone

Load Capacitance:

8pF~32pF

Green Product:

RoHS Compliant /Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

SMD5032 quartz crystal resonator

quartz crystal resonator 8MHz

quartz crystal unit 125MHz

Product Description

7I Series SMD5032 Seam Crystal Unit 8MHz To 125MHz High stability and Reliability With Low Cast

Features:

5032 size miniature SMD crystal units with low profile of 0.9mm
Ceramic package and metal lid assures high precision and reliability
Frequency range from 8MHz to 125MHz
High frequency stability and releability
Excellent for reducing EMI effect
Application for PC, Server, PCMCIA, SONET, DSC, PDA, Pagers, Wireless communication set, Industrial automation, etc.
RoHS Compliant / Pb Free

Electronic Specifications:

Item	7I Series SMD5032 Crystal Unit
Frequency Range	8MHz~10MHz	10MHz~12MHz	12MHz~16MHz	16MHz~50MHz	50MHz~80MHz	80MHz~125MHz
Overtone Order	Fundamental				3rd Overtone
Load Capacitance	10pF, 16pF, 18pF, or specify (8pF~32pF)
Drive Level	10 μW ( typ.), 100 μW ( max.)
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Series Resistance	200Ω	100Ω	70	50Ω	60	80Ω
Operating Temperature	-20°C~+70°C, -40°C~+85°C, or specify
Storage Temperature	-55°C~+125°C
Package Size	5.03.20.9mm
Packing Unit	1000pcs/Reel

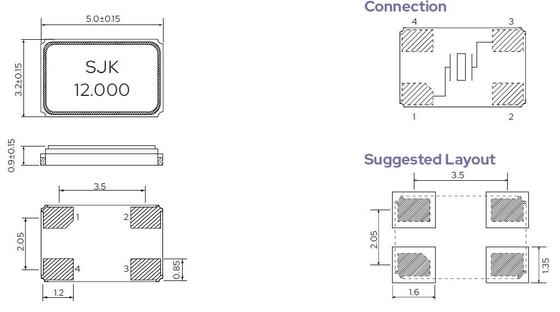

Dimensions:

SMD5032-Crystal-Unit-Dimension
