Name: 6G Series SMD6035 Crystal Unit 8MHz To 100MHz With 2Pads Or 4Pads SMD High Frquency Stability
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 6G Series SMD 6035 Crystal Unit
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	6G Series SMD 6035 Crystal Unit
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

6G Seris SMD 6035 Crystal Unit

Frequency Range:

8MHz To 100MHz

Size:

6.0*3.5*1.0mm

Overtone Order:

Fundamental /3rd Overtone

Pad:

2Pads Or 4Pads

Load Capacitance:

8pF~32pF

Supply Ability:

30K pcs per Month

Highlight:

SMD6035 Crystal Resonator

Crystal Resonator 8MHz

Crystal Unit 100MHz

Product Description

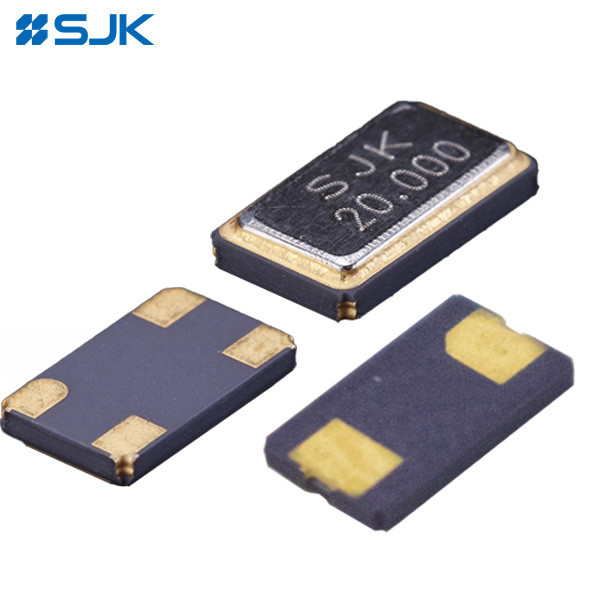

6G Series SMD6035 Crystal Unit 8MHz To 100MHz with 2Pads Or 4Pads SMD package High Frquency Stability And Reliability

Features:

6035 size miniature SMD crystal units with low profile of 1.0mm, 2-Pads or 4-Pads Package
Frequency range from 8MHz to 100MHz
High frequency stability and releability
Excellent for reducing EMI effect
Application for PC, Server, Storage, SONET, DSC, PDA, Wireless communication set, Bluetooth, etc.
RoHS Compliant / Pb Free

Electronic Specifications:

Item	6G Series SMD 6035 Crystal Unit
Frequency Range	8MHz~10MHz	10MHz~12MHz	12MHz~40MHz	40MHz~100MHz
Overtone Order	Fundamental			3rd Overtone
Load Capacitance	10pF, 16pF, 18pF, or specify (8pF~32pF)
Drive Level	10 μW ( typ.), 100 μW ( max.)
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Series Resistance	150Ω	80Ω	50Ω	70Ω
Operating Temperature	-20°C~+70°C, -40°C~+85°C, or specify
Storage Temperature	-55°C~+125°C
Package Size	6.03.51.0mm
Packing Unit	1000pcs/Reel

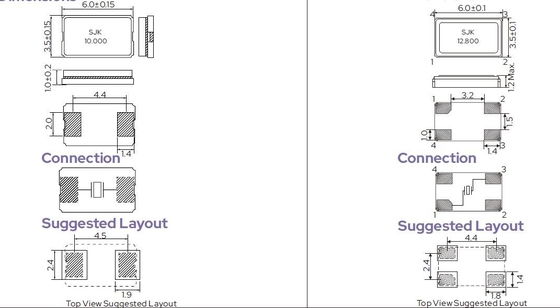

Dimensions:

SMD6035-Crystal-Unit-Dimension
