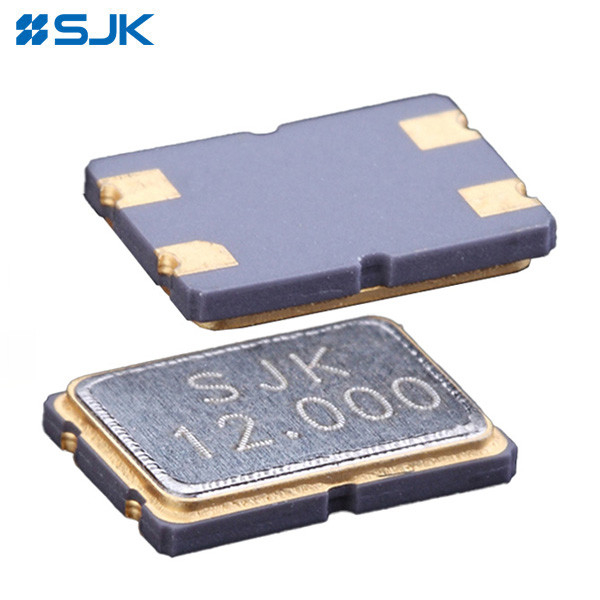

Name: 6F Series SMD7050 Crystals 6MHz To 160MHz For Communications And Industrial Control
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 6F Series SMD Crystal 7050
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	6F Series SMD Crystal 7050
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

6F Series SMD Crystal 7050

Frequency Range:

6MHz To 160MHz

Package Size:

7.0*5.0*1.2mm

Package Type:

SMD Type

Load Capacitance:

16pF, 18pF, 20pF, Or Specify

Green Product:

RoHS Compliant /Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

SMD7050 Crystal Resonator

Crystal Resonator 6MHz

8mhz resonator for Communications

Product Description

6F Series SMD7050 Crystals 6MHz to 160MHz High Stability and Reliability for Communications and Industrial Control

Features:

Exhibits extremely low aging with a high shock and vibration resistance
The entire package can be grounded via the top metal lid and the two bottom pads
7050 size miniature SMD crystal units with low profile of 1.2mm
Frequency range from 6MHz to 160MHz
High frequency stability and reliability
Automatic mounting and reflow soldering
Application for PC, Teleommunications, DSC, Wireless communication, Industril control, Automotive, etc
RoHS Compliant / Pb Free

Electronic Specifications:

Item	6F Series SMD 7050 Crystal Unit
Frequency Range	6MHz~8MHz	8MHz~11MHz	11MHz~14MHz	14MHz~50MHz	40MHz~50MHz	50MHz~160MHz
Overtone Order	Fundamental				3rd Overtone
Load Capacitance	16pF, 18pF, 20pF, or specify (8pF~32pF)
Drive Level	10 μW ( typ.), 100 μW ( max.)
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Series Resistance	80Ω	60Ω	50Ω	40Ω	80Ω	90Ω
Operating Temperature	-20°C~+70°C, -40°C~+85°C, or specify
Storage Temperature	-55°C~+125°C
Package Size	7.05.01.2mm
Packing Unit	1000pcs/Reel

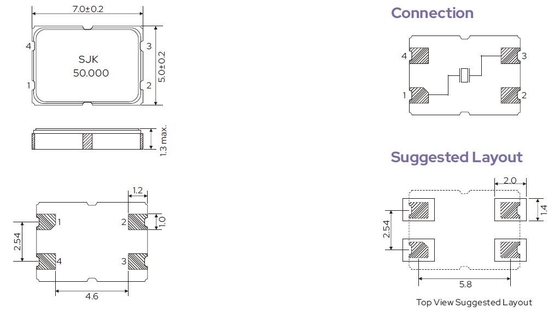

Dimensions:
