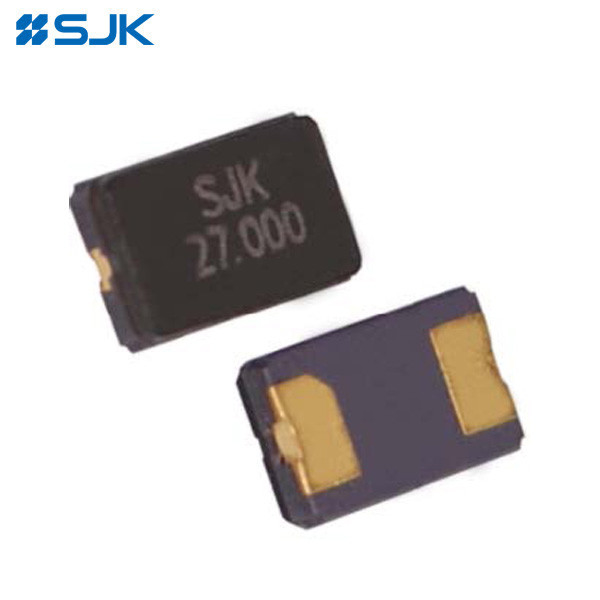

Name: High Precision 6I Series SMD5032 Glass Crystal Unit 8MHz To 54MHz For PC PDA DSC USB Interface Card
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD5032 Glass Sealed Crystal Unit
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD5032 Glass Sealed Crystal Unit
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

6I SMD5032 Glass Sealed Crystal Unit

Frequency Range:

8MHz To 64MHz

Size:

5.0*3.2*1.1mm

Overtone Order:

Fundamental

Load Capacitance:

1000pcs./Reel

Green Product:

RoHS Compliant, REACHA

Supply Ability:

30K pcs per Month

Highlight:

High Precision Crystal Resonator

8MHz Crystal Resonator

54MHz crystal units glass

Product Description

High Precision And Reliable 6I Series SMD5032 Glass Crystal Unit 8MHz To 54MHz for PC PDA DSC USB Interface Card

Features:

5032 size miniature SMD glass seam crystal units with low profile of 1.2mm
Frequency range from 8MHz to 54MHz
High precision and high frequency stability
High reliable environmental performance
Application for PC, PDA, DSC, USB interface card, Cars, Factory, GPS, Digital AV equipment, etc.
RoHS Compliant

Electronic Specifications:

Item	6I Series SMD5032 Glass Sealed Crystal Unit
Frequency Range	8MHz To 10MHz	10MHz To 12MHz	12MHz To 40MHz	40MHz To 54MHz
Overtone Order	Fundamental
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify (at 25°C)
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Load Capacitance	8pF, 10pF, 16pF, or specify
Drive Level	100μW Typical
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Series Resistance	150Ω max.	100Ω max.	80Ω max.	50Ω max.
Aging	±5ppm /Year max.
Package Size	5.03.21.2mm
Packing Unit	1000pcs./Reel

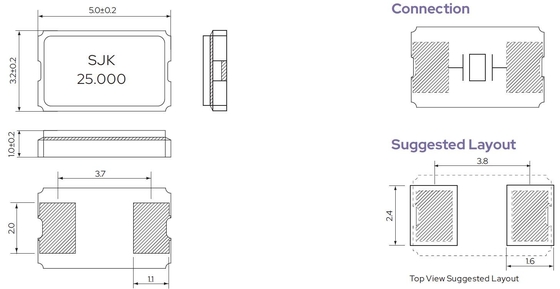

Dimensions:

High Precision 6I Series SMD5032 Glass Crystal Unit 8MHz To 54MHz For PC PDA DSC USB Interface Card 0
