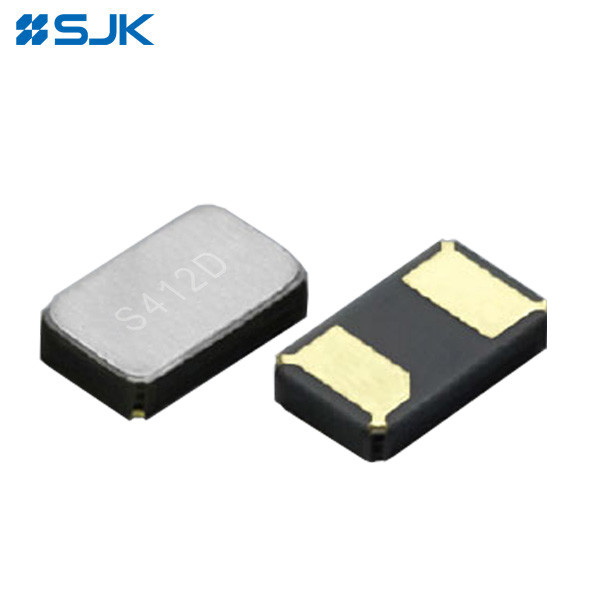

Name: 32.768KHz 7R Series 32.768KHz SMD2012 Tuning Fork Crystal Resonator High Precision And Reliable
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 32.768KHz SMD2012 Crystal Resonator
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	32.768KHz SMD2012 Crystal Resonator
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Item:

7R Series 32.768KHz SMD2012 Tuning Fork Crystal Resonator

Frequency:

32.768kHz

Size:

2.0*1.2*0.6

Load Capacitance:

6pF,7pF,9pF,12.5pF

Frequency Tolerance:

±20ppm, Or Specify

Green Product:

RoHS Compliant, Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

tuning fork crystal resonator SMD2012

High Precision tuning fork crystal resonator

32.768KHz tuning fork crystal oscillator

Product Description

32.768KHz Solutions Of 7R Series 32.768KHz SMD2012 Tuning Fork Crystal Resonator High Precision And Reliable

Features:

2012 size Ultra miniature and lightweight SMD tuning fork crystal units with low profile of 0.6mm
Overtone order: Fundamental
A ceramic package with metal lid providing high precision and reliability
Excellent heat resistance and environmental characteristics
Application for mobile communications, Consumer device, IoT, Smart communication device, Wave clock, Wireless communications, etc.
RoHS Compliant /Pb Free

Electronic Specifications:

32.768KHz SMD2012 Crystal Resonator
Item	7R Series 32.768KHz SMD2012 Tuning Fork Crystal Resonator
Nominal Frequency	32.768KHz
Overtone Order	Fundamental
Frequency Tolerance	±20ppm, or specify
Load Capacitance	6pF, 7pF, 9pF, 12.5pF, or specify
Series Resistance	90KΩ max.
Turnover Temperature	±25°C±5°C
Parabolic Coefficient	(-0.03±0.01)×10^-6/°C²max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Shunt Capacitance	1.3pF Typ.
Drive Level	0.5μW max.
Aging	±3ppm /Year max.
Packag Size	2.01.20.6mm
Packing Unit	3000pcs/Reel

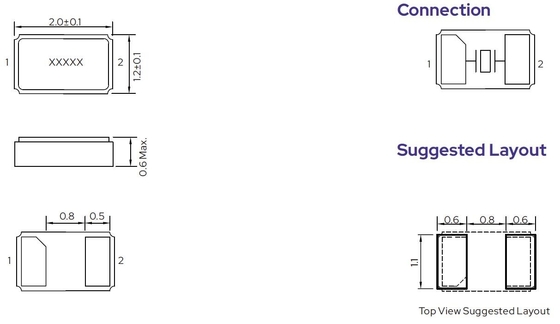

Dimensions:

32768KHz-SMD2012-Tuning-Fork-Crystal-Resonator-Dimension
