Name: 7L Series 32.768KHz SMD3215 Tuning Fork Crystal Resonator Hig Precision And Reliable For 32.768KHz Solutions
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 32.768KHz SMD3215 Crystal Resonator
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	32.768KHz SMD3215 Crystal Resonator
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Item:

7L Series 32.768KHz SMD3215 Crystal Resonator

Frequency:

32.768kHz

Size:

3.2*1.5*0.7mm

Load Capacitance:

7pF, 9pF, 12.5pF, Or Specify

Frequency Tolerance:

±20ppm, Or Specify

Green Product:

RoHS Compliant, Pb-Free

Supply Ability:

30K pcs per Month

Highlight:

SMD3215 tuning fork crystal resonator

tuning fork crystal resonator RoHS

tuning fork oscillator circuit SGS

Product Description

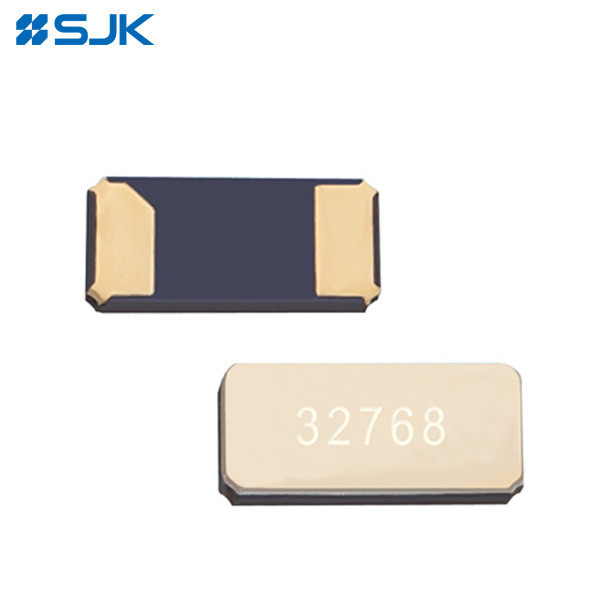

7L Series 32.768KHz SMD3215 Tuning Fork Crystal Resonator Hig Precision And Reliable For 32.768KHz Solutions

Features:

3215 size Ultra miniature and lightweight SMD tuning fork crystal units with low profile of 0.75mm
A ceramic package with metal lid providing high precision and reliability
Excellent heat resistance and environmental characteristics
Application for mobile communications, Consumer device, IoT, Smart card, Wave clock, Wireless communications, etc.
RoHS Compliant /Pb Free

Electronic Specifications:

32.768KHz SMD3215 Crystal Resonator
Item	7L Series 32.768KHz SMD3215 Tuning Fork Crystal Resonator
Nominal Frequency	32.768KHz
Overtone Order	Fundamental
Frequency Tolerance	±20ppm, or specify
Load Capacitance	7pF, 9pF, 12.5pF, or specify
Series Resistance	70KΩ max.
Turnover Temperature	±25°C±5°C
Parabolic Coefficient	(-0.03±0.01)×10^-6/°C²max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Shunt Capacitance	1.0pF Typ.
Drive Level	1μW max.
Aging	±3ppm /Year max.
Packag Size	3.21.50.75mm
Packing Unit	3000pcs/Reel

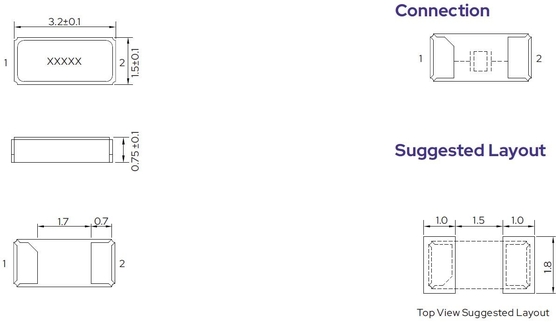

Dimensions:

7L Series 32.768KHz SMD3215 Tuning Fork Crystal Resonator Hig Precision And Reliable For 32.768KHz Solutions 0
