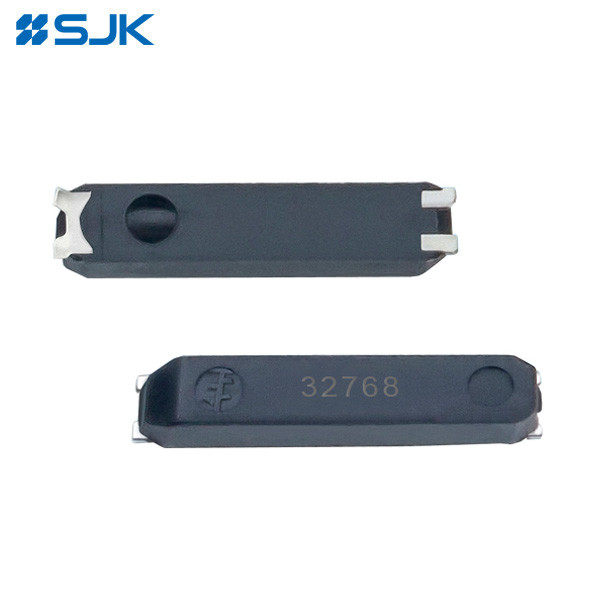

Name: 7M Series 32.768KHz SMD7015 Tuning Fork Crystal Resonator For High Precision And Stability 32.768KHz Solution
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 32.768KHz SMD7015 Crystal Resonator
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	32.768KHz SMD7015 Crystal Resonator
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Item:

7M Series 32.768KHz SMD7015 Crystal Resonator

Frequency Range:

32.768kHz

Size:

7.0*1.5*1.3mm

Load Capacitance:

12.5pF, Or Specify

Frequency Tolerance:

±20ppm, Or Specify

Green Product:

RoHS Compliant, REACH

Supply Ability:

30K pcs per Month

Highlight:

7M Series tuning fork crystal

SMD7015 tuning fork crystal

12.5pF crystal resonator tuning fork

Product Description

7M Series 32.768KHz SMD7015 Tuning Fork Crystal Resonator For High Precision And Stability 32.768KHz Solution

Features:

7.0x1.5mm package size, 2P pins, 32.768KHz solutions
32.768KHz crystal, small, ultra-thin
High precision frequency for better stability
Industrial grade temperature from -40 ℃ to +85 ℃
Excellent heat resistance and environmental characteristics
Automatic mount and reflow soldering
Compliant with RoHS and Reach standards, green and environmentally friendly

Electronic Specifications:

Item	7M Series 32.768KHz SMD7015 Crystal Resonator
Nominal Frequency	32.768KHz
Load Capacitance	7pF, 9pF, 12.5pF, or specify
Frequency Tolerance (@25ºC)	±20ppm, or specify
Series Resistance	65KΩ max.
Turnover Temperature	±25°C±5°C
Drive Level	1.0μW max.
Parabolic Coefficient	(-0.034±0.006)×10^-6/°C² max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Shunt Capacitance	0.8pF Typ.
Aging	±3ppm/Year max.
Size (L×W×H) (mm)	7.0×1.5×1.40
Packing Unit	3000pcs./Reel

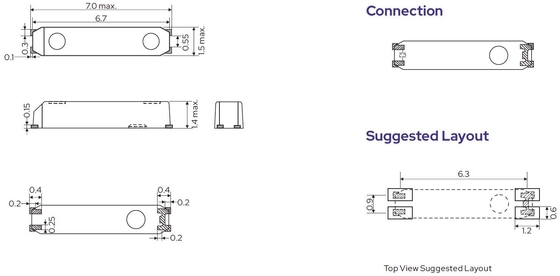

Dimension:

7M Series 32.768KHz SMD7015 Tuning Fork Crystal Resonator For High Precision And Stability 32.768KHz Solution 0
