Name: 32.768KHz Solutions 32.768KHz SMD 206B Tuning Fork Crystal For Wireless Communications And More
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 32.768KHz SMD2*6 Tuning Fork Crystal Resonator
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	32.768KHz SMD2*6 Tuning Fork Crystal Resonator
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Item:

6LB Series 32.768KHz SMD2*6 Tuning Fork Crystal Resonator

Frequency Range:

32.768kHz

Size:

2.0*6.0*2.0mm

Frequency Tolerance:

±20ppm, Or Specify

Load Capacitance:

6pF, 12.5pF, Or Specify

Green Product:

RoHS Compliant, REACH

Supply Ability:

30K pcs per Month

Highlight:

tuning fork crystal resonator 32.768KHz

tuning fork crystal resonator SMD 206B

tuning fork oscillator for Wireless Communications

Product Description

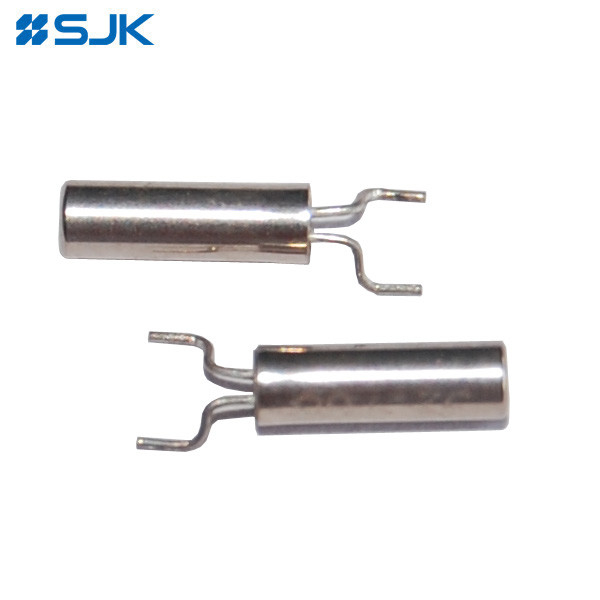

32.768KHz Solutions Of High Stability 32.768KHz SMD 206B Tuning Fork Crystal for Wireless Communications and More

Features:

Small size SMD cylindrical package with 2.0×6.0×2.0 mm
Fundamental overtone, 32.768KHz solution
High stability is guaranteed by hermetic sealing
High shock and vibration resistant
Small, proven surface mount technology package for reflow soldering
Excellent lead coplanarity for surface mounting
Application for IoT, Security, Toys, Watches, Audiovisual application, Consumer Electronics, E-book, etc
RoHS Compliant

Electronic Specifications:

32.768KHz SMD2*6 Crystal Resonator
Item	6LB Series 32.768KHz SMD2*6 Tuning Fork Crystal Resonator
Nominal Frequency	32.768KHz
Overtone Order	Fundamental
Frequency Tolerance	±20ppm, or specify
Load Capacitance	6pF, 7pF, 9pF, 12.5pF, or specify
Series Resistance	50KΩ max.
Turnover Temperature	±25°C±5°C
Parabolic Coefficient	(-0.034±0.005)×10^-6/°C²max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Shunt Capacitance	2.0pF Typ.
Drive Level	1.0μW max.
Aging	±3ppm /Year max.
Packag Size	2.06.02.0mm
Packing Unit	3000pcs/Reel

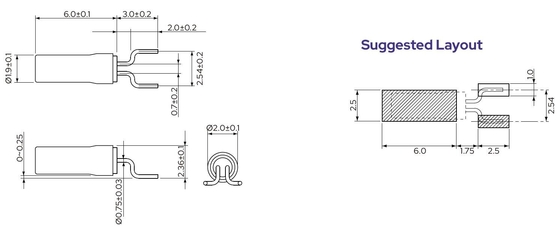

Dimensions:

32768KHz-SMD206B-Tuning-Fork-Crystal-Resonator-Dimension
