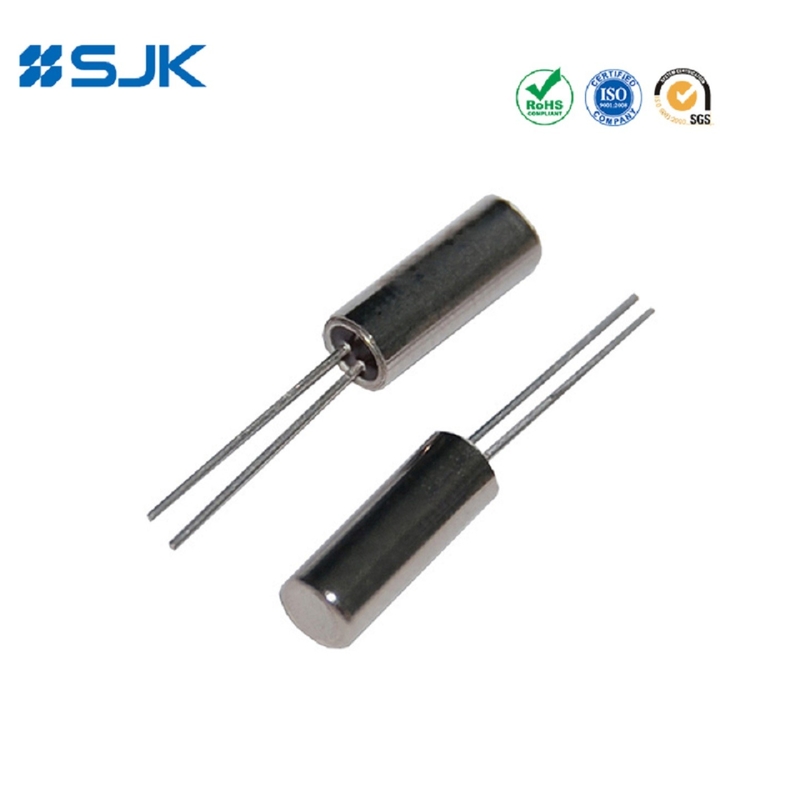

Name: 2*6mm Through Hole Crystal Resonator With 32.768KHz 12.5pF ±20ppm
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-6K632768KDY220ZA6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-6K632768KDY220ZA6
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

6K Cylindric Crystal

Frequency Range:

32.768kHz

Frequency Tolerance:

±20ppm

Size:

2.0*6.0mm

Load Capacitance:

12.5pF, Or Specify

Applications:

Smart Meters, IoT, Consumer Electronics, PC

Working Temperature:

-20~+70℃

Supply Ability:

70KKpcs/M

Highlight:

2 x 6mm tuning fork crystal resonator

tuning fork crystal resonator 12.5pF

tuning fork resonator for Smart Meters

Product Description

2*6mm Through Hole Crystal Resonator With 32.768KHz 12.5pF ±20ppm

Features

Tuning fork crystal of lead formed heat resistance

Frequency range from 30kHz to 1350kHz

Small size with 2.0×6.0 mm and 3.0×8.0 mm

High reliable environmental performance

Low power consuming

Application for Clock, Smart Meters, IoT, Consumer Products, PC, MCU

RoHS Compliant

Specifications

Type	6K Cylindric Crystal
Frequency Range	32.768kHz
Frequency Tolerance	±20ppm, or specify
Load Capacitance	6~12.5pF, or specify
Operating Temperature	-20 to +70℃, or specify
Storage Temperature	-55 to +125℃
Drive Level	1.0μW Max.
Turnover Temperature	±25℃±5℃
Parabolic Coefficient	(-0.034±0.006)×10-6/℃
Shunt Capacitance	1.5pF Typ.
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	1000pcs.

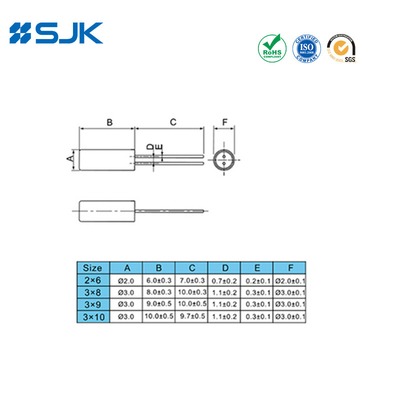

Dimensions

Units: mm Tolerance: ±0.1

NOTE 1: Use tweezers if leads need to be bent.

NOTE 2: Soldering the cylinder body can deteriorate the crystal characteristics and should be avoided. Use rubber adhesive instead or leave without soldering.

2*6mm Through Hole Crystal Resonator With 32.768KHz 12.5pF ±20ppm 1 +86-755-88352869

2*6mm Through Hole Crystal Resonator With 32.768KHz 12.5pF ±20ppm 2 rita@q-crystal.com
