Product Description

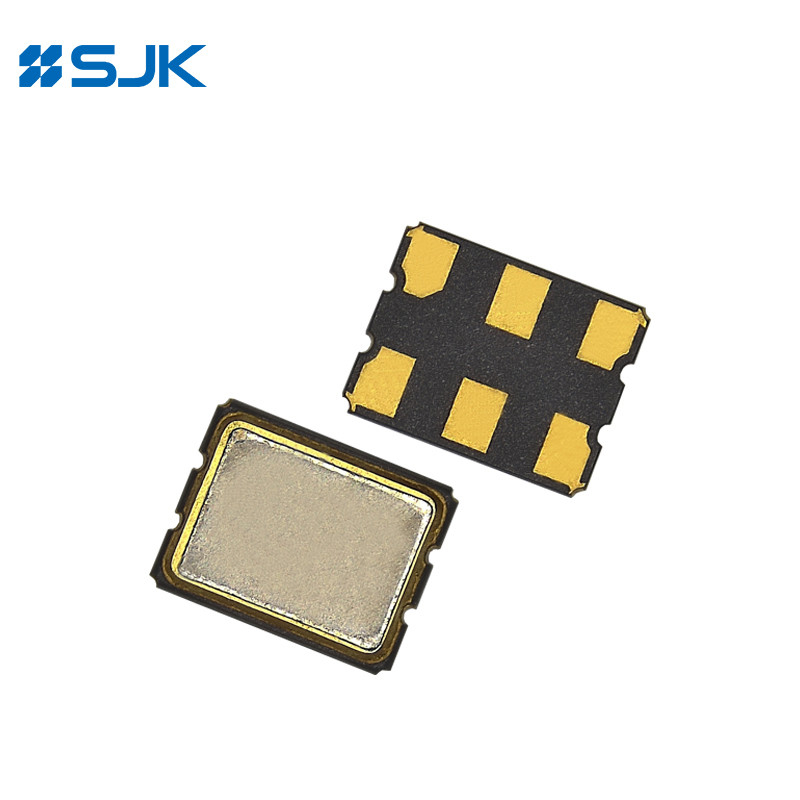

SMD 3225 HCSL Oscillator Support 25~200MHz ±15ppm for Server

Features

Differential Output HCSL

Output frequency range from 25MHz to 200MHz

2.5V/3.3V operating voltage, high-speed type

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Server, Optical transmission device, Communication device, Fibre Channel, Ethernet, etc

RoHS Compliant / Pb-Free

Specifications

Type	3H Series HCSL Output Oscillator
Output Type	HCSL
Output Load	50Ω
Supply Voltage	2.5V/3.3V
Frequency Range	25~200MHz
Supply Current	30mA Max.
Overall Frequency Stability*	±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0mV /740mV
Rise (Tr) /Fall (Tf) Time	0.5ns Max.
Duty Cycle	45~55%
Start-up Time	3ms Max.
Phase Noise (156.25MHz) @1KHz	-120dBc/Hz
Phase Jitter (12KHz~20MHz)	1pS Max.
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	3000pcs./Reel

*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration.

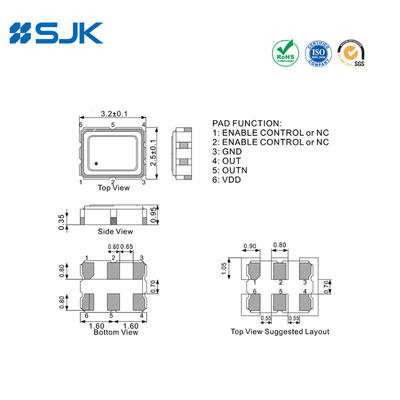

Dimensions [mm]
