Name: SMD 7.0*5.0 LVDS Output Differential Oscillator With ±25ppm -40~+85 100.000MHz
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7B
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7B
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

7B Series LVDS Output SMD Oscillator

Output Frequency:

10~1500MHz

Supply Voltage:

2.5V/3.3V

Output Type:

LVDS

Frequency Stability:

±25ppm, Or Specify

Size:

7.0*5.0*1.45mm

Applications:

Server, SAN, Smart Grid, Broadband Access, Etc

Supply Ability:

70KKpcs/M

Highlight:

7.0 x 5.0 Differential Oscillator

LVDS Output Differential Oscillator

lvds oscillator 100MHz

Product Description

SMD 7.0*5.0 LVDS Output Differential Oscillator With ±25ppm -40~+85 100.000MHz

Features

Differential Output Crystal Oscillator (LVDS Output)

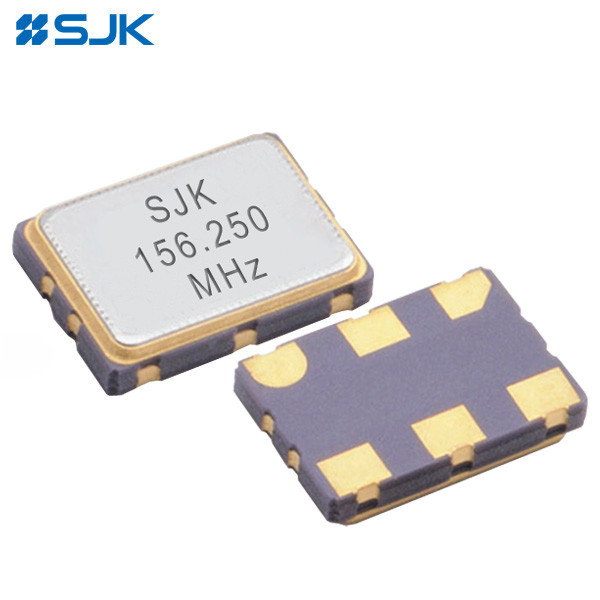

Typical 7.0×5.0×1.45mm, LVDS output crystal oscillator

Output frequency range from 10MHz to 1500MHz

Low supply voltage operation: 2.5V/3.3V

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Server, SAN, Broadband Access, Smart Grid, Gigabit Ethernet, Fibre channel, etc

RoHS Compliant / Pb-Free

Specifications

Type	7B Series LVDS Output SMD Oscillator
Output Type	LVDS
Output Load	100Ω
Supply Voltage	2.5V/3.3V
Frequency Range	10~320MHz	10~1500MHz
Supply Current	65mA Max.	50mA Max.
Overall Frequency Stability*	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.9V /1.6V
Rise (Tr) /Fall (Tf) Time	1.0ns Max.
Duty Cycle	45~55%
Start-up Time	2ms Max.	10ms Max.
Phase Noise (156.25MHz) @1KHz	-130dBc/Hz	-113dBc/Hz
Phase Jitter (12KHz~20MHz)	1pS Max.
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	1000pcs./Reel

* Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

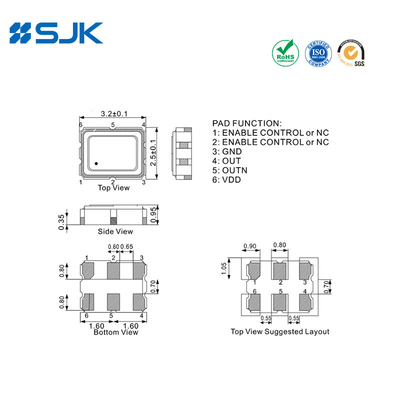

Dimensions [mm]
