Name: SMD 7050 LVPECL Oscillator With 10~1500MHz ±25ppm For SAN Application
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7J
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7J
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

7J Series LVPECL Output SMD Oscillator

Output Frequency:

10~1500MHz

Supply Voltage:

2.5V/3.3V

Output Type:

LVPECL

Frequency Stability:

±25ppm, Or Specify

Size:

7.0*5.0*1.45mm

Applications:

Server, SAN, Smart Grid, Broadband Access, Etc

Supply Ability:

70KKpcs/M

Highlight:

SMD 7050 differential oscillators

differential oscillators 10MHz

LVPECL Oscillator 1500MHz

Product Description

SMD 7050 LVPECL Oscillator With 10~1500MHz ±25ppm For SAN Application

Features

Differential Output Crystal Oscillator (LVPECL Output)

Typical 7.0×5.0×1.45mm, LVPECL output crystal oscillator

Output frequency range from 10MHz to 1500MHz

Low supply voltage operation: 2.5V/3.3V

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Server, SAN, Broadband Access, Smart Grid, Gigabit Ethernet, Fibre channel, etc

RoHS Compliant & Pb-Free

Specifications

Type	7J Series LVPECL Output SMD Oscillator
Output Type	LVPECL
Output Load	50Ω to Vcc-2V
Supply Voltage	2.5V/3.3V
Frequency Range	10~320MHz	10~1500MHz
Supply Current	100mA Max.	50mA Max.
Overall Frequency Stability*	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	Vcc-1.62V /Vcc-1.026V
Rise (Tr) /Fall (Tf) Time	1.0ns Max.
Duty Cycle	45~55%
Start-up Time	2ms Max.	10ms Max.
Phase Noise (156.25MHz) @1KHz	-130dBc/Hz	-113dBc/Hz
Phase Jitter (12KHz~20MHz)	1pS Max.
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	1000pcs./Reel

*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

Dimensions [mm]

7050 2.jpg

SMD 7050 LVPECL Oscillator With 10~1500MHz ±25ppm For SAN Application 1 +86-755-88352869

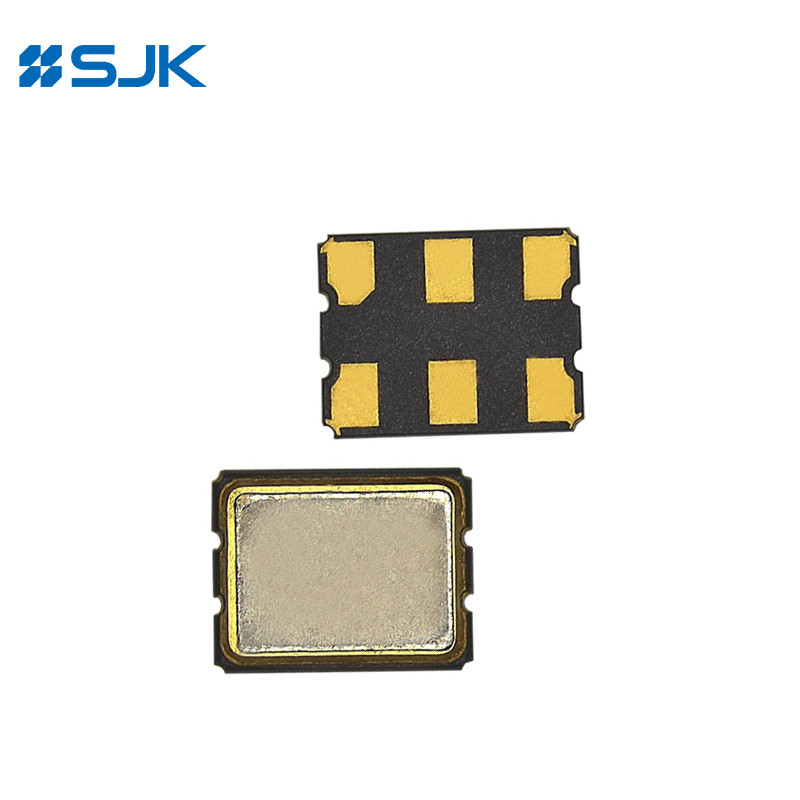

SMD 7050 LVPECL Oscillator With 10~1500MHz ±25ppm For SAN Application 2 rita@q-crystal.com
