Name: SMD 7050 HCSL Oscillator Support 25~200MHz 3.3V For Communication Application
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7H
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7H
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

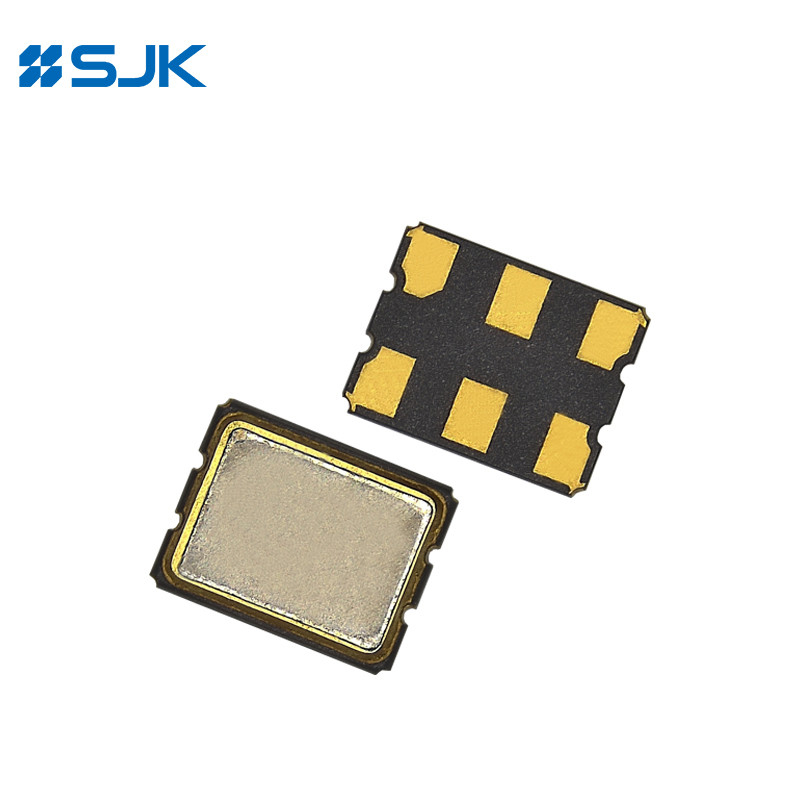

7H Series HCSL Output SMD Oscillator

Output Frequency:

25~200MHz

Supply Voltage:

2.5V/3.3V

Output Type:

HCSL

Frequency Stability:

±25ppm, Or Specify

Size:

7.0*5.0*1.3mm

Applications:

Server, Gigabit Ethernet, Smart Grid, FPGA, Etc

Supply Ability:

70KKpcs/M

Highlight:

SMD 7050 differential oscillators

differential oscillators 3.3V

3.3V HCSL Oscillator

Product Description

SMD 7050 HCSL Oscillator Support 25~200MHz 3.3V For Communication Application

Features

Differential Output Crystal Oscillator (HCSL Output)

Typical 7.0×5.0×1.45mm, HCSL output crystal oscillator

Output frequency range from 25MHz to 200MHz

Low supply voltage operation: 2.5V/3.3V

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Server, SAN, Broadband Access, Smart Grid, Gigabit Ethernet, Fibre channel, etc

RoHS Compliant / Pb-Free

Specifications

Type	7H Series HCSL Output SMD Oscillator
Output Type	HCSL
Output Load	50Ω
Supply Voltage	2.5V/3.3V
Frequency Range	25~200MHz
Supply Current	30mA Max.
Overall Frequency Stability*	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0mV /740mV
Rise (Tr) /Fall (Tf) Time	0.5ns Max.
Duty Cycle	45~55%
Start-up Time	10ms Max.
Phase Noise (156.25MHz) at 1KHz	-120dBc/Hz
Phase Jitter (12KHz~20MHz)	1pS Max.
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	1000pcs./Reel

*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

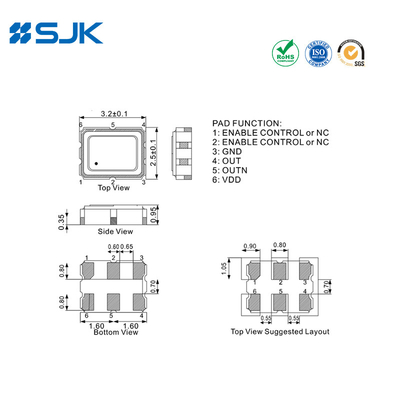

Dimensions [mm]
