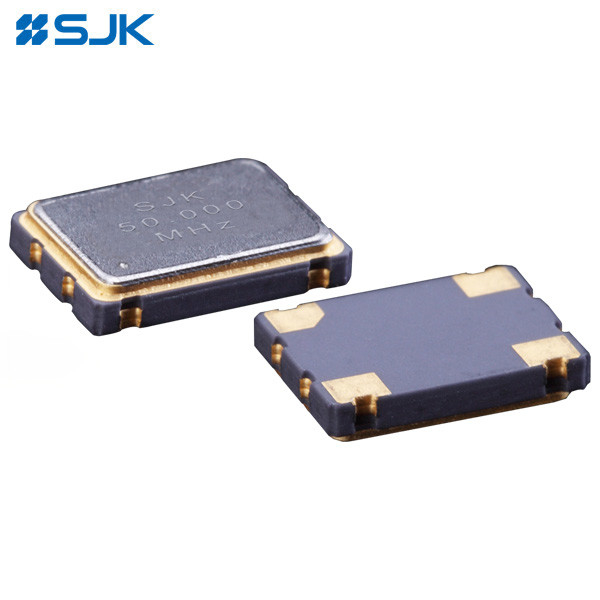

Name: 6N Series SMD 7050 Crystal Oscillator Frequency 1MHz To 220MHz Low Power Consumption High Stability
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SMD 7050 Crystal Oscillator
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SMD 7050 Crystal Oscillator
MOQ:	1000 pcs
Price:	Negotiate
Packaging Details:	1000 pcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

6N Series SMD 7050 Crystal Oscillators

Frequency Range:

1~220MHz

Size:

7.0*5.0*1.5 Mm

Output Type:

CMOS

Supply Voltage:

1.8~5.0V

Function:

Tri-State

Supply Ability:

30K pcs per Month

Highlight:

SMD 7050 spxo oscillator

spxo oscillator 1MHz

crystal oscillator 220MHz

Product Description

6N Series SMD 7050 Crystal Oscillator Frequency 1MHz to 220MHz Low Power Consumption High Stability

Features:

7050 size, 1.5mm high. Miniature and lightweight SMD crystal oscillators
Tri-state function
Supply voltage: 1.8V~3.3V, 5.0V
CMOS output type, available frequency range: 1MHz~220MHz
Low jitter provides for high performance
Application for server. Gb ethernet, HDTV, DVC, Test equipment,PC, PC peripherals, Automotive multimedia device, etc
RoHS Compliant /Pb Free

Electronic Specifications:

Item	6N Series SMD 7050 Crystal Oscillators
Output Type	CMOS
Load	15pF, or specify
Frequency Range	1MHz To 220MHz
Supply Voltage	1.8V~3.3V, 5.0V
Frequency Stability (All Condition)	±20ppm, ±25ppm, ±30ppm, ±50ppm, or specify
Current Consumption	10mA max.
Stand-by Current	10µA max.
Symmetry	45~55%
0 Level Output Voltage (V_OL)	0.1 Vcc max.
1 Level Output Voltage (V_OH)	0.9 Vcc min.
Rise Time / Fall time	10ns max.
OE Pin 0 Level Output Voltage (V_IL)	0.2 Vcc max.
OE Pin 1 Level Output Voltage (V_IH)	0.8 Vcc min.
Start-up Time	1ms max.
Operating Temperature	-40~+85ºC, or specify
Storage Temperature	-55~+125ºC
Phase Jitter	1ps max.
Package Size	7.05.01.5 mm

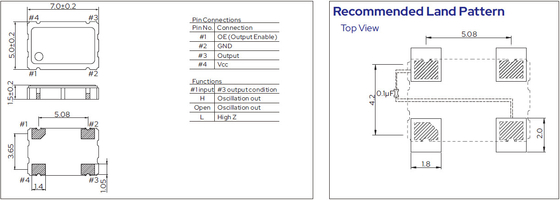

Dimensions:
