Name: 6MF Series Thru Hole DIP14 Crystal Oscillator High Frequency And Stability Application For Machine And Power Equipment
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 6MF Series DIP14 Crystal Oscillator
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	6MF Series DIP14 Crystal Oscillator
MOQ:	500 pcs
Price:	Negotiate
Packaging Details:	1000pcs /Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

6MF Series DIP-14 Crystal Oscillator

Frequency Range:

0.25MHz To 180MHz

Size:

20.4*12.7*5.3mm

Output:

CMOS

Supply Voltage:

3.3V /5.0V

Function:

Tri-state

Supply Ability:

30K pcs per Month

Highlight:

DIP14 spxo oscillator

spxo oscillator SGS

quartz oscillator 180MHz

Product Description

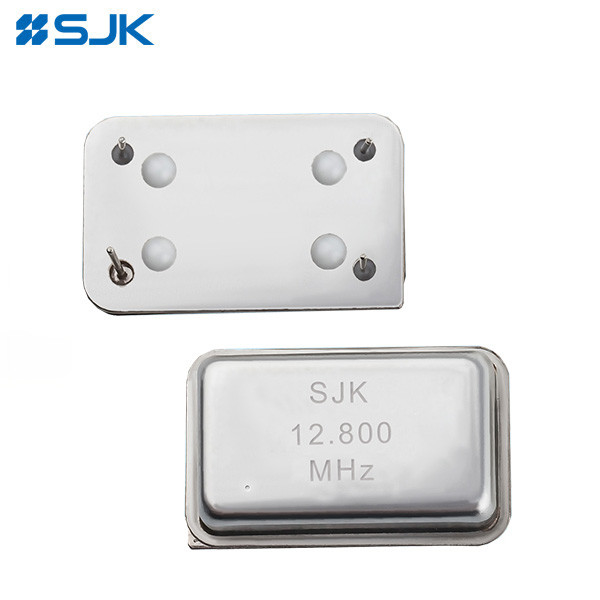

6MF Series Thru-Hole DIP14 Crystal Oscillator High Frequency and Stability application for Machine and Power equipment

Features:

All metal welded full-size (DIP-14) package
Tri-state function
Supply voltage: 3.3V /5.0V
Available frequency range: 0.25MHz To 180MHz
Low phase noise and jitter
Application for test equipments, Electronic instruments, Telecommunications, Avionics, Smart grid, etc
RoHS Compliant /Pb Free

Electronic Specifications:

Item	6MF Series DIP14 Crystal Oscillator
Output Type	CMOS
Output Load	15pF, or specify
Frequency Range	0.25MHz to 180MHz
Supply Voltage	3.3V / 5V
Frequency Stability (All Condition)	±20ppm, ±25ppm, ±30ppm, ±50ppm, or specify
Current Consumption	45mA max.
Stand-by Current	20µA max.
Symmetry	40~60%
0 Level Output Voltage (V_OL)	0.1 Vcc max.
1 Level Output Voltage (V_OH)	0.9 Vcc min.
Rise Time /Fall Time	10ms max.
OE 0 Level Output Voltage (V_IL)	0.2 Vcc max.
OE 1 Level Output Voltage (V_IH)	0.8 Vcc min.
Start-up Time	5.0ms max.
Operating Temperature	-40°C To +85°C, or specify
Storage Temperature	-55°C To +125°C, or specify
Phase Jitter	1pS max.
Package Size	20.412.75.3mm

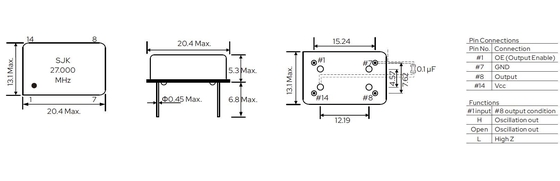

Dimensions:

DIP14-Crystal-Oscillator-Dimension
