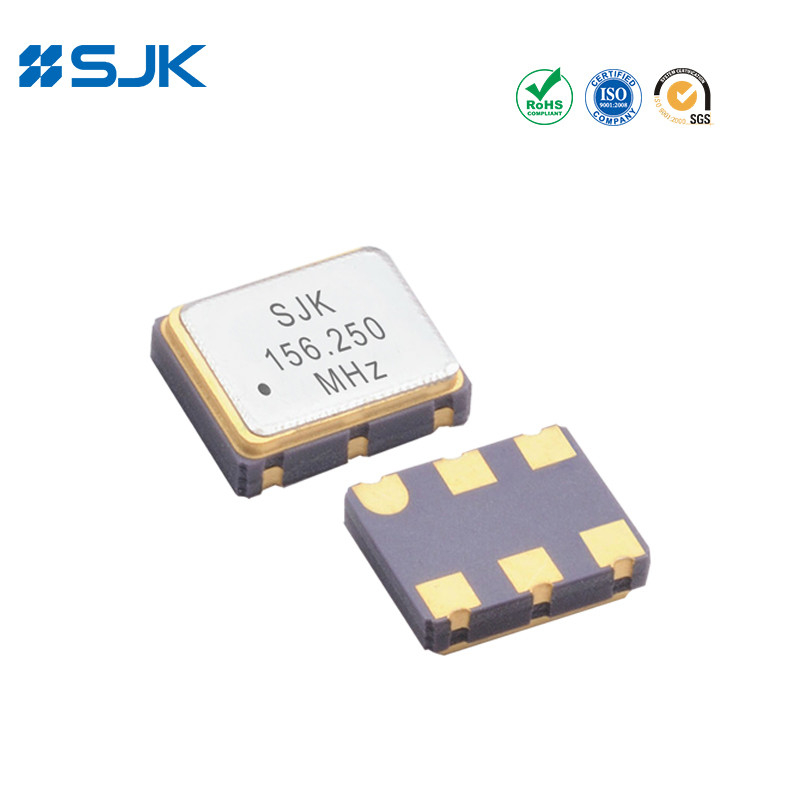

Name: SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-3P
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-3P
MOQ:	3000pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

3P Series (LVPECL Output SMD 3225 VCXO)

Frequency Range:

50~200MHz

Output Type:

LVPECL

Supply Voltage:

3.3V

Size:

3.2u00d72.5u00d70.95mm

Applications:

PC, FPGA, DSP, Smart Grid, SATA, SAS, Etc

Supply Ability:

70KKpcs/M

Highlight:

SGS VCXO SMD 3225

50.000MHz urface mount oscillator

Smart grid cmos oscillator circuit

Product Description

SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃

Features of 3P Series LVPECL Output SMD 3225 VCXO

Voltage Controlled Crystal Oscillator (VCXO)

3225 size, 0.95mm hign SMD VCXO

LVPECL output, output frequency range from 50MHz to 200MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, PC, FPGA, DSP, Smart grid, SATA, SAS, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 3P Series LVPECL Output SMD 3225 VCXO

Item /Type	3P Series (LVPECL Output SMD 3225 VCXO)
Output Type	LVPECL
Output Load	50Ω to Vcc-2V
Supply Voltage	3.3V
Frequency Range	50~200MHz
Supply Current	80mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	Vcc-1.62V/Vcc-1.025V
Rise (Tr) /Fall (Tf) Time	1ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Lineartiy	10% Max.
Phase Jitter (12KHz~20MHz)	1pS Max.
Packing Unit	3000pcs./Reel

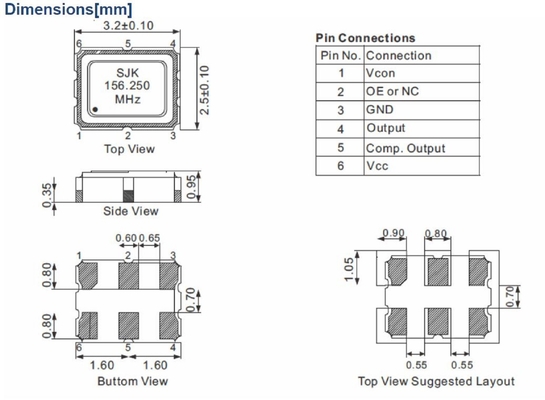

Dimensions[mm]

LVPECL-smd-3225-vcxo-dimensions

SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃ 1 +86-755-88352869

SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃ 2 rita@q-crystal.com
