Name: SMD 5032 VCXO With CMOS Output 6 Pads 75.000MHz 3.3V -40~+85℃ ±25ppm For Sever
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-5S
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-5S
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

5S Series (SMD 5032 VCXO)

Frequency Range:

50~200MHz

Output Type:

CMOS

Supply Voltage:

3.3V

Size:

5.0*3.2*1.2mm

Applications:

PC, Base Station, Ethernet, SONET, Sever, Etc

Supply Ability:

70KKpcs/M

Highlight:

vcxo oscillator SMD 5032

vcxo oscillator 75.000MHz

3.3V smd crystal oscillator

Product Description

SMD 5032 VCXO with CMOS Output 6 Pads 75.000MHz 3.3V -40~+85℃ ±25ppm For Sever

Features of 5S Series SMD 5032 VCXO

Voltage Controlled Crystal Oscillator (VCXO)

5032 size, 1.2mm hign, SMD 5032 VCXO

CMOS output, output frequency range from 50MHz to 200MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 5S Series SMD 5032 VCXO

Item /Type	5S Series (SMD 5032 VCXO)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	3.3V
Frequency Range	50~200MHz
Supply Current	60mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	5ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Lineartiy	10% Max.
Phase Jitter (12KHz~20MHz)	1pS Max.
Packing Unit	1000pcs./Reel

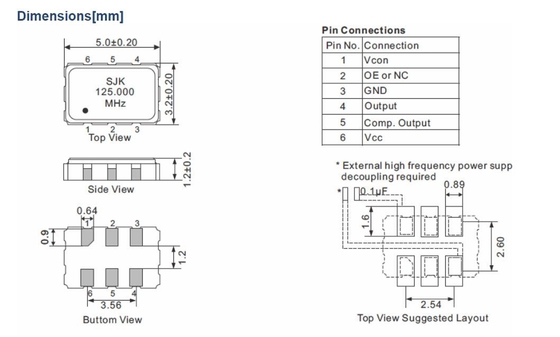

Dimensions[mm]

SMD-5032-VCXO-Dimensions

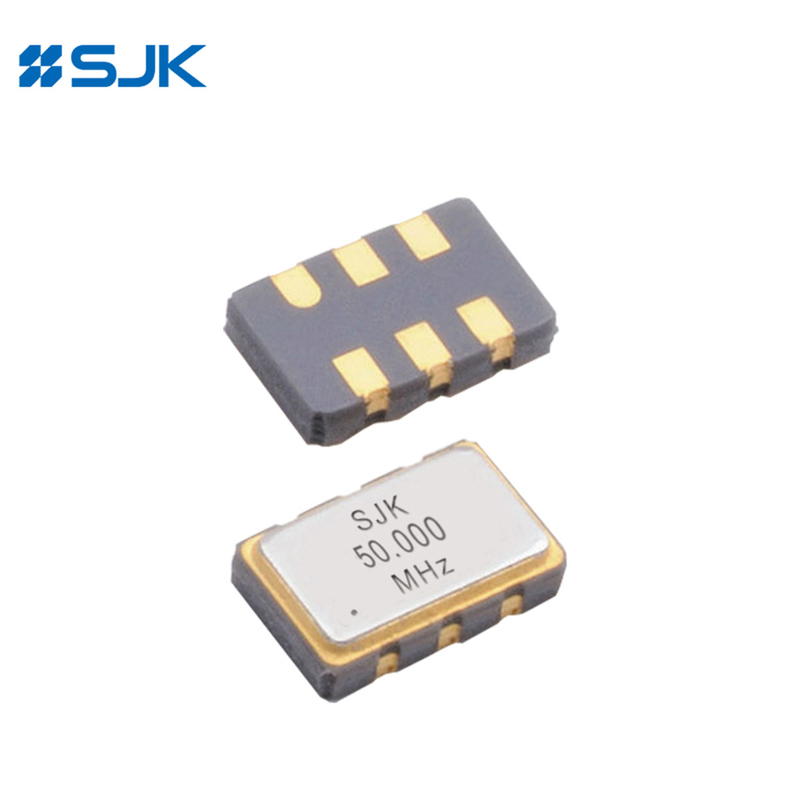

SMD 5032 VCXO With CMOS Output 6 Pads 75.000MHz 3.3V -40~+85℃ ±25ppm For Sever 1 +86-755-88352869

SMD 5032 VCXO With CMOS Output 6 Pads 75.000MHz 3.3V -40~+85℃ ±25ppm For Sever 2 rita@q-crystal.com
