SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃

Brand Name:	SJK
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SJK

Certification:

SGS, RoHS, REACH

Model:

6S Series (SMD 7050 VCXO)

Frequency Range:

1~200MHz

Output Type:

CMOS

Supply Voltage:

3.3V/5V

Size:

7.0*5.0*1.3mm

Applications:

PC, Base Station, Ethernet, SONET, Sever, Etc

Pins Number:

6 Pins

Minimum Order Quantity:

1000pcs

Price:

negotiable

Packaging Details:

1Kpcs/Reel

Delivery Time:

4-6 wks

Payment Terms:

T/T

Supply Ability:

70KKpcs/M

Highlight:

SMD 7050 VCXO

VCXO 200MHz

cmos oscillator 1MHz

Product Description

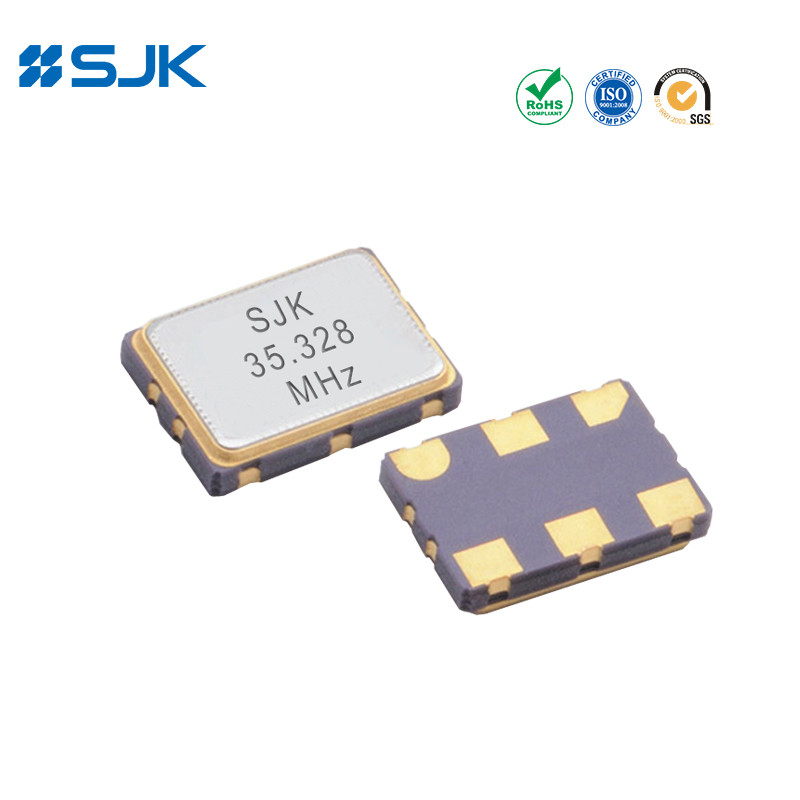

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃

Features

Voltage Controlled Crystal Oscillator (VCXO)

7050 size, 1.3mm high, SMD 7050 VCXO

CMOS output, output frequency range from 1MHz to 200MHz

Excellent low-phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Communications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Specifications

Type	6S Series (SMD 7050 VCXO)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	3.3V
Frequency Range	1~200MHz
Supply Current	60mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	5ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Linearity	10% Max.
Phase Jitter (12KHz~20MHz)	1pS Max.
Packing Unit	1000pcs./Reel

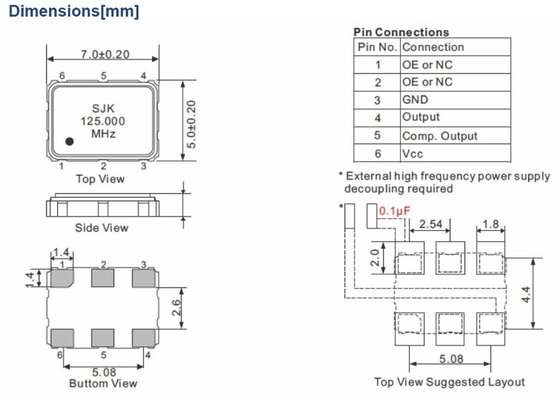

Dimensions [mm]

smd-7050-vcxo

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃ 1 +86-755-88352869

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃ 2 rita@q-crystal.com

Tags:

SMD 7050 VCXO

VCXO 200MHz

cmos oscillator 1MHz

SMD LVPECL VCXO With 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For Base Station

Get Best Price

video

SMD LVDS VCXO With 14.29.35.4mm With 3.3V For Ethernet

Get Best Price

video

SMD 3225 VCXO With CMOS Output 3.3V ±50ppm -40~+85℃ For FPGA

Get Best Price

video

Thru-Hole Full-Size 14Pin DIP VCXO With CMOS Output 3.3V Or 5V With 20.4*13.1mm

Get Best Price

video

SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC

Get Best Price

video

LVDS SMD 5032 VCXO 50~200MHz 3.3V ±30ppm -40~+85℃

Get Best Price

video

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85

Get Best Price

video

LVPECL Output SMD 5032 VCXO Support 50~200MHz 3.3V ±50ppm -40~+85℃

Get Best Price

Crystal Resonator

Series 6A, HC-49/U Crystal Unit

Series 6B, HC-49S/SS Crystal Unit

Series 6C, HC-49SMD/49SSMD Crystal Unit

Series 6P HC-M49SMD Crystal Unit

Series 6D, UM-1 Crystal Unit

Series 6Z, Cylinder Type Crystal Unit

Series 7S, SMD 1210 Seam Crystal Unit

Series 7Y, SMD 1612 Seam Crystal Unit

Series 7F, SMD 2016 Seam Crystal Unit

Series 7E, SMD 2520 Seam Crystal Unit

Series 7U, SMD 3225 Seam Crystal Unit

Series 7I, SMD 5032 Seam Crystal Unit

Series 6G, SMD 6035 Seam Crystal Unit

Series 6F, SMD 7050 Seam Crystal Unit

Series 7Z, SMD 2520 Glass Crystal Unit

Series 7V, SMD 3225 Glass Crystal Unit

Series 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Glass Crystal Unit

32.768KHz Tuning Fork Crystal

Series 7K, SMD 1610 Tuning Fork Crystal

Series 7R, SMD 2012 Tuning Fork Crystal

Series 7L, SMD 3215 Tuning Fork Crystal

Series 7M, SMD 7015 Tuning Fork Crystal

Series 6LC, SMD 8038 Tuning Fork Crystal

Series 6LB, SMD 206B Tuning Fork Crystal

Series 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Series 6K8, Through-Hole 3*8mm Tuning Fork Crystal

Crystal Oscillator

Series 8N, SMD 1612 Crystal Oscillator

Series 1N, SMD 2016 Crystal Oscillator

Series 2N, SMD 2520 Crystal Oscillator

Series 3N, SMD 3225 Crystal Oscillator

Series 7N, SMD 5032 Crystal Oscillator

Series 6N, SMD 7050 Crystal Oscillator

Series 9N, SMD 1490 Crystal Oscillator

Series 6MF, Thru-Hole Full Size Crystal Oscillator

Series 6MH, Thru-Hole Half Size Crystal Oscillator

Differential Oscillator

Series 3J, SMD 3225 LVPECL Output Oscillator

Series 3D, SMD 3225 LVDS Output Oscillator

Series 3H, SMD 3225 HCSL Output Oscillator

Series 5J, SMD 5032 LVPECL Output Oscillator

Series 5D, SMD 5032 LVDS Output Oscillator

Series 5H, SMD 5032 HCSL Output Oscillator

Series 7J, SMD 7050 LVPECL Output Oscillator

Series 7B, SMD 7050 LVDS Output Oscillator

Series 7H, SMD 7050 HCSL Output Oscillator

Series 9J, SMD 1490 LVPECL Output Oscillator

Series 9D, SMD 1490 LVDS Output Oscillator

OCXO

Series 1X, SMD 9*7 Size OCXO

Series 9X, SMD 14*9*5 Size OCXO

Series 5X, SMD 25*22*11 Size OCXO

Series 2X, Thru-hole OCXO

Series 3X, Thru-hole 20*20 OCXO

Series 9M, Thru-hole 25*25*12 OCXO

Series 6X,Thru-hole 36*27*12 Size OCXO

TCXO/VC-TCXO

Series 7X, SMD 2016 TCXO / VC-TCXO

Series 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sine Wave

Series 7T, SMD 3225 TCXO / VC-TCXO CMOS

Series 5T, SMD 5032 TCXO / VC-TCXO

Series 8T, SMD 7050 TCXO / VC-TCXO

Series 9T, SMD 1490 TCXO / VC-TCXO

Series 6T, Thru-hole TCXO / VC-TCXO

Series 1T SMD 1612 TCXO/VC-TCXO

Series 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Series 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Series 3S, SMD 3225 CMOS Output VCXO

Series 3P, SMD 3225 LVPECL Output VCXO

Series 5S, SMD 5032 CMOS Output VCXO

Series 5P, SMD 5032 LVPECL Output VCXO

Series 5V, SMD 5032 LVDS Output VCXO

Series 6S, SMD 7050 CMOS Output VCXO

Series 7P, SMD 7050 LVPECL Output VCXO

Series 6V, SMD 7050 LVDS Output VCXO

Series 9S, SMD 1490 CMOS Output VCXO

Series 9P, SMD 1490 LVPECL Output VCXO

Series 9X, SMD 1495 Size OCXO

Series 5X, SMD 252211 Size OCXO

Series 9M, Thru-hole 252512 OCXO

Series 6X,Thru-hole 362712 Size OCXO
