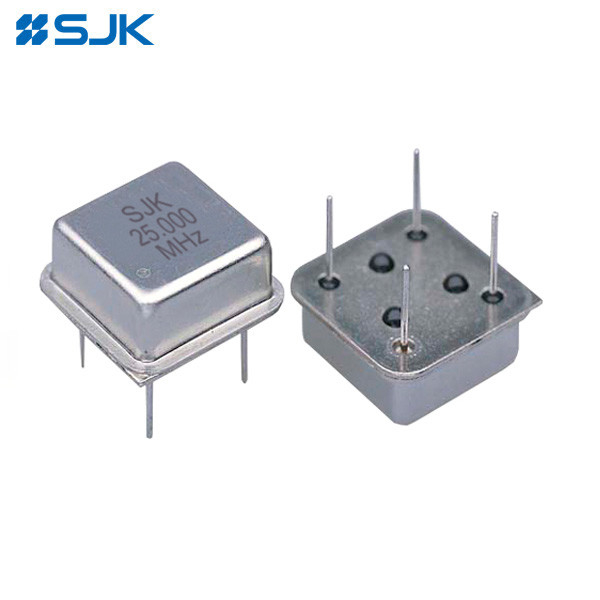

Name: Thru Hole 8 Pin DIP Half-Size VCXO 1-80MHz 3.3V Or 5V CMOS ±50ppm
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-6RH
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-6RH
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Series:

6RH Series (Half-size 8Pin DIP VCXO)

Frequency Range:

1MHz~80MHz

Output Type:

CMOS

Supply Voltage:

3.3V/5V

Size:

12.8*12.8*5.3mm

Frequency Stability:

±25ppm，±50ppm

Applications:

Test Equipment, Telecommunications, Electronic Instruments, Mobile Communications, Etc

Supply Ability:

70KKpcs/M

Highlight:

Thru Hole vcxo oscillator

8 Pin vcxo oscillator

8 pin smd crystal oscillator

Product Description

Thru-Hole8-Pin DIP Half-Size VCXO 1-80MHz 3.3V Or 5V CMOS ±50ppm

Features Of 6RH Series Half-size 8Pin DIP VCXO

All metal welded package

High precision characteristic covering up to wide frquency range from 1MHz to 80MHz

5V/3.3 operating voltage

CMOS output

3-state function

8-Pin DIP (Half-size package)

Applications: Telecommunications, Mobile communications, Avionics, Test equipment, Electronic instruments, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 6RH Series Half-size 8Pin DIP VCXO

Item/Type		6RH Series (Half-size 8Pin DIP VCXO)
Package		All metal, hermetically sealed, welt package
Supply Voltage		3.3V	5V
Frequency Range		1~80MHz
Frequency Stability		±25ppm, ±50ppm, or specify
Operating Temperature		-20~+70℃, -40~+85℃, or specify
Storage Temperature		-55~+125℃
Load		15pF, or specify
	Voltage Voh	3.0V Min.	4.5V Min.
	Voltage Vol	0.3V Max.	0.4V Max.
	Current Ioh	-4.0mA	-8.0mA
	Current Iol	4.0mA	8.0mA
	Duty Cycle	40~60%
	Rise /Fall Time	5ns Max.
Frequency Control		Positive Transfer Characteristic
	Pullability	±50ppm ,±100ppm,±150ppm,±200ppm Min.
	Control Voltage	0.3Vdc to 3.0Vdc	0.5Vdc to 4.5Vdc
	Center Voltage	1.65Vcc	2.5Vcc
	Monotonic Linearity	＜±15%	＜±15%
	Input Impedance	50K ohms Normal
Supply Current		40mA Max.	60mA Max.
Output Type		CMOS
Packing Unit		100pcs.

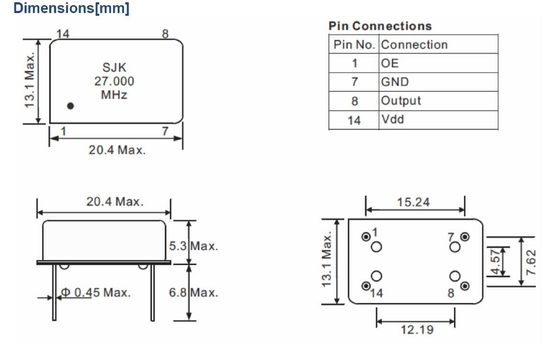

Dimensions[mm]

Half-size-VCXO-Dimensions
