Product Description

Thru-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Cliepped Sine Wave Output

Features

Typical 20.4×12.8×7.8mm, DIP TCXO/VCTCXO

Hermetically sealed DIP-14 package

Double sealed metal case and high reliability

VC-TCXO available

Output frequency: 1.25MHz~52MHz

CMOS or clipped sine wave output

Applications: Large-scale Equipment, Avionics, Communication Equipment, Test Equipment, etc

RoHS Compliant & Pb-Free

Specifications

Type		6T DIP TCXO / VC-TCXO
Output Type		Clipped Sine wave	CMOS
Output Load		10KΩ//10pF	15pF, or specify
Frequency Range		10~52MHz	1.25~52MHz
Supply Voltage		2.8V / 3.3V
Supply Current		4mA Max.	25mA Max.
Output Level		0.8Vp-p Min.	0.1Vcc/0.9Vcc
Frequency Stability	Tolerance	±2.0ppm Max. (after 2 reflows)
	vs Temperature	±0.5ppm~±1.0ppm
	vs Supply Voltage (Vcc±5%)	±0.2ppm Max.
	vs Load (Load varies±10%)	±0.2ppm Max.
	vs Aging	±1.0ppm Max.
Auto Frequency Control (AFC) Range (VCTCXO)		±5ppm~±10ppm (1.5±1V)
Strart-up Time		2ms Max.
Operating Temperature		-40~+85℃, or specify
Duty Cycle			40~60%
Phase Noise @10MHz	100kHz	-1115dBc/Hz
	1kHz	-135dBc/Hz
	10kHz	-148dBc/Hz
Packing Unit		100pcs.

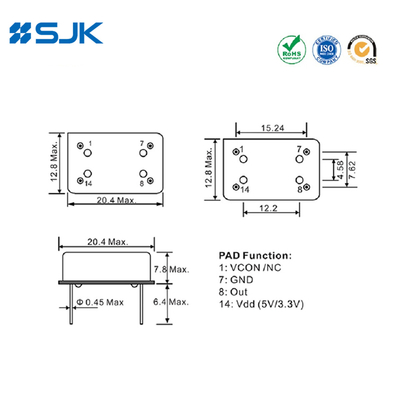

Dimensions [mm]

Captura de pantalla 2022-03-25 150758.jpg

Thru-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Cliepped Sine Wave Output 1 +86-755-88352869

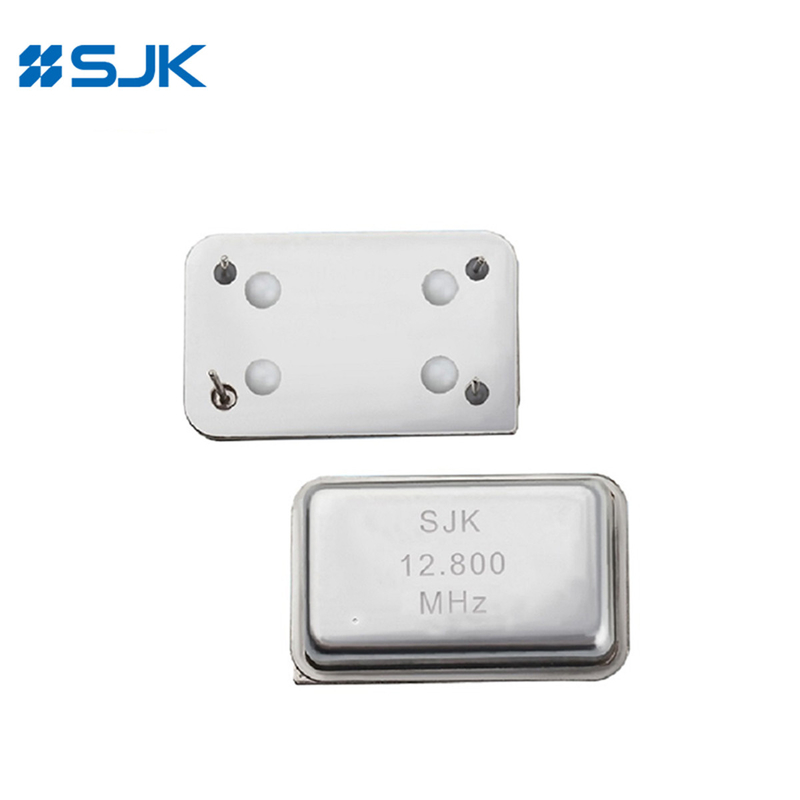

Thru-Hole 14-Pin TCXO 10-52MHz 3.3V 10pF Cliepped Sine Wave Output 2 rita@q-crystal.com
