Type		2X Series DIP-14 OCXO
Output Type		HCMOS
Output Load		15pF, or specify
Output Wave Form		Rectangular
Supply Voltage		3.3V/5.0V
Frequency Range		5~40MHz
Operating Temperature		-20~+70℃, or specify
Frequency Stability	Frequency Tolerance	±0.1ppm Max.
	vs. Operating Temperature	±50ppb~±200ppb
	vs. Supply Voltage	±50ppb Max. (±5 Change)
	vs. Load	±50ppb Max. (±10 Change)
	vs Aging	±5.0ppb /Daily, ±0.5ppm/Year, ±3.0ppm/10 years
Voltage Vol (Max.) / Voh (Min.)		0.1Vcc/0.9Vcc
Duty Cycle		45~55%
Spurious		-60dBc
Warm-up		±0.1ppm (In 2 minutes @+25, referenced to 1 hour)
Power Consumption (Steady state)		0.8W Max.
Frequency Adjustment Range		±5.0ppm (+1.65V±1.65V/+2.5V±2.5V)
Phase Noise @20MHz	@10Hz	-105dBc/Hz
	@100Hz	-130dBc/Hz
	@1KHz	-140dBc/Hz
	@10KHz	-150dBc/Hz
Packing Unit		200pcs.

Dimensions [mm]

2x-dip-ocxo-dimensions

PRODUCTS

- Crystal Resonator List
- Crystal Oscillator List
- Crystal Filter List
- Ceramic Device List
- SAW Device List
- MEMS Oscillator List

TECHNICAL

- Reliability Tests
- Green Product Information
- Tape and Reel
- Certificates
- Flow Chart
- Quality Policy

QUALITY

About SJK

- Company Profile
- History & Honors
- SJK Life

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm 1 +86-755-88352869

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm 2 sjk@q-crystal.com

OnLin

skype

Tags:

Thru Hole ocxo oscillator

Full Size ocxo oscillator

20.3 x 12.7 x 11.0mm types of high frequency oscillator

3X Series Thru-Hole 20*20 OCXO High Frequency Range 5MHz-40MHz High Stability 10ppb For Telecommunications

Get Best Price

video

High Stability Miniature 4-Pad SMD Package OCXO 1X Series SMD 9 X 7 Size OCXO For Synthesizer Digital Switch

Get Best Price

video

25 X 25 X 12mm OCXO 5~100MHz 5.0V Or 12V ±100ppb For Reference Timing Circuit

Get Best Price

video

SMD 1495mm OCXO With 6 Pads 5~40MHz 3.3V Or 5V ±30ppb -40~+85 For Digital Switch

Get Best Price

video

SMD 25 X 22 X 11mm Size OCXO Support 5-40MHz 3.3V Oven Controlled Crystal Oscillator

Get Best Price

video

Thru-Hole OCXO With 362712mm Size 5~100MHz 5V ±5ppb LVTTL

Get Best Price

video

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm

Get Best Price

Products Details

Home > Products >

OCXO

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm

All Category

Crystal Resonator

Series 6A, HC-49/U Crystal Unit

Series 6B, HC-49S/SS Crystal Unit

Series 6C, HC-49SMD/49SSMD Crystal Unit

Series 6P HC-M49SMD Crystal Unit

Series 6D, UM-1 Crystal Unit

Series 6Z, Cylinder Type Crystal Unit

Series 7S, SMD 1210 Seam Crystal Unit

Series 7Y, SMD 1612 Seam Crystal Unit

Series 7F, SMD 2016 Seam Crystal Unit

Series 7E, SMD 2520 Seam Crystal Unit

Series 7U, SMD 3225 Seam Crystal Unit

Series 7I, SMD 5032 Seam Crystal Unit

Series 6G, SMD 6035 Seam Crystal Unit

Series 6F, SMD 7050 Seam Crystal Unit

Series 7Z, SMD 2520 Glass Crystal Unit

Series 7V, SMD 3225 Glass Crystal Unit

Series 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Glass Crystal Unit

32.768KHz Tuning Fork Crystal

Series 7K, SMD 1610 Tuning Fork Crystal

Series 7R, SMD 2012 Tuning Fork Crystal

Series 7L, SMD 3215 Tuning Fork Crystal

Series 7M, SMD 7015 Tuning Fork Crystal

Series 6LC, SMD 8038 Tuning Fork Crystal

Series 6LB, SMD 206B Tuning Fork Crystal

Series 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Series 6K8, Through-Hole 3*8mm Tuning Fork Crystal

Crystal Oscillator

Series 8N, SMD 1612 Crystal Oscillator

Series 1N, SMD 2016 Crystal Oscillator

Series 2N, SMD 2520 Crystal Oscillator

Series 3N, SMD 3225 Crystal Oscillator

Series 7N, SMD 5032 Crystal Oscillator

Series 6N, SMD 7050 Crystal Oscillator

Series 9N, SMD 1490 Crystal Oscillator

Series 6MF, Thru-Hole Full Size Crystal Oscillator

Series 6MH, Thru-Hole Half Size Crystal Oscillator

Differential Oscillator

Series 3J, SMD 3225 LVPECL Output Oscillator

Series 3D, SMD 3225 LVDS Output Oscillator

Series 3H, SMD 3225 HCSL Output Oscillator

Series 5J, SMD 5032 LVPECL Output Oscillator

Series 5D, SMD 5032 LVDS Output Oscillator

Series 5H, SMD 5032 HCSL Output Oscillator

Series 7J, SMD 7050 LVPECL Output Oscillator

Series 7B, SMD 7050 LVDS Output Oscillator

Series 7H, SMD 7050 HCSL Output Oscillator

Series 9J, SMD 1490 LVPECL Output Oscillator

Series 9D, SMD 1490 LVDS Output Oscillator

OCXO

Series 1X, SMD 9*7 Size OCXO

Series 9X, SMD 1495 Size OCXO

Series 5X, SMD 252211 Size OCXO

Series 2X, Thru-hole OCXO

Series 3X, Thru-hole 20*20 OCXO

Series 9M, Thru-hole 252512 OCXO

Series 6X,Thru-hole 362712 Size OCXO

TCXO/VC-TCXO

Series 7X, SMD 2016 TCXO / VC-TCXO

Series 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sine Wave

Series 7T, SMD 3225 TCXO / VC-TCXO CMOS

Series 5T, SMD 5032 TCXO / VC-TCXO

Series 8T, SMD 7050 TCXO / VC-TCXO

Series 9T, SMD 1490 TCXO / VC-TCXO

Series 6T, Thru-hole TCXO / VC-TCXO

Series 1T SMD 1612 TCXO/VC-TCXO

Series 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Series 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Series 3S, SMD 3225 CMOS Output VCXO

Series 3P, SMD 3225 LVPECL Output VCXO

Series 5S, SMD 5032 CMOS Output VCXO

Series 5P, SMD 5032 LVPECL Output VCXO

Series 5V, SMD 5032 LVDS Output VCXO

Series 6S, SMD 7050 CMOS Output VCXO

Series 7P, SMD 7050 LVPECL Output VCXO

Series 6V, SMD 7050 LVDS Output VCXO

Series 9S, SMD 1490 CMOS Output VCXO

Series 9P, SMD 1490 LVPECL Output VCXO

Series 9V, SMD 1490 LVDS Output VCXO

Series 6RF, Thru-Hole Full-Size VCXO

Series 6RH, Thru-Hole Half-Size VCXO

RTC 32.768KHz Oscillator

Series 2E, SMD 2016 RTC Oscillator

Series 2D, SMD 2520 RTC Oscillator

Series 3C, SMD 3225 RTC Oscillator

Series 5B, SMD 5032 RTC Oscillator

Series 7A, SMD 7050 RTC Oscillator

MCF (Monolithic Crystal Filter )

HC-49T Crystal Filter

UM-1 Crystal Filter

UM-5 Crystal Filter

CF 2-Pole crystal Filter

CF 3-Pole crystal Filter

CF 4-Pole crystal Filter

Ceramic Resonator

Series ZTA, DIP & SMD Type Ceramic Resonator

Series ZTT, DIP & SMD Type Ceramic Resonator

Series ZTB, DIP & SMD Type Ceramic Resonator

Ceramic Filter

Series LT10.7, DIP & SMD Type Ceramic Filter

Series LT/LTS, DIP & SMD Type Ceramic Filter

Series LT455...W, DIP Type Ceramic Filter

Series LT455...U, DIP Type Ceramic Filter

Series LT450...W, DIP Type Ceramic Filter

Series LT450...U, DIP Type Ceramic Filter

Series XT, DIP Type Ceramic Trap

Saw Resonator

F-11, DIP Saw Resonator (4 Pin)

D-11, DIP Saw Resonator (3 Pin)

TO-39, DIP Saw Resonator ( 3 Pin )

Series 6AW, SMD 3225 Saw Resonator

HC-49SMD Saw Resonator

SMD QCC4A SAW Resonator (5.0*3.5)

SMD DCC6C SAW Resonatorr (3*3)

SMD DCC6 SAW Resonator (3.8*3.8)

SMD QCC8C SAW Resonator (5.0*5.0)

SMD 2016 SAW Resonator（2 Pin）

SMD 1814 SAW Resonator

SMD 6026 SAW Resonator

Saw Filter

Series 5AW, SMD 2520 SAW Filter

TO-39, DIP SAW Filter (3 Pin)

SMD DCC6C SAW Filter (3*3)

SMD DCC6 SAW Filter (3.8*3.8)

SMD QCC8B SAW Filter (3.8*3.8)

SMD QCC8C SAW Filter (5.0*5.0)

SMD QCC8D SAW Filter (3*3)

QCC12 SAW Filter（13.3*6.5）

MEMS Oscillator-Low Power

SJK8008-2016 MEMS Oscillator

SJK8008-2520 MEMS Oscillator

SJK8008-3225 MEMS Oscillator

SJK8008-5032 MEMS Oscillator

SJK8008-7050 MEMS Oscillator

SJK8009-2016 MEMS Oscillator

SJK8009-2520 MEMS Oscillator

SJK8009-3225 MEMS Oscillator

SJK8009-5032 MEMS Oscillator

SJK8009-7050 MEMS Oscillator

SJK8208-5032 MEMS Oscillator

SJK8209-2520 MEMS Oscillator

SJK9005-2520 MEMS Oscillator

SJK8918-High Temperature Oscillator （-40~+125℃）

SJK8009-115 to 137 MHz, Low Power Oscillator

Differential MEMS Oscillator

SJK9121-3225 MEMS LVPECL Output Oscillator

SJK9121-3225 MEMS LVDS Output Oscillator

SJK9365-3225 MEMS HCSL Output Oscillator

SJK9121-5032 MEMS LVPECL Output Oscillator

SJK9121-5032 MEMS LVDS Output Oscillator

SJK9365-5032 MEMS HCSL Output Oscillator

SJK9121-7050 MEMS LVPECL Output Oscillator

SJK9121-7050 MEMS LVDS Output Oscillator

SJK9365-7050 MEMS HCSL Output Oscillator

SJK9366-1 to 220 MHz, Low Jitter Differential XO,LVDS, LVPECL & LVDS

SJK9121-1 to 220 MHz, ±10 to ±50 ppm Differential XO LVDS & LVPECL

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm

Brand Name:	SJK
Model Number:	2X
MOQ:	1
Price:	negotiable
Packaging Details:	1Kpcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SJK

Certification:

SGS, RoHS, REACH

Model Number:

Model:

2X Series DIP-14 OCXO

Frequency Range:

5~40MHz

Supply Voltage:

3.3V/5.0V

Frequency Tolerance:

U00b150ppm

Size:

20.3*12.7*11.0mm

Applications:

Base Station, Digital Switch, Measuring Equipment, SDH, SONET

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

1Kpcs/Bag

Delivery Time:

4-6 wks

Payment Terms:

T/T

Highlight:

Thru Hole ocxo oscillator

Full Size ocxo oscillator

20.3 x 12.7 x 11.0mm types of high frequency oscillator

Product Description

Thru-Hole Full Size OCXO With 20.3*12.7*11.0mm

Features

OCXO (Oven Controlled Crystal Oscillator)

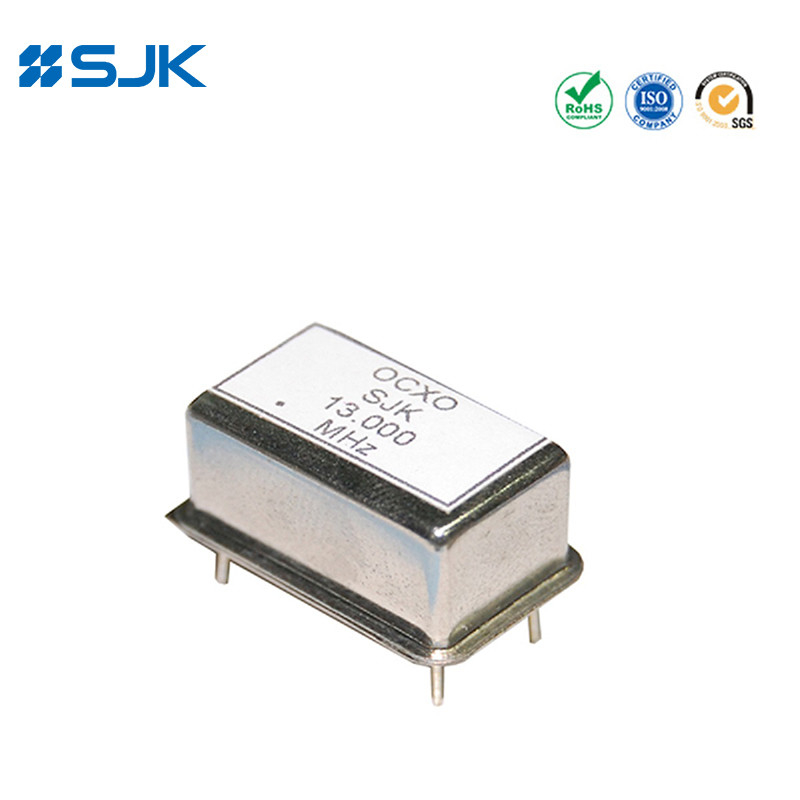

Typical 20.3×12.7×11mm 14-Pin Full-size Thru-hole OCXO

Frequency range from 5MHz to 40MHz

±50ppb frequency stability over -40~+85℃

Stratum 3 (Overall ±4.6ppm including 10 years aging)

Very fast warm-up and accurate stability

Applications: Base station, Digital Switch, Test Equipment, Measuring Equipment, SDH, SONET, etc

RoHS Compliant & Pb-Free

Specifications

Type		2X Series DIP-14 OCXO
Output Type		HCMOS
Output Load		15pF, or specify
Output Wave Form		Rectangular
Supply Voltage		3.3V/5.0V
Frequency Range		5~40MHz
Operating Temperature		-20~+70℃, or specify
Frequency Stability	Frequency Tolerance	±0.1ppm Max.
	vs. Operating Temperature	±50ppb~±200ppb
	vs. Supply Voltage	±50ppb Max. (±5 Change)
	vs. Load	±50ppb Max. (±10 Change)
	vs Aging	±5.0ppb /Daily, ±0.5ppm/Year, ±3.0ppm/10 years
Voltage Vol (Max.) / Voh (Min.)		0.1Vcc/0.9Vcc
Duty Cycle		45~55%
Spurious		-60dBc
Warm-up		±0.1ppm (In 2 minutes @+25, referenced to 1 hour)
Power Consumption (Steady state)		0.8W Max.
Frequency Adjustment Range		±5.0ppm (+1.65V±1.65V/+2.5V±2.5V)
Phase Noise @20MHz	@10Hz	-105dBc/Hz
	@100Hz	-130dBc/Hz
	@1KHz	-140dBc/Hz
	@10KHz	-150dBc/Hz
Packing Unit		200pcs.

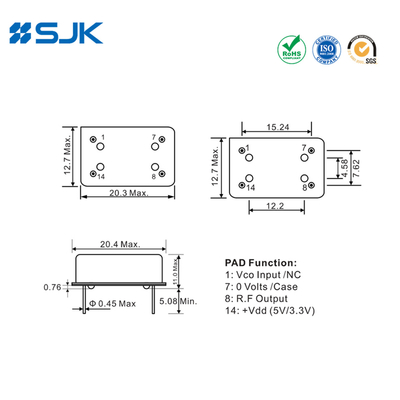

Dimensions [mm]

2x-dip-ocxo-dimensions

PRODUCTS

- Crystal Resonator List
- Crystal Oscillator List
- Crystal Filter List
- Ceramic Device List
- SAW Device List
- MEMS Oscillator List

TECHNICAL

- Reliability Tests
- Green Product Information
- Tape and Reel
- Certificates
- Flow Chart
- Quality Policy

QUALITY

About SJK

- Company Profile
- History & Honors
- SJK Life

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm 1 +86-755-88352869

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm 2 sjk@q-crystal.com

OnLin

skype

Tags:

Thru Hole ocxo oscillator

Full Size ocxo oscillator

20.3 x 12.7 x 11.0mm types of high frequency oscillator

3X Series Thru-Hole 20*20 OCXO High Frequency Range 5MHz-40MHz High Stability 10ppb For Telecommunications

Get Best Price

video

High Stability Miniature 4-Pad SMD Package OCXO 1X Series SMD 9 X 7 Size OCXO For Synthesizer Digital Switch

Get Best Price

video

25 X 25 X 12mm OCXO 5~100MHz 5.0V Or 12V ±100ppb For Reference Timing Circuit

Get Best Price

video

SMD 1495mm OCXO With 6 Pads 5~40MHz 3.3V Or 5V ±30ppb -40~+85 For Digital Switch

Get Best Price

video

SMD 25 X 22 X 11mm Size OCXO Support 5-40MHz 3.3V Oven Controlled Crystal Oscillator

Get Best Price

video

Thru-Hole OCXO With 362712mm Size 5~100MHz 5V ±5ppb LVTTL

Get Best Price

video

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm

Get Best Price

Crystal Resonator

Series 6A, HC-49/U Crystal Unit

Series 6B, HC-49S/SS Crystal Unit

Series 6C, HC-49SMD/49SSMD Crystal Unit

Series 6P HC-M49SMD Crystal Unit

Series 6D, UM-1 Crystal Unit

Series 6Z, Cylinder Type Crystal Unit

Series 7S, SMD 1210 Seam Crystal Unit

Series 7Y, SMD 1612 Seam Crystal Unit

Series 7F, SMD 2016 Seam Crystal Unit

Series 7E, SMD 2520 Seam Crystal Unit

Series 7U, SMD 3225 Seam Crystal Unit

Series 7I, SMD 5032 Seam Crystal Unit

Series 6G, SMD 6035 Seam Crystal Unit

Series 6F, SMD 7050 Seam Crystal Unit

Series 7Z, SMD 2520 Glass Crystal Unit

Series 7V, SMD 3225 Glass Crystal Unit

Series 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Glass Crystal Unit

32.768KHz Tuning Fork Crystal

Series 7K, SMD 1610 Tuning Fork Crystal

Series 7R, SMD 2012 Tuning Fork Crystal

Series 7L, SMD 3215 Tuning Fork Crystal

Series 7M, SMD 7015 Tuning Fork Crystal

Series 6LC, SMD 8038 Tuning Fork Crystal

Series 6LB, SMD 206B Tuning Fork Crystal

Series 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Series 6K8, Through-Hole 3*8mm Tuning Fork Crystal

Crystal Oscillator

Series 8N, SMD 1612 Crystal Oscillator

Series 1N, SMD 2016 Crystal Oscillator

Series 2N, SMD 2520 Crystal Oscillator

Series 3N, SMD 3225 Crystal Oscillator

Series 7N, SMD 5032 Crystal Oscillator

Series 6N, SMD 7050 Crystal Oscillator

Series 9N, SMD 1490 Crystal Oscillator

Series 6MF, Thru-Hole Full Size Crystal Oscillator

Series 6MH, Thru-Hole Half Size Crystal Oscillator

Differential Oscillator

Series 3J, SMD 3225 LVPECL Output Oscillator

Series 3D, SMD 3225 LVDS Output Oscillator

Series 3H, SMD 3225 HCSL Output Oscillator

Series 5J, SMD 5032 LVPECL Output Oscillator

Series 5D, SMD 5032 LVDS Output Oscillator

Series 5H, SMD 5032 HCSL Output Oscillator

Series 7J, SMD 7050 LVPECL Output Oscillator

Series 7B, SMD 7050 LVDS Output Oscillator

Series 7H, SMD 7050 HCSL Output Oscillator

Series 9J, SMD 1490 LVPECL Output Oscillator

Series 9D, SMD 1490 LVDS Output Oscillator

OCXO

Series 1X, SMD 9*7 Size OCXO

Series 9X, SMD 14*9*5 Size OCXO

Series 5X, SMD 25*22*11 Size OCXO

Series 2X, Thru-hole OCXO

Series 3X, Thru-hole 20*20 OCXO

Series 9M, Thru-hole 25*25*12 OCXO

Series 6X,Thru-hole 36*27*12 Size OCXO

TCXO/VC-TCXO

Series 7X, SMD 2016 TCXO / VC-TCXO

Series 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sine Wave

Series 7T, SMD 3225 TCXO / VC-TCXO CMOS

Series 5T, SMD 5032 TCXO / VC-TCXO

Series 8T, SMD 7050 TCXO / VC-TCXO

Series 9T, SMD 1490 TCXO / VC-TCXO

Series 6T, Thru-hole TCXO / VC-TCXO

Series 1T SMD 1612 TCXO/VC-TCXO

Series 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Series 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Series 3S, SMD 3225 CMOS Output VCXO

Series 3P, SMD 3225 LVPECL Output VCXO

Series 5S, SMD 5032 CMOS Output VCXO

Series 5P, SMD 5032 LVPECL Output VCXO

Series 5V, SMD 5032 LVDS Output VCXO

Series 6S, SMD 7050 CMOS Output VCXO

Series 7P, SMD 7050 LVPECL Output VCXO

Series 6V, SMD 7050 LVDS Output VCXO

Series 9S, SMD 1490 CMOS Output VCXO

Series 9P, SMD 1490 LVPECL Output VCXO

Series 9X, SMD 1495 Size OCXO

Series 5X, SMD 252211 Size OCXO

Series 9M, Thru-hole 252512 OCXO

Series 6X,Thru-hole 362712 Size OCXO
