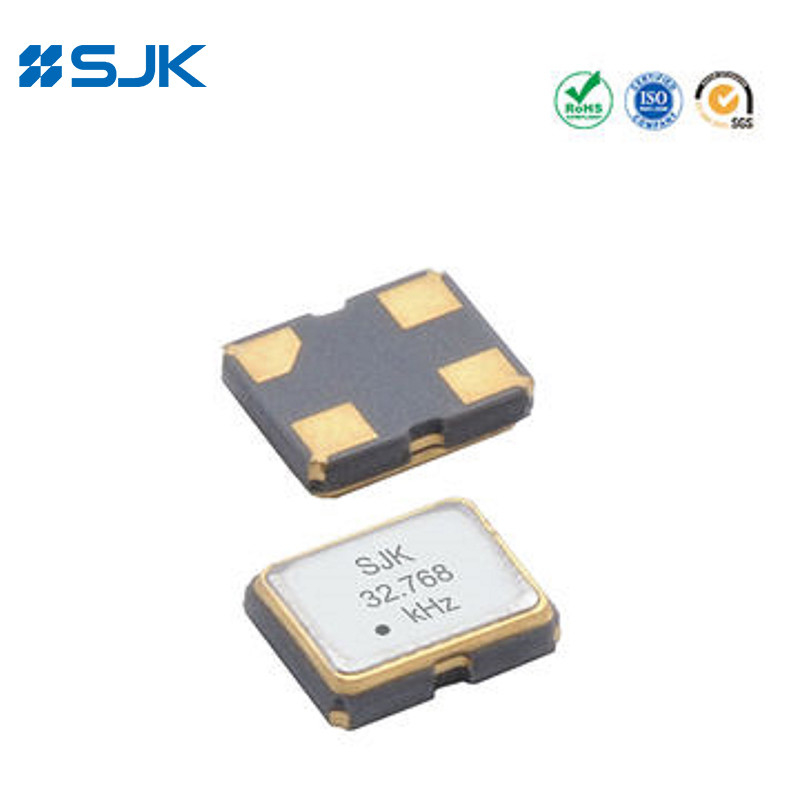

SMD 2520 RTC Oscillator With 32.768KHz Real Time Crystal Oscillator 1.8-3.3V CMOS Output ±25ppm

Features

2520 size, 0.8mm high, 32.768kHz SMD crystal oscillator

Operation voltage: 1.8~3.3V

Built-in ASIC enables reduction of current consumption

3-state function available

Automatic mounting and reflow soldering

Applications: Real-time Clock Application, DSC, Set-top Box, HDTV, GPS, Mobile Phone, etc

RoHS Compliant & Pb Free

Specifications

Type	2D Series 32.768kHz SMD Oscillator
Output Type	CMOS
Output Load	15pF, or specify
Nominal Frequency	32.768kHz
Supply Voltage	1.8~3.3V
Supply Current	70mA Max.
Frequency Stability	±20ppm, or specify
Operating Temperature	-40~+85℃
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	50ns Max.
Start-up Time	2ms Max.
Duty Cycle	45~55%
3-state Voltage Vol (Max.) /Voh (Min.)	0.3Vcc /0.7Vcc
Packing Unit	3000pcs./Reel

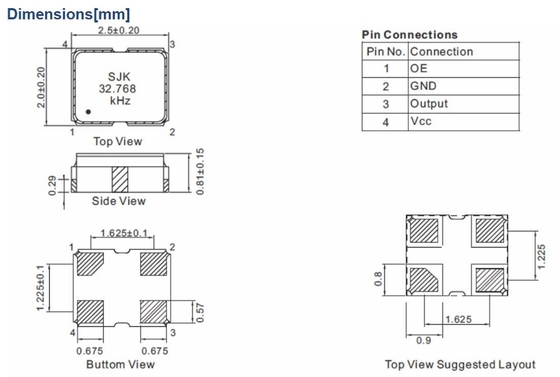

Dimensions [mm]

Captura de pantalla 2022-04-07 093311.jpg
