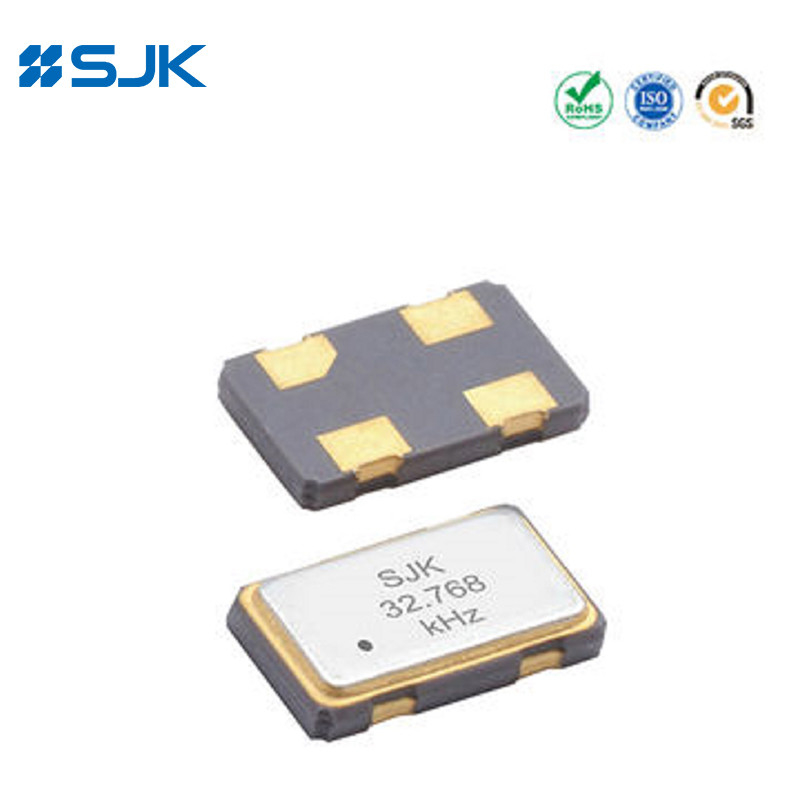

Name: SMD 5032 RTC Oscillator With CMOS Output 32.768KHz 1.8-3.3V ±25ppm Real Time Clock Application
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-5B
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-5B
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

5B Series 32.768kHz SMD Oscillator

Nominal Frequency:

32.768kHz

Supply Voltage:

1.8V~3.3V

Frequency Stability:

±25ppm

Size:

5.0*3.2*1.2mm

Output Type:

CMOS

Applications:

Real-time Clock Application, Car Navigation Systems, HDTV, DSC, Etc

Supply Ability:

70KKpcs/M

Highlight:

SMD 5032 RTC Oscillator

RTC Oscillator 3.3V

32.768 khz crystal oscillator SGS

Product Description

SMD 5032 RTC Oscillator with CMOS Output 32.768KHz 1.8-3.3V ±25ppm Real Time Clock Application

Features

Typical 5.0×3.2×1.2mm ceramic SMD package 32.768kHz crystal oscillator

Operation voltage: 1.8~3.3V

Built-in ASIC enables reduction of current consumption

3-state function available

Automatic mounting and reflow soldering

Use AT crystal as the resonator for good temperature performance

Applications: Real-time Clock Application, Car Navigation System, HDTV, DSC, etc

RoHS Compliant & Pb-Free

Specifications

Type	5B Series 32.768kHz SMD Oscillator
Output Type	CMOS
Output Load	15pF, or specify
Nominal Frequency	32.768kHz
Supply Voltage	1.8V, 2.5V, 3.3V
Supply Current	100μA Max.
Frequency Stability	±25ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	12ns Max.
Duty Cycle	45~55%
Start-up Time	5ms Max.
3-State Voltage Vol (Max.) /Voh (Min.)	0.3Vcc /0.7Vcc
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	1000pcs./Reel

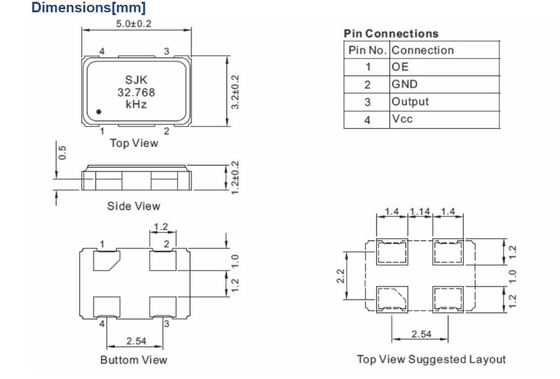

Dimensions [mm]

Captura de pantalla 2022-04-07 091908.jpg

SMD 5032 RTC Oscillator With CMOS Output 32.768KHz 1.8-3.3V ±25ppm Real Time Clock Application 1 +86-755-88352869

SMD 5032 RTC Oscillator With CMOS Output 32.768KHz 1.8-3.3V ±25ppm Real Time Clock Application 2 rita@q-crystal.com
