High Frequency Stability SMD 7050 RTC Oscillator With ±25ppm Frequency Stability

Brand Name:	SJK
Model Number:	7A
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1000pcs
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SJK

Certification:

SGS,ROHS,REACH

Model Number:

Model:

7A Series 32.768kHz SMD Oscillator

Nominal Frequency:

32.768kHz

Supply Voltage:

1.8~3.3V

Size:

7.0*5.0mm

Applications:

Real-time Clock, DSC, HDTV, Etc

Frequency Stability:

±20ppm

Output Type:

CMOS

Frequency Range:

1Hz To 50MHz

Package Type:

SMD

Output Load:

15pF

Start-Up Time:

10ms Max

Supply Voltage:

3.3V Or 5.0V

Aging:

±5ppm Per Year

Product Type:

RTC Oscillator

Storage Temperature Range:

-55°C To +125°C

Operating Temperature Range:

-40°C To +85°C

Package Size:

7050

Minimum Order Quantity:

1000pcs

Price:

negotiable

Packaging Details:

1000pcs

Delivery Time:

6-8weeks

Payment Terms:

T/T,

Supply Ability:

30Kpcs per Month

Highlight:

High Frequency RTC Oscillator

Clock RTC Oscillator

SMD 7050 32 khz crystal oscillator

Product Description

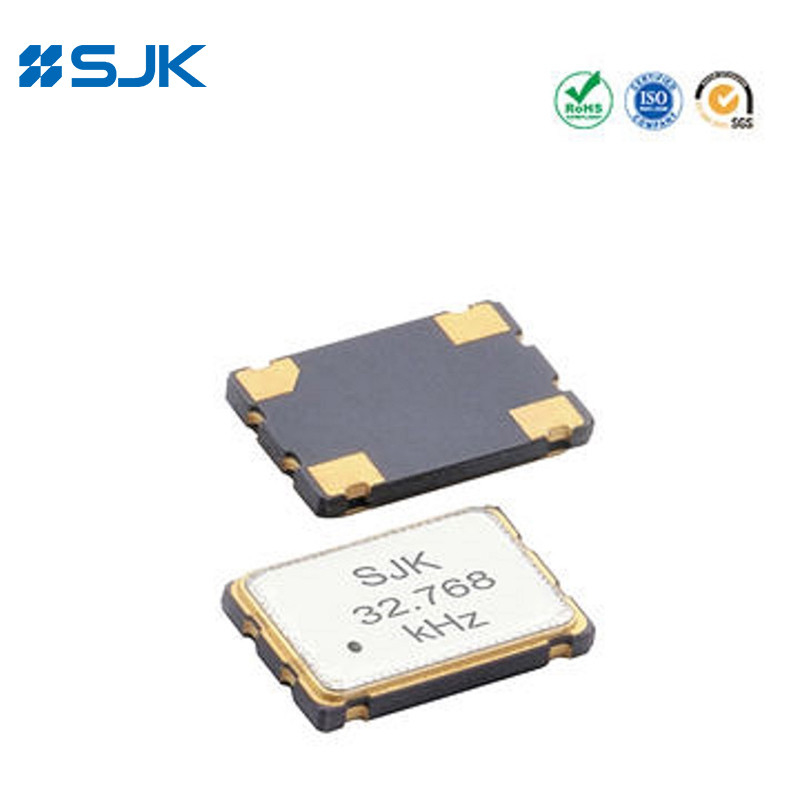

High Frequency Stability SMD 7050 RTC Oscillator with ±25ppm Frequency Stability

Features

Typical 7.0×5.0×1.3mm ceramic SMD package 32.768kHz crystal oscillator

Operation voltage: 1.8~3.3V

Built-in ASIC enables reduction of current consumption

3-state function available

Automatic mounting and reflow soldering

Use AT crystal as the resonator for good temperature performance

Applications: Real-time Clock Application, Car Navigation System, HDTV, DSC, etc

RoHS Compliant & Pb-Free

Specifications

Type	7A Series 32.768kHz SMD Oscillator
Output Type	CMOS
Output Load	15pF, or specify
Nominal Frequency	32.768kHz
Supply Voltage	1.8~3.3V
Supply Current	100μA Max.
Frequency Stability	±25ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	12ns Max.
Duty Cycle	45~55%
Start-up Time	5ms Max.
3-State Voltage Vol (Max.) /Voh (Min.)	0.3Vcc /0.7Vcc
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	1000pcs./Reel

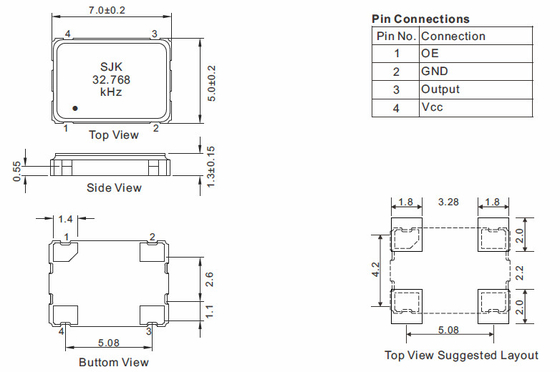

Dimensions [mm]

Captura de pantalla 2022-04-07 090038.jpg

PRODUCTS

- Crystal Resonator List
- Crystal Oscillator List
- Crystal Filter List
- Ceramic Device List
- SAW Device List
- MEMS Oscillator List

TECHNICAL

- Reliability Tests
- Green Product Information
- Tape and Reel
- Certificates
- Flow Chart
- Quality Policy

QUALITY

About SJK

- Company Profile
- History & Honors
- SJK Life

High Frequency Stability SMD 7050 RTC Oscillator With ±25ppm Frequency Stability 1 +86-755-88352869-815

High Frequency Stability SMD 7050 RTC Oscillator With ±25ppm Frequency Stability 2 jenny@q-crystal.com

Tags:

High Frequency RTC Oscillator

Clock RTC Oscillator

SMD 7050 32 khz crystal oscillator

2E Series 32.768KHz SMD2016 Crystal RTC Oscillator With CMOS Output For Wearable Devices And Mobile Phone

Get Best Price

video

SMD 5032 RTC Oscillator With CMOS Output 32.768KHz 1.8-3.3V ±25ppm Real Time Clock Application

Get Best Price

video

SMD 3225 RTC 32.768KHz Oscillator 1.8~3.3V ±25ppm CMOS Output Real-Time Clock Application

Get Best Price

video

SMD 2520 RTC Oscillator With 32.768KHz Real Time Crystal Oscillator 1.8-3.3V CMOS

Get Best Price

video

High Frequency Stability SMD 7050 RTC Oscillator With ±25ppm Frequency Stability

Get Best Price

Crystal Resonator

Series 6A, HC-49/U Crystal Unit

Series 6B, HC-49S/SS Crystal Unit

Series 6C, HC-49SMD/49SSMD Crystal Unit

Series 6P HC-M49SMD Crystal Unit

Series 6D, UM-1 Crystal Unit

Series 6Z, Cylinder Type Crystal Unit

Series 7S, SMD 1210 Seam Crystal Unit

Series 7Y, SMD 1612 Seam Crystal Unit

Series 7F, SMD 2016 Seam Crystal Unit

Series 7E, SMD 2520 Seam Crystal Unit

Series 7U, SMD 3225 Seam Crystal Unit

Series 7I, SMD 5032 Seam Crystal Unit

Series 6G, SMD 6035 Seam Crystal Unit

Series 6F, SMD 7050 Seam Crystal Unit

Series 7Z, SMD 2520 Glass Crystal Unit

Series 7V, SMD 3225 Glass Crystal Unit

Series 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Glass Crystal Unit

32.768KHz Tuning Fork Crystal

Series 7K, SMD 1610 Tuning Fork Crystal

Series 7R, SMD 2012 Tuning Fork Crystal

Series 7L, SMD 3215 Tuning Fork Crystal

Series 7M, SMD 7015 Tuning Fork Crystal

Series 6LC, SMD 8038 Tuning Fork Crystal

Series 6LB, SMD 206B Tuning Fork Crystal

Series 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Series 6K8, Through-Hole 3*8mm Tuning Fork Crystal

Crystal Oscillator

Series 8N, SMD 1612 Crystal Oscillator

Series 1N, SMD 2016 Crystal Oscillator

Series 2N, SMD 2520 Crystal Oscillator

Series 3N, SMD 3225 Crystal Oscillator

Series 7N, SMD 5032 Crystal Oscillator

Series 6N, SMD 7050 Crystal Oscillator

Series 9N, SMD 1490 Crystal Oscillator

Series 6MF, Thru-Hole Full Size Crystal Oscillator

Series 6MH, Thru-Hole Half Size Crystal Oscillator

Differential Oscillator

Series 3J, SMD 3225 LVPECL Output Oscillator

Series 3D, SMD 3225 LVDS Output Oscillator

Series 3H, SMD 3225 HCSL Output Oscillator

Series 5J, SMD 5032 LVPECL Output Oscillator

Series 5D, SMD 5032 LVDS Output Oscillator

Series 5H, SMD 5032 HCSL Output Oscillator

Series 7J, SMD 7050 LVPECL Output Oscillator

Series 7B, SMD 7050 LVDS Output Oscillator

Series 7H, SMD 7050 HCSL Output Oscillator

Series 9J, SMD 1490 LVPECL Output Oscillator

Series 9D, SMD 1490 LVDS Output Oscillator

OCXO

Series 1X, SMD 9*7 Size OCXO

Series 9X, SMD 14*9*5 Size OCXO

Series 5X, SMD 25*22*11 Size OCXO

Series 2X, Thru-hole OCXO

Series 3X, Thru-hole 20*20 OCXO

Series 9M, Thru-hole 25*25*12 OCXO

Series 6X,Thru-hole 36*27*12 Size OCXO

TCXO/VC-TCXO

Series 7X, SMD 2016 TCXO / VC-TCXO

Series 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sine Wave

Series 7T, SMD 3225 TCXO / VC-TCXO CMOS

Series 5T, SMD 5032 TCXO / VC-TCXO

Series 8T, SMD 7050 TCXO / VC-TCXO

Series 9T, SMD 1490 TCXO / VC-TCXO

Series 6T, Thru-hole TCXO / VC-TCXO

Series 1T SMD 1612 TCXO/VC-TCXO

Series 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Series 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Series 3S, SMD 3225 CMOS Output VCXO

Series 3P, SMD 3225 LVPECL Output VCXO

Series 5S, SMD 5032 CMOS Output VCXO

Series 5P, SMD 5032 LVPECL Output VCXO

Series 5V, SMD 5032 LVDS Output VCXO

Series 6S, SMD 7050 CMOS Output VCXO

Series 7P, SMD 7050 LVPECL Output VCXO

Series 6V, SMD 7050 LVDS Output VCXO

Series 9S, SMD 1490 CMOS Output VCXO

Series 9P, SMD 1490 LVPECL Output VCXO

Series 9X, SMD 1495 Size OCXO

Series 5X, SMD 252211 Size OCXO

Series 9M, Thru-hole 252512 OCXO

Series 6X,Thru-hole 362712 Size OCXO
