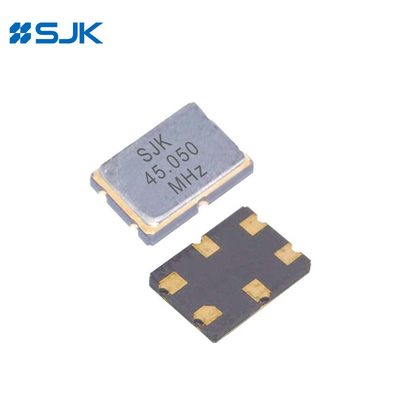

Name: 2-Pole Monolithic Crystal Filter 7050 Size 45mhz ±7.5khz For Radio Communications
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-45MQ15AA6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-45MQ15AA6
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

CF Series 2-Pole SMD Filter

Pole:

Nominal Frequency:

45MHz

Pass Bandwidth:

±7.5KHz Min./3dB

Insertion Loss:

2dB Max.

Size:

7.0*5.0*1.3mm

Applications:

Radio Communications, Cordless Phones, Cellular, Wireless Communications, Etc

Supply Ability:

70KKpcs/M

Highlight:

2 Pole monolithic crystal filter

monolithic crystal filter for Radio communications

45 mhz crystal filter 3dB

Product Description

2-Pole Crystal Filter 7050 Size 45MHz ±7.5KHz

Features

Typical 7.0×5.0×1.3mm, light weight and miniature SMD monolithic crystal filter

2 Pole function in a single package

Excellent guaranteed attenuation

Excellent shock and vibration resistance

Automatic mounting and reflow soldering

Applications: Radio communications, Mobile communications, Cordless phones, Cellular, Wireless communications, etc

RoHS Compliant / Pb-Free

Specifications

Type	CF Series 2-Pole SMD Monolithic Filter
Nominal Frequency	21.400MHz	21.700MHz	45.000MHz	45.000MHz
Pole	2	2	2	2
Overtone Order	Fundamental	Fundamental	Fundamental	Fundamental
Pass Bandwidth	±7.5KHz min./3dB	±7.5KHz min./3dB	±15KHz min./3dB	±15KHz min./3dB
Stop Bandwidth	±50KHz min./15dB	±28KHz min./18dB	±25KHz min./18dB	±60KHz min./15dB
Ripple	1.5dB	0.5dB	1.0dB	1.0dB
Insertion Loss	2.0dB max.	1.5dB max.	2.0dB max.	2.0dB max.
Guaranteed Attenuation	70dB min.	70dB min.	70dB min.	70dB min.
Terminating Impedance	1500Ω//2.5pF	1500Ω//2.5pF	560Ω//6.0pF	1200Ω//1.8pF
Operating Temperature	-20~+70℃, or specify
Packing Unit	1000pcs./reel

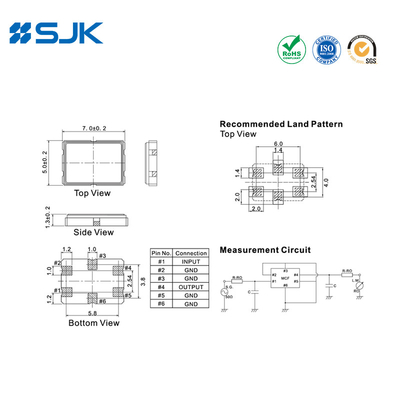

Dimensions [mm]
