Name: CF 4-Pole Crystal Filter 7050 45MHz Crystal Ladder Filter
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-45MQ15BA6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-45MQ15BA6
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

CF Series 4-Pole SMD Filter

Pole:

Nominal Frequency:

21.4MHz, 21.7MHz, 45MHz, Etc

Pass Bandwidth:

±7.5KHz Min./3dB

Insertion Loss:

2dB Max.

Size:

7.0*5.0*1.3mm

Applications:

Radio Communications, Cordless Phones, Wireless Communications, Etc

Supply Ability:

70KKpcs/M

Highlight:

45MHz crystal ladder filter

crystal ladder filter 7050

4 Pole filter crystal

Product Description

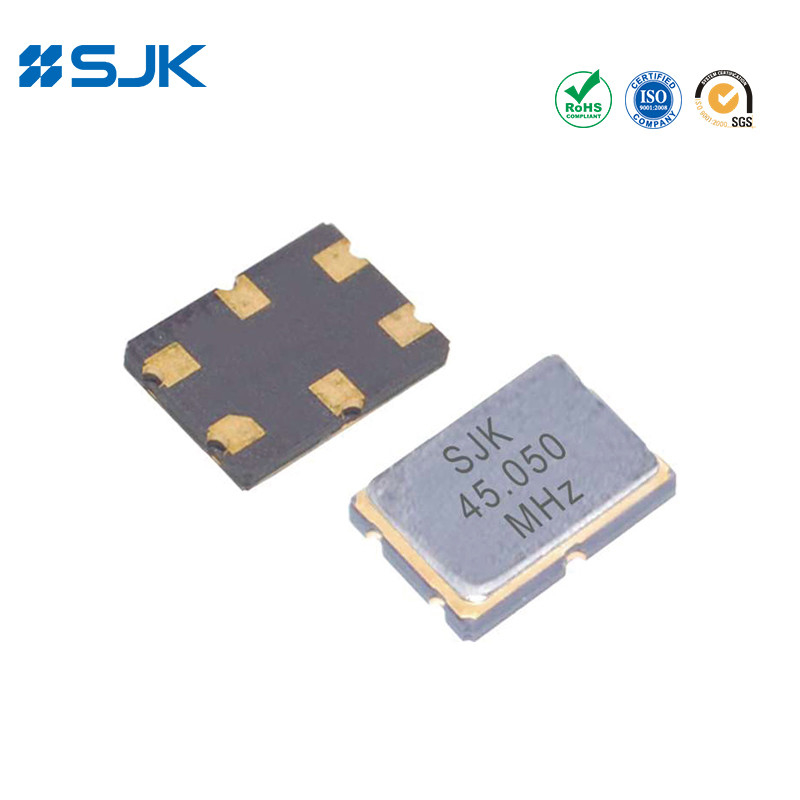

CF 4-Pole Crystal Filter 7050 45MHz

Features

Typical 7.0×5.0×1.3mm, light weight and miniature SMD monolithic crystal filter

4 Pole function in a single package

Excellent guaranteed attenuation

Excellent shock and vibration resistance

Automatic mounting and reflow soldering

Applications: Radio communications, Mobile communications, Cordless phones, Cellular, Wireless communications, etc

RoHS Compliant / Pb-Free

Specifications

Type	CF Series 4-Pole SMD Monolithic Filter
Nominal Frequency	38.850MHz	45.000MHz	49.950MHz	51.650MHz
Pole	4	4	4	4
Overtone Order	Fundamental	Fundamental	Fundamental	Fundamental
Pass Bandwidth	±3.75KHz min./3dB	±7.5KHz min./3dB	±15KHz min./3dB	±5KHz min./3dB
Stop Bandwidth	±15KHz min./35dB	±22KHz min./25dB	±25KHz min./35dB	±22KHz min./30dB
Ripple	1dB max.	1dB max.	1dB max.	1dB max.
Insertion Loss	4.0dB max.	4.0dB max.	4.0dB max.	4.0dB max.
Guaranteed Attenuation	80dB min.	80dB min.	80dB min.	80dB min.
Terminating Impedance	560Ω//5pF	600Ω//2pF	400Ω//4.5pF	400Ω//2.5pF
Operating Temperature	-20~+70℃, or specify
Packing Unit	1000pcs./reel

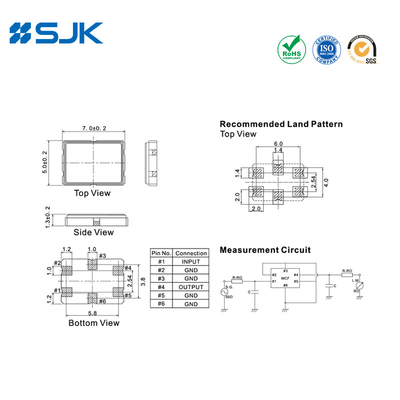

Dimensions [mm]

CF 4-Pole Crystal Filter 7050 45MHz Crystal Ladder Filter 1 +86-755-88352869

CF 4-Pole Crystal Filter 7050 45MHz Crystal Ladder Filter 2 rita@q-crystal.com

Tags:

Products Details

Home > Products >

MCF (Monolithic Crystal Filter )

CF 4-Pole Crystal Filter 7050 45MHz Crystal Ladder Filter

All Category

CF 4-Pole Crystal Filter 7050 45MHz Crystal Ladder Filter

Brand Name:	SJK
Model Number:	SJK-45MQ15BA6
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SJK

Certification:

SGS, RoHS, REACH

Model Number:

SJK-45MQ15BA6

Model:

CF Series 4-Pole SMD Filter

Pole:

Nominal Frequency:

21.4MHz, 21.7MHz, 45MHz, Etc

Pass Bandwidth:

±7.5KHz Min./3dB

Insertion Loss:

2dB Max.

Size:

7.0*5.0*1.3mm

Applications:

Radio Communications, Cordless Phones, Wireless Communications, Etc

Minimum Order Quantity:

1000pcs

Price:

negotiable

Packaging Details:

1Kpcs/Reel

Delivery Time:

4-6 wks

Payment Terms:

T/T

Supply Ability:

70KKpcs/M

Highlight:

45MHz crystal ladder filter

crystal ladder filter 7050

4 Pole filter crystal

Product Description

CF 4-Pole Crystal Filter 7050 45MHz

Features

Typical 7.0×5.0×1.3mm, light weight and miniature SMD monolithic crystal filter

4 Pole function in a single package

Excellent guaranteed attenuation

Excellent shock and vibration resistance

Automatic mounting and reflow soldering

Applications: Radio communications, Mobile communications, Cordless phones, Cellular, Wireless communications, etc

RoHS Compliant / Pb-Free

Specifications

Type	CF Series 4-Pole SMD Monolithic Filter
Nominal Frequency	38.850MHz	45.000MHz	49.950MHz	51.650MHz
Pole	4	4	4	4
Overtone Order	Fundamental	Fundamental	Fundamental	Fundamental
Pass Bandwidth	±3.75KHz min./3dB	±7.5KHz min./3dB	±15KHz min./3dB	±5KHz min./3dB
Stop Bandwidth	±15KHz min./35dB	±22KHz min./25dB	±25KHz min./35dB	±22KHz min./30dB
Ripple	1dB max.	1dB max.	1dB max.	1dB max.
Insertion Loss	4.0dB max.	4.0dB max.	4.0dB max.	4.0dB max.
Guaranteed Attenuation	80dB min.	80dB min.	80dB min.	80dB min.
Terminating Impedance	560Ω//5pF	600Ω//2pF	400Ω//4.5pF	400Ω//2.5pF
Operating Temperature	-20~+70℃, or specify
Packing Unit	1000pcs./reel

Dimensions [mm]

CF 4-Pole Crystal Filter 7050 45MHz Crystal Ladder Filter 1 +86-755-88352869

CF 4-Pole Crystal Filter 7050 45MHz Crystal Ladder Filter 2 rita@q-crystal.com
