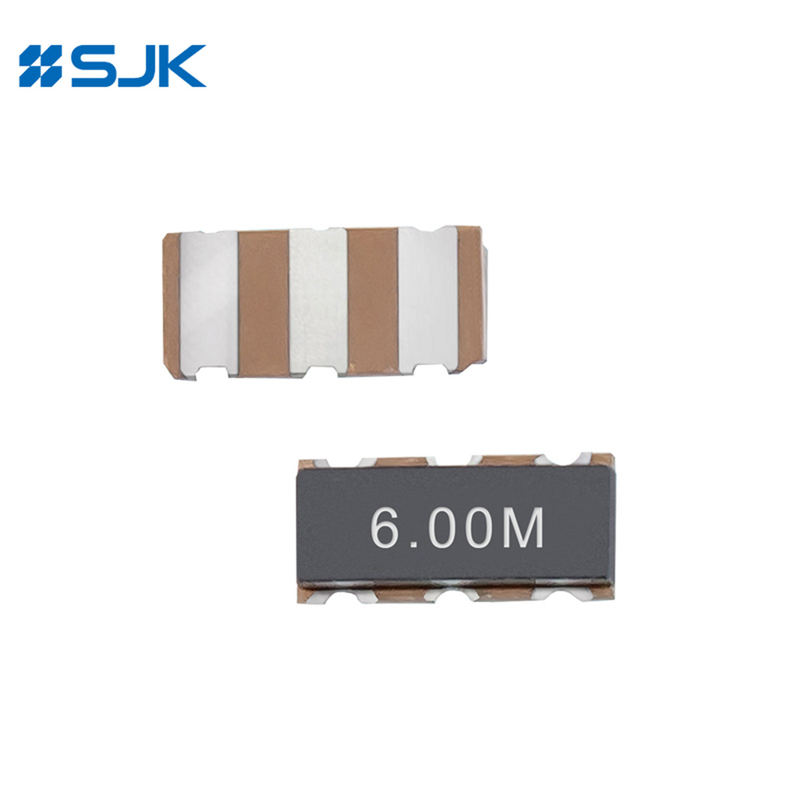

Name: SMD ZTT Ceramic Resonator 6.00MHz ±0.3%
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: ZTTCC6.00MG
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	ZTTCC6.00MG
MOQ:	3000pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

ZTT Series SMD Ceramic Resonator (ZTTCC, ZTTCR, ZTTCS, And More)

Frequency Range:

2~60MHz

Frequency Stability:

±0.3%

Size:

4.7*4.1*1.2mm, 3.2*1.3*1.2mm And More

Applications:

Receiver

Alternative Brand:

Murata

Supply Ability:

70KKpcs/M

Highlight:

SMD ZTT Ceramic Resonator

Ceramic Resonator 6.00MHz

ceramic resonator circuit 6.00MHz

Product Description

SMD ZTT Ceramic Resonator 6.00MHz ±0.3%

Features

Surface Mount Package Ceramic Resonator

Frequency Range from 2MHz to 60MHz

Great Temperature Stability (±0.3%)

Automatic Mounting and Reflow Soldering

Cost-Effective

Applications: Security, Consumer device, PC, Receiver, Radio, Telecommunications, TV, Legacy PCB

RoHS Compliant

Specifications

Part Number	Frequency Range (MHz)	Frequency Accuracy (at 25ºC)	Frequency Stability	Operating Temp.	Frequency Aging
ZTTCC...MG	2.00~8.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCR...MG	4.00~8.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCE...MG	8.00~12.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCS...MT	6.00~13.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCV...MT	8.00~13.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCS...MX	13.00~60.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCV...MX	16.00~60.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCW...MX	20.00~60.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCZ...MX	24.00~45.00	±0.5%	±0.3%	-25~+80℃	±0.3%
ZTTCP...MG	2.00~12.00	±0.5%	±0.3%	-25~+80℃	±0.3%

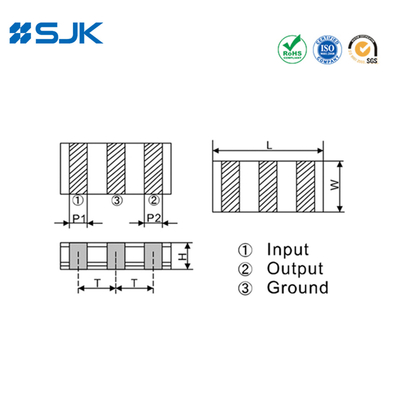

Dimensions [mm]

ZTT-SMD-Dimensions

Size Code	Size [mm]
Part Number	L	W	H	P1	P2	T
ZTTCC...MG	7.4	3.4	1.8 Max.	1.2	1.2	2.5
ZTTCR...MG	4.5	2.0	1.2 Max.	0.8	0.8	1.5
ZTTCE...MG	3.2	1.3	1.0 Max.	0.4	0.4	1.2
ZTTCS...MT/MX	4.7	4.1	1.4 Max.	1.0	0.8	2.0
ZTTCV...MT/MX	3.7	3.1	1.4 Max.	0.9	0.7	1.0
ZTTCW...MX	2.5	2.0	1.2 Max.	0.5	0.4	1.0
ZTTCZ...MX	2.2	1.8	1.2 Max.	0.4	0.5	0.9
ZTTCP...MG	6.0	3.0	1.8 Max.	1.2	1.2	2.5

Torelance: 0.2
