Name: LT DIP Type Ceramic Filter 4.5MHz 3 PINS LT4.5M
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-LT4.5MHz
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-LT4.5MHz
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

LT Series Ceramic Filter

Frequency:

4.5MHz,5.5MHz,6.0MHz,6.5MHz

Size:

10*10*5.0 Mm

Applications:

TV,VCR Stage

Supply Ability:

30Kpcs per Month

Highlight:

Ceramic Filter LT4.5M

LT DIP Type Ceramic Filter

4.5MHz Filter 3 PINS

Product Description

LT DIP Type Ceramic Filter 4.5MHz 3 PINS LT4.5M

Features

Excellent spurious suppression characteristics within video signal band

Available 4 pass bandwidth variation to meet various requests

Low profile (H=10.0mm Max.)

Applications: TV, VCR Stage, etc

RoHS Compliant

Specifications

Part Number	Center Frequency (MHz)	3dB Band Width (kHz) Min	20dB Band Width (kHz) Max	Insertion Loss (dB) Min	Spurious Attenuation (9~12MHz) (dB) Min.	Input-Output Impedance (Ω)
Part Number	Center Frequency (MHz)	3dB Band Width (kHz) Min	20dB Band Width (kHz) Max	Insertion Loss (dB) Min	Spurious Attenuation (9~12MHz) (dB) Min.	Input-Output Impedance (Ω)
LT4.5MB	4.500	fo±60	530	6.0	20(4.5±1MHz)	1000
LT5.5MB	5.500	fo±75	550	6.0	25(5.5±1MHz)	600
LT6.0MB	6.000	fo±80	600	6.0	25(6.0±1MHz)	470
LT6.5MB	6.500	fo±80	630	6.0	25(6.5±1MHz)	470

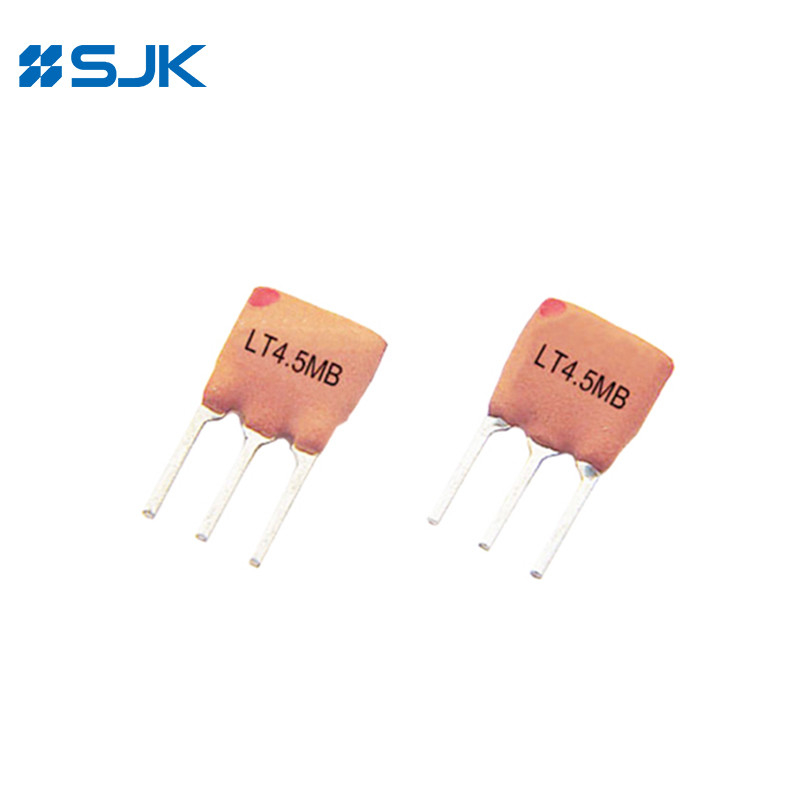

LT DIP Type Ceramic Filter 4.5MHz 3 PINS LT4.5M 1 +86-755-88352869

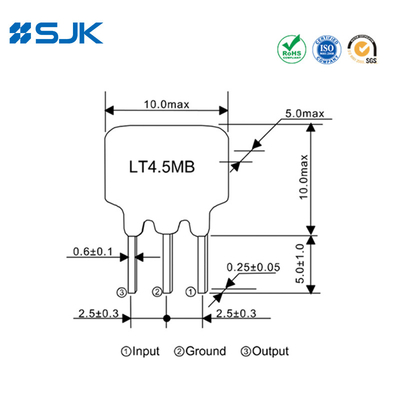

LT DIP Type Ceramic Filter 4.5MHz 3 PINS LT4.5M 2 sjk@q-crystal.com
