Name: LT450W Ceramic Filter With 450KHz 5Pins
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: LT455EW
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	LT455EW
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

LT450W / LT455W Series Ceramic Filters

Center Frequency:

450KHz, 455KHz

Size:

11*7*8 Mm

Applications:

Radio, Telecommunications

Pins:

3+2 Pins Or 4+1 Pins

Type:

Dip Type

Supply Ability:

30Kpcs per Month

Highlight:

LT450W Ceramic Filter

450KHz Ceramic Filter

455 khz filter REACH

Product Description

LT450W Ceramic Filter With 450KHz 5Pins

Features

Input/Output impedance: 1000Ω~2000Ω

High selective ceramic filters

Center frequency: 450KHz, 455KHz

Low insertion loss: 4dB, 6dB Max

Passband ripple: 2dB Max

Applications: Radio, Telecommunications, Automotive and more

RoHS Compliant

Specifications

LT450W Series

Part Number	Center Frequency (kHz)	Insertion Loss (dB) Max	Pass Band Ripple (dB) Max.	6dB Bandwidth (kHz) Min	50dB Bandwidth (kHz) Min	Stop Band Att. ±100KHz (dB) Min	Input-Output Impedance (Ω)
LT450BW	450±2.0	4	2	±15	±30	40	1500
LT450CW	450±2.0	4	2	±12.5	±24	40	1500
LT450DW	450±1.5	4	2	±10	±20	40	1500
LT450EW	450±1.5	6	2	±7.5	±15	40	1500
LT450FW	450±1.5	6	2	±6	±12.5	40	2000
LT450GW	450±1.5	6	2	±4.5	±10	40	2000
LT450HW	450±1.0	6	2	±3	±9	40	2000
LT450IW	450±1.0	6	2	±2	±7.5	40	2000
LT450HTW	450±1.0	6	2	±3	±9	60	2000

LT455W Series

Part Number	Center Frequency (kHz)	Insertion Loss (dB) Max	Pass Band Ripple (dB) Max.	6dB Bandwidth (kHz) Min	50dB Bandwidth (kHz) Min	Stop Band Att. ±100KHz (dB) Min	Input-Output Impedance (Ω)
LT455BW	455±2.0	4	2	±15	±30	40	1500
LT455CW	455±2.0	4	2	±12.5	±24	40	1500
LT455DW	455±1.5	4	2	±10	±20	40	1500
LT455EW	455±1.5	6	2	±7.5	±15	40	1500
LT455FW	455±1.5	6	2	±6	±12.5	40	2000
LT455GW	455±1.5	6	2	±4.5	±10	40	2000
LT455HW	455±1.0	6	2	±3	±9	40	2000
LT455IW	455±1.0	6	2	±2	±7.5	40	2000
LT455HTW	455±1.0	6	2	±3	±9	60	2000

LT W.jpg

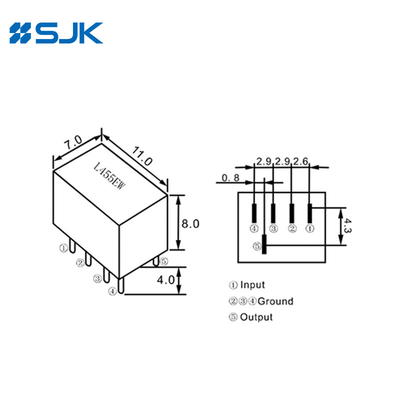

LT450W Ceramic Filter With 450KHz 5Pins 1 +86-755-88352869

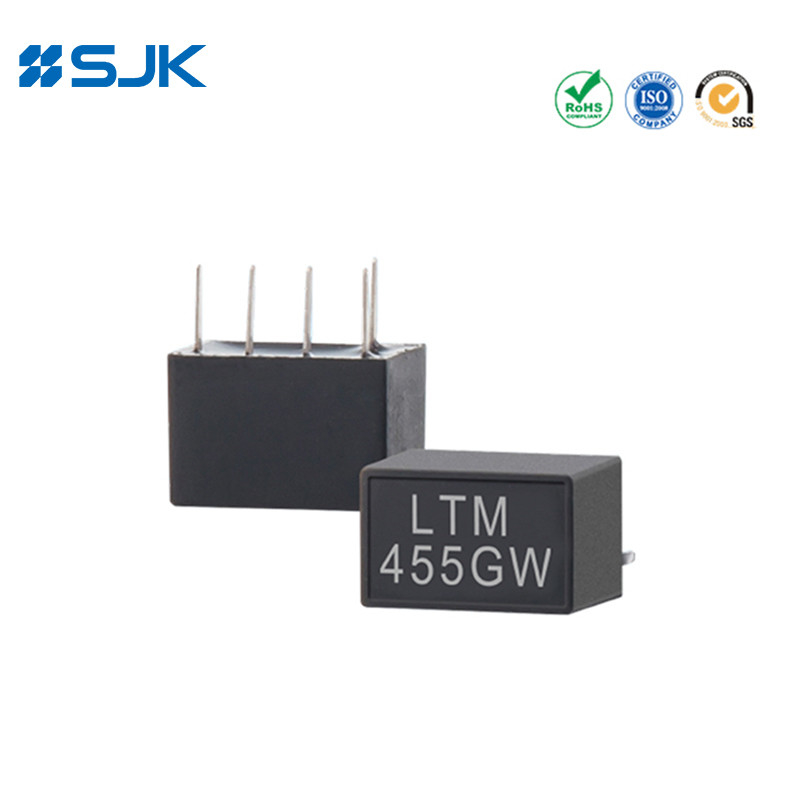

LT450W Ceramic Filter With 450KHz 5Pins 2 rita@q-crystal.com
