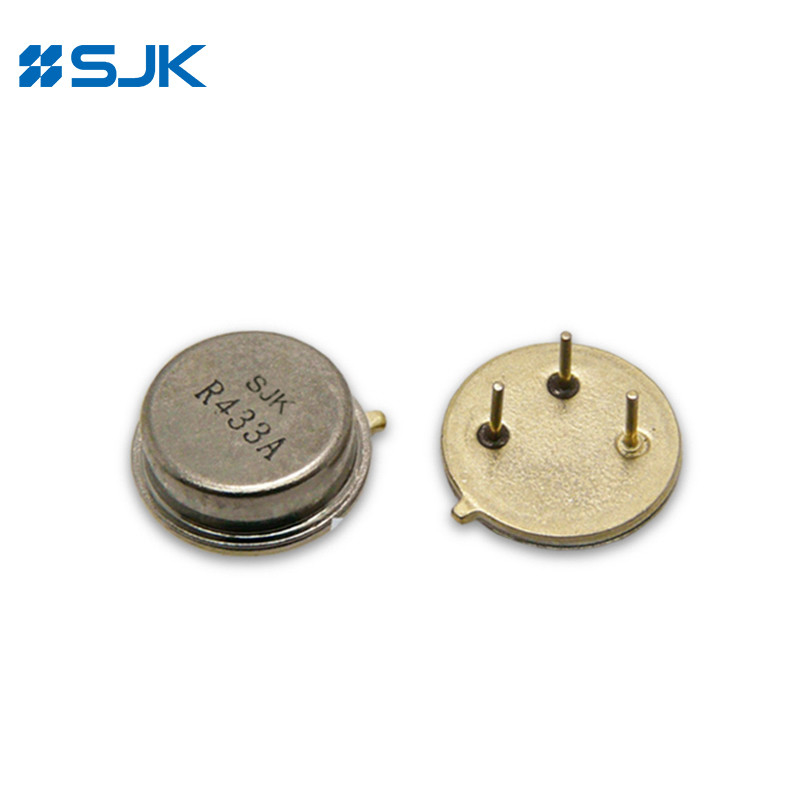

Name: TO-39 DIP Saw Resonator 3 Pin With Frequency Tolerance Of ±75 KHz 433.92MHz
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: TO-39
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	TO-39
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1000pcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS,ROHS,REACH

Model:

TO-39 Series SAW Resonator

Frequency:

303.825MHz~868.35MHz

Frequency Tolerance:

+/- 0.5%

Insertion Loss:

2.1dB Max.

Size:

9.2x9.2x3.5mm

Type:

DIP

Drive Level:

100 MW

Storage Temperature Range:

-55°C To +125°C

Equivalent Series Resistance:

100 Ohm

Operating Temperature Range:

-40°C To +85°C

Aging:

+/- 3 Ppm/year

Supply Ability:

30Kpcs per Month

Highlight:

TO-39 saw resonator 433.92 mhz

saw resonator 433.92 mhz 100 ohm

303.825MHz DIP Resonator

Product Description

TO-39 DIP Saw Resonator 3 Pin with Frequency Tolerance of ±75 kHz 433.92MHz

Features

1-Port SAW Resonator

Metal Case for TO-39

Electrostatic Sensitive Device (ESD)

Package Size 9.2x9.2x3.5 mm

Package Code TO-39

Applications: Remote Control, Security, Alarm, etc.

RoHS Compliant & Pb Free

Specifications

P/N	Center Frequency (MHz)	Frequency Tolerance (kHz)	Insertion Loss (dB)	Package Code
R303.825	303.825	±30 /±75	1.3	TO-39
R303.875	303.875	±30 /±75	1.2	TO-39
R310	310.000	±30 /±75	1.5	TO-39
R315	315.000	±30 /±75	1.5	TO-39
R316.8	316.800	±30 /±75	1.2	TO-39
R330	330.000	±30 /±75	1.6	TO-39
R350	350.000	±30 /±75	1.3	TO-39
R360	360.000	±30 /±75	1.4	TO-39
R370	370.000	±30 /±75	1.5	TO-39
R390	390.000	±30 /±75	1.5	TO-39
R407.3	407.300	±30 /±75	1.3	TO-39
R418	418.000	±30 /±75	1.4	TO-39
R433	433.920	±30 /±75	1.9	TO-39
R868.35	868.350	±75 /±150	2.1	TO-39

For other frequencies and specifications, please contact our sales department.

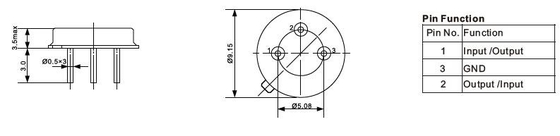

Dimensions [mm]

TO-39-SAW-Resonator-Dimensions
