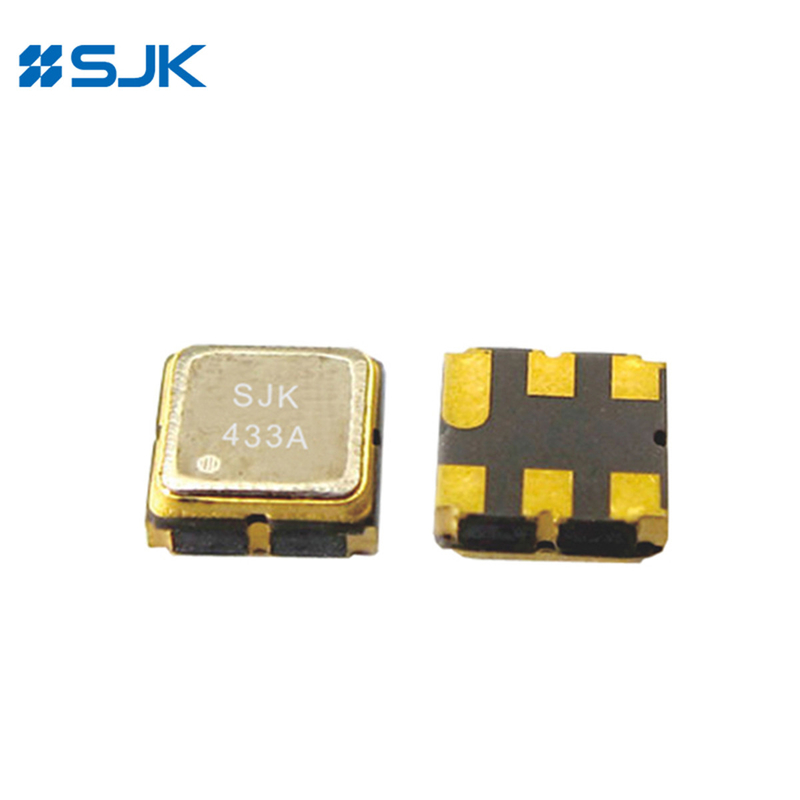

Name: SMD DCC6 SAW Resonator 3.8 X 3.8mm For SMT Technology
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-SR433.92DCC6-A6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-SR433.92DCC6-A6
MOQ:	3000pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

DCC6 SAW Resonator

Frequency:

315MHz~868.35MHz

Frequency Tolerance:

±75kHz

Insertion Loss:

1.8dB Max.

Size:

3.8*3.8*1.5mm

Package:

DCC6

Supply Ability:

30Kpcs per Month

Highlight:

SMD DCC6 Saw Resonator

Saw Resonator 3.8 x 3.8mm

custom saw filter For SMT Technology

Product Description

SMD DCC6 SAW Resonator 3.8*3.8mm For SMT Technology

Features

1-Port SAW Resonator

Ceramic Package for Surface Mounted Technology (SMT)

Electrostatic Sensitive Device (ESD)

Package Size with 3.8*3.8*1.5mm

Package Type DCC6

Applications: Remote Control, Security, Alarm, etc.

RoHS Compliant & Pb Free

Specifications

P/N	Center Frequency (MHz)	Frequency Tolerance (kHz)	Insertion Loss (dB)	Package Type
R315	315.00	±30 / ±75	1.5	DCC6
R385	385.00	±30 / ±75	1.8	DCC6
R418	418.00	±30 / ±75	1.6	DCC6
R433	433.92	±30 / ±75	1.5	DCC6
R868	868.35	±75 / ±150	1.0	DCC6

For other frequencies and specifications, please contact our sales department.

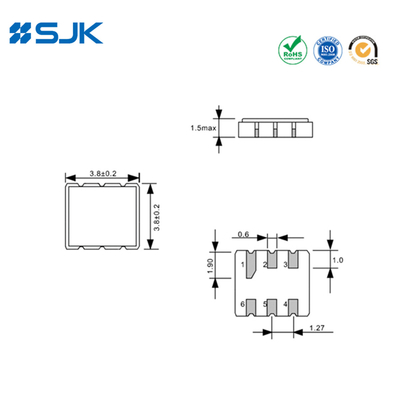

Dimensions [mm]

DCC6-SAW-Resonator-Dimensions
