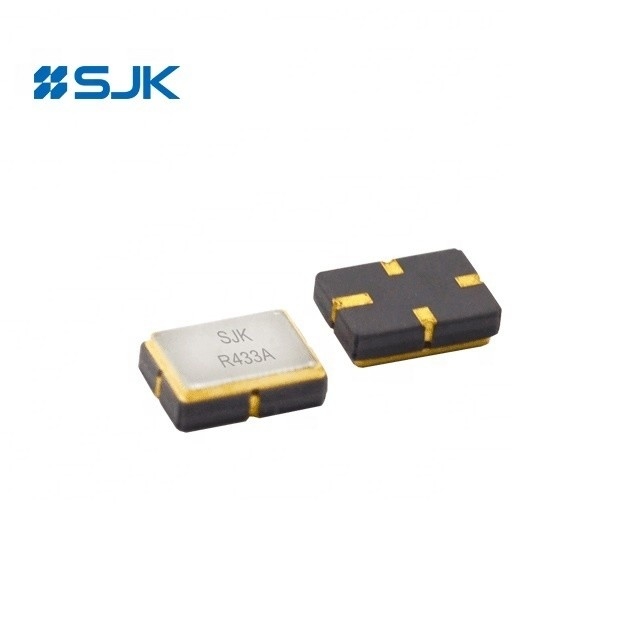

Name: SMD QCC4A SAW Resonator 5.0 X 3.5 For Remote Control Security Alarm RoHS Compliant Pb Free 315MHz To 868MHz
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: QCC4A
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	QCC4A
MOQ:	3000
Price:	USD
Packaging Details:	3000pcs
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS,ROHS,REACH

Model:

QCC4A SAW Resonator

Frequency:

315~868.35MHz

Frequency Tolerance:

±50 KHz

Insertion Loss:

1.5 DB

Size:

5.0*3.5 Mm

Type:

SAW Resonator

Storage Temperature Range:

-40°C To +85°C

Operating Temperature Range:

-20°C To +80°C

Frequency Stability:

±75 KHz

Supply Voltage:

3.3 V

Bandwidth:

200 KHz

Package Type:

SMD

Supply Ability:

30Kpcs per Month

Highlight:

saw resonator 433.92 mhz 5.0 x 3.5

saw resonator 433.92 mhz QCC4A

Saw Resonator 315MHz

Product Description

SMD QCC4A SAW Resonator 5.0*3.5 For Remote Control Security Alarm RoHS Compliant Pb Free 315MHz To 868MHz

Features

1-Port SAW Resonator

Ceramic Package for Surface Mounted Technology (SMT)

Electrostatic Sensitive Device (ESD)

Package Size with 5.0×3.5×1.5mm

Package Type QCC4A

Applications: Remote Control, Security, Alarm, etc.

RoHS Compliant & Pb Free

Specifications

P/N	Center Frequency (MHz)	Frequency Tolerance (kHz)	Insertion Loss (dB)	Package Type
R315	315.00	±30 / ±75	1.2	QCC4A
R318	318.00	±30 / ±75	1.2	QCC4A
R346.8	346.80	±30 / ±75	1.2	QCC4A
R370	370.00	±30 / ±75	1.4	QCC4A
R423.22	423.22	±30 / ±75	1.4	QCC4A
R433.42	433.42	±30 / ±75	1.1	QCC4A
R433	433.92	±30 / ±75	1.3	QCC4A
R434.42	434.42	±30 / ±75	1.4	QCC4A
R868	868.35	±75 / ±150	1.0	QCC4A

For other frequencies and specifications, please contact our sales department.

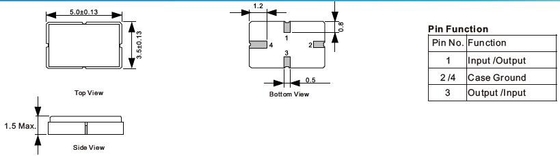

Dimensions [mm]

Captura de pantalla 2023-10-11 172411.jpg
